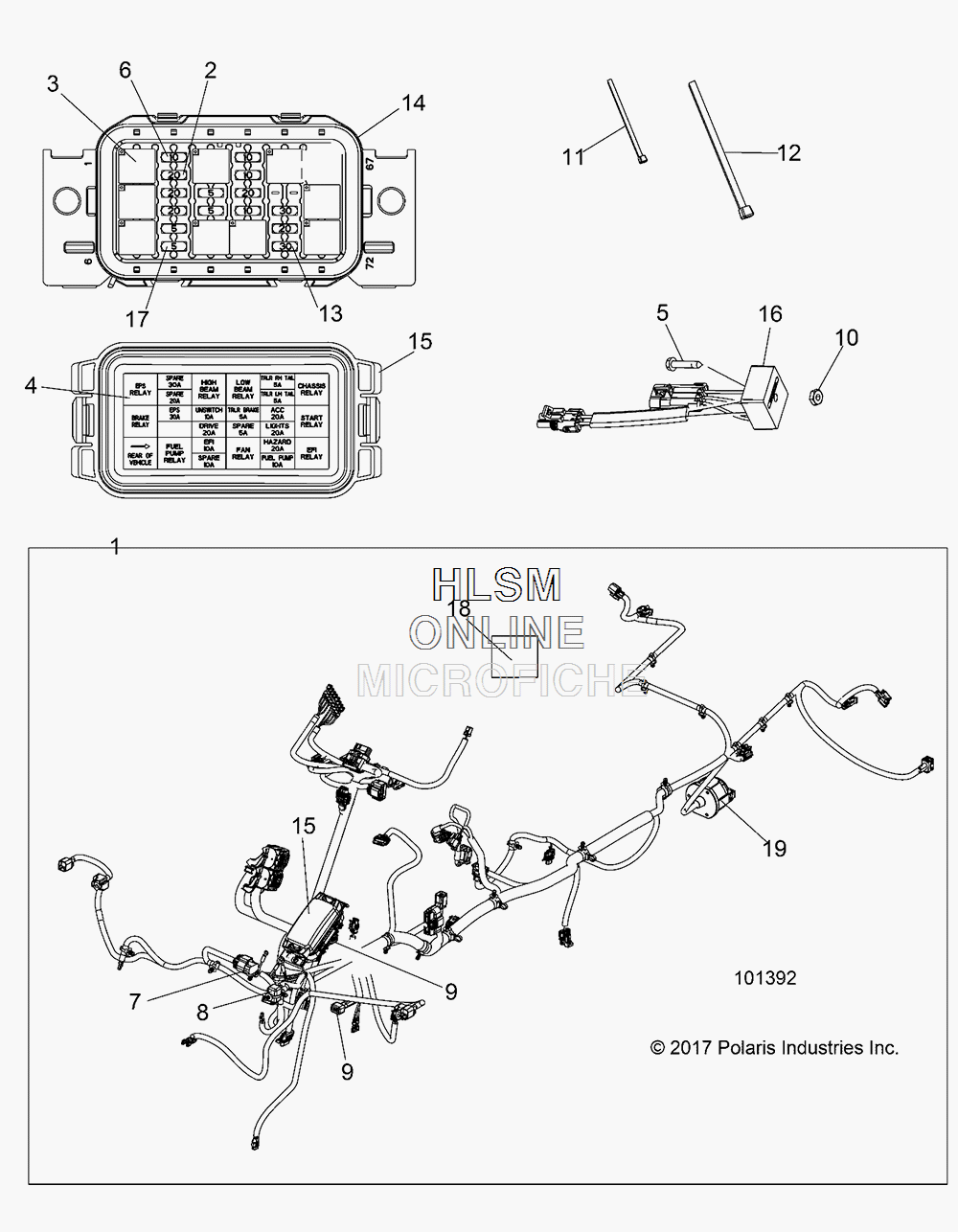

WIRE HARNESS для Polaris SPORTSMAN 570 X2 EPS TRACTOR (WHITE LIGHTING) [A18SWS57E3] (EUROPE) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2414018 HARNESS-MAIN,570 X2/UTE TRCTR [INCL COVER 7-9,15,18-19]
    HARNESS-MAIN,570 X2/UTE TRCTR [INCL COVER 7-9,15,18-19]
  • 2
    2434017 FUSE, 20 AMP
    FUSE, 20 AMP
  • 3
    4011283 RELAY
    RELAY
  • 4
    7186744 LABEL, FUSE BOX
    LABEL, FUSE BOX
  • 5
    7518418 SCREW
    SCREW
  • 6
    2434016 FUSE, 10 AMP
    FUSE, 10 AMP
  • 7
    4012170 CLIP, DIAGNOSTIC
    CLIP, DIAGNOSTIC
  • 8
    2411086 BREAKER-CIRCUIT,15 AMP,SEALED
    BREAKER-CIRCUIT,15 AMP,SEALED
  • 9
    2410000 DIODE, 6 AMP
    DIODE, 6 AMP
  • 10
    7542122 NUT
    NUT
  • 11
    7080138 CABLE TIE
    CABLE TIE
  • 12
    7080761 STRAP-PANDUIT,14 IN
    STRAP-PANDUIT,14 IN
  • 13
    2434015 FUSE, 30 AMP
    FUSE, 30 AMP
  • 14
    4015058 FUSEBOX
    FUSEBOX
  • 15
    4014047 COVER, FUSEBOX
    COVER, FUSEBOX
  • 16
    4012829 RELAY, 9A, LONG LD
    RELAY, 9A, LONG LD
  • 17
    4011652 FUSE, 5 AMP
    FUSE, 5 AMP
  • 18
    4016237 SWITCH, KI OTTO
    SWITCH, KI OTTO
  • 19
    4012558 CONNECTOR, & WAY
    CONNECTOR, & WAY
