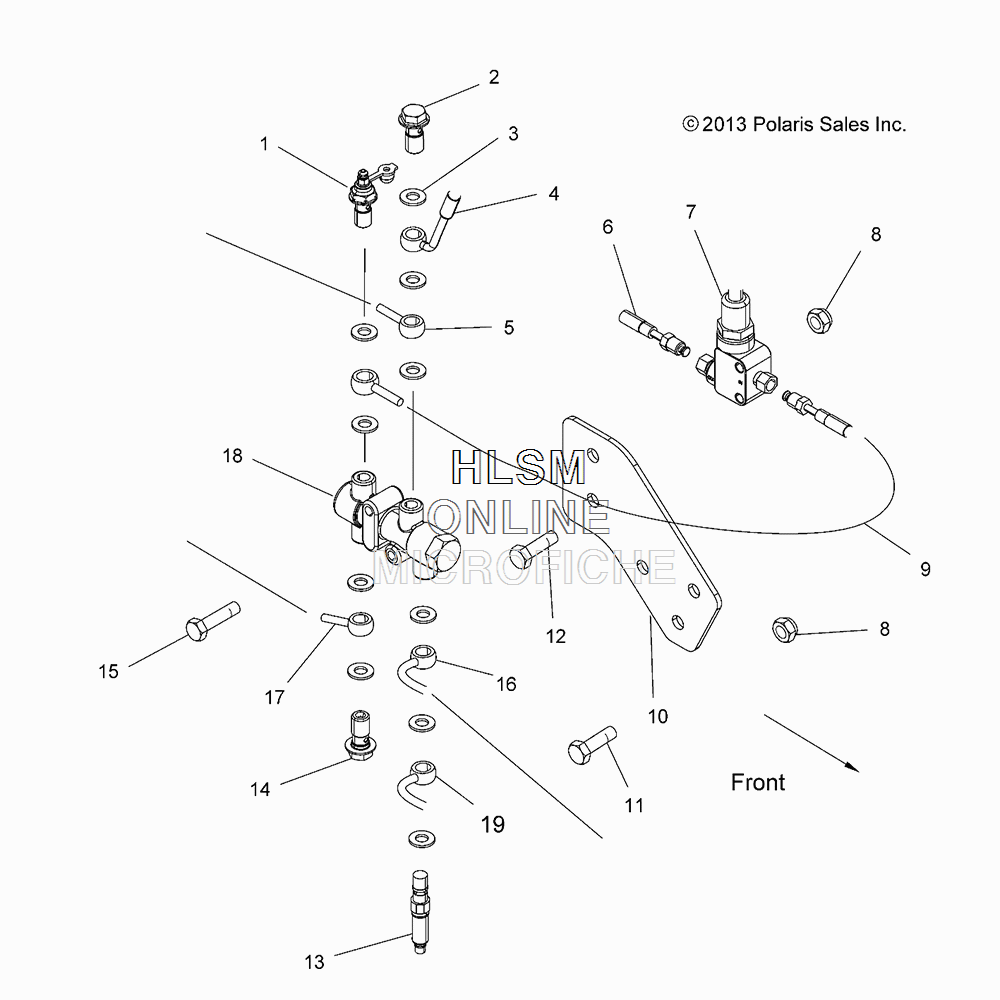

BRAKE - VALVE SYSTEM для Polaris SPORTSMAN 570 X2 EPS EU (SAGE BRUSH GREEN METALLIC) [A18SWE57F1] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1911112 BOLT, BANJO W/BLEEDER10MMX1.25
    BOLT, BANJO W/BLEEDER10MMX1.25
  • 2
    1911194 BOLT, BANJO, DOUBLE
    BOLT, BANJO, DOUBLE
  • 3
    5413212 SEAL
    SEAL
  • 4
    1912207 LINE, BRAKE, 28, 45B, 20B, 330°
    LINE, BRAKE, 28, 45B, 20B, 330°
  • 5
    1912197 LINE, BRAKE, REAR, AUX., 70R, 70B, 70B°
    LINE, BRAKE, REAR, AUX., 70R, 70B, 70B°
  • 6
    1912198 LINE, BRAKE, REAR, SERVICE, 90F, 45B, 45B°
    LINE, BRAKE, REAR, SERVICE, 90F, 45B, 45B°
  • 7
    1911109 VALVE, REDUCING
    VALVE, REDUCING
  • 8
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 9
    1911200 LINE, J/B TO P/VALVE
    LINE, J/B TO P/VALVE
  • 10
    5258389-329 PLATE, BRAKE VALVE, BLACK
    PLATE, BRAKE VALVE, BLACK
  • 11
    7512126 BOLT
    BOLT
  • 12
    7512130 SCREW
    SCREW
  • 13
    4014262 SWITCH
    SWITCH
  • 14
    1910958 BOLT, BANJO10MMX1.25
    BOLT, BANJO10MMX1.25
  • 15
    7517451 SCREW
    SCREW
  • 16
    1912208 LINE, FRONT BRAKE, 36.5, 20SB, 45B, 135°
    LINE, FRONT BRAKE, 36.5, 20SB, 45B, 135°
  • 17
    1912196 LINE, BRAKE, FOOT, 62, 45B, 45B, 315°
    LINE, BRAKE, FOOT, 62, 45B, 45B, 315°
  • 18
    1911185 BLOCK, DISTRIBUTION
    BLOCK, DISTRIBUTION
  • 19
    1912320 LINE, BRAKE, FL, 26, 20B, 45B, 0°
    LINE, BRAKE, FL, 26, 20B, 45B, 0°
