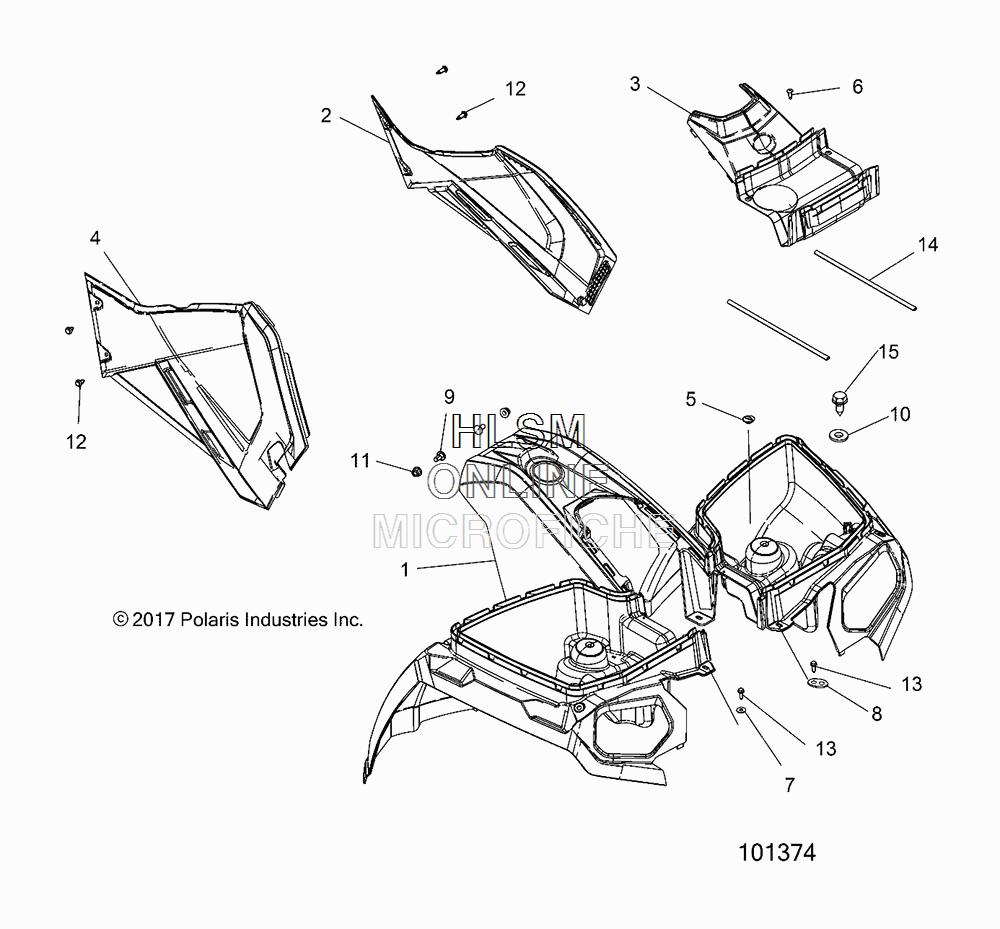

CAB - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 570 TRACTOR (SAGE BRUSH GREEN METALLIC) [A18STE57E1] (EUROPE) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2636211-498 ASM-CAB, FR, SVC, TRG, EU, SAGE BRUSH GREEN METALLIC (INCL. WARNING DECALS)
    ASM-CAB, FR, SVC, TRG, EU, SAGE BRUSH GREEN METALLIC (INCL. WARNING DECALS)
  • 2
    5450521-498 PANEL-SIDE, LEFT HAND, SAGE BRUSH GREEN METALLIC
    PANEL-SIDE, LEFT HAND, SAGE BRUSH GREEN METALLIC
  • 3
    5439069-498 COVER-FRONT, SAGE BRUSH GREEN METALLIC
    COVER-FRONT, SAGE BRUSH GREEN METALLIC
  • 4
    2636441-498 ASM-PANEL/SHIELD, RIGHT HAND, SAGE BRUSH GREEN METALLIC
    ASM-PANEL/SHIELD, RIGHT HAND, SAGE BRUSH GREEN METALLIC
  • 5
    5412981 PLUG, COMPARTMENT
    PLUG, COMPARTMENT
  • 6
    7519045 SCREW
    SCREW
  • 7
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 8
    5258497 BRACKET, PLUG MOUNT
    BRACKET, PLUG MOUNT
  • 9
    7512193 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 10
    7555960 WASHER-.327X.875X.090, FL-Y
    WASHER-.327X.875X.090, FL-Y
  • 11
    7542153 NUT, FLANGED, NYLOK
    NUT, FLANGED, NYLOK
  • 12
    7661855 RIVET
    RIVET
  • 13
    7512232 SCREW
    SCREW
  • 14
    5521697-350 SEAL, BULB, .375, 350CM
    SEAL, BULB, .375, 350CM
  • 15
    7515399 SCR-5/16-18X3/4 TFM HW T/R-Y
    SCR-5/16-18X3/4 TFM HW T/R-Y
