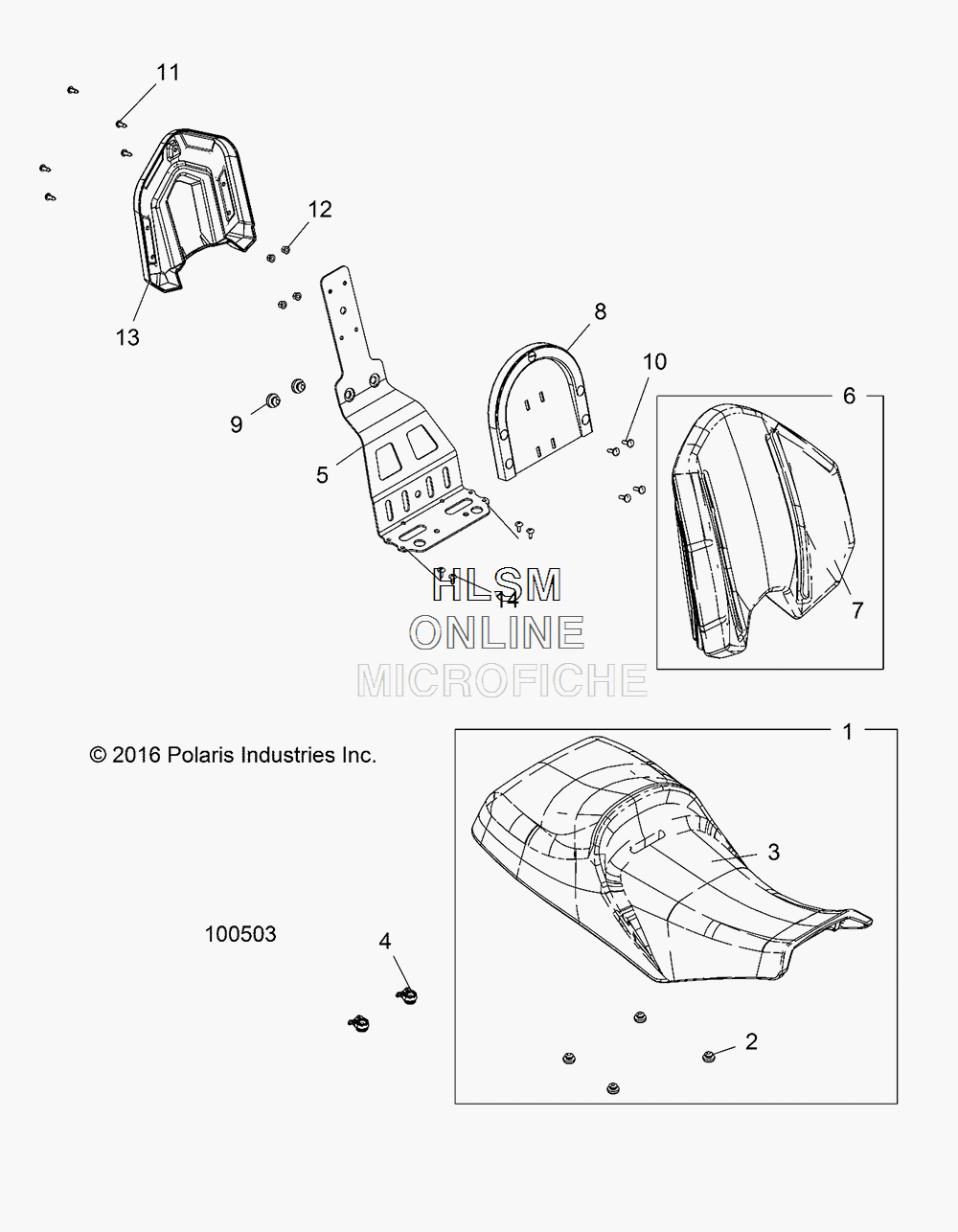

SEAT ASSY. для Polaris SPORTSMAN 570 TOURING EPS TRACTOR [A18SDS57C5] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2688301 ASM-SEAT, OPERATOR, NYL, TOURING (INCL. 1-3)
    ASM-SEAT, OPERATOR, NYL, TOURING (INCL. 1-3)
  • 2
    5412067 BUMPER, RUBBER
    BUMPER, RUBBER
  • 3
    2687958 ASM-COVER, SEAT, TRG, WHITE DECAL
    ASM-COVER, SEAT, TRG, WHITE DECAL
  • 4
    5415539 GROMMET, SEAT LATCH
    GROMMET, SEAT LATCH
  • 5
    1020037-458 SUPPORT, SEAT BACK, BLACK
    SUPPORT, SEAT BACK, BLACK
  • 6
    2688295 ASM-SEAT BACK, CUSHION, TOUR (INCL. 7)
    ASM-SEAT BACK, CUSHION, TOUR (INCL. 7)
  • 7
    2688296 ASM-SEAT BACK COVER, TOUR
    ASM-SEAT BACK COVER, TOUR
  • 8
    1022582-329 WELD-TUBE, SEAT BACK, TOUR, BLACK
    WELD-TUBE, SEAT BACK, TOUR, BLACK
  • 9
    5412067 BUMPER, RUBBER
    BUMPER, RUBBER
  • 10
    7512193 SCR-RIGHT HANDCAR-1/4-20X0.75 GR5 ZY3
    SCR-RIGHT HANDCAR-1/4-20X0.75 GR5 ZY3
  • 11
    7519045 SCR-TX TRUSS-#14X3/4, HI/LO ZBK
    SCR-TX TRUSS-#14X3/4, HI/LO ZBK
  • 12
    7542153 NUT, FLANGED, NYLOK
    NUT, FLANGED, NYLOK
  • 13
    5453291 COVER-SEAT BACK, HDPE
    COVER-SEAT BACK, HDPE
  • 14
    7518280 SCREW
    SCREW
