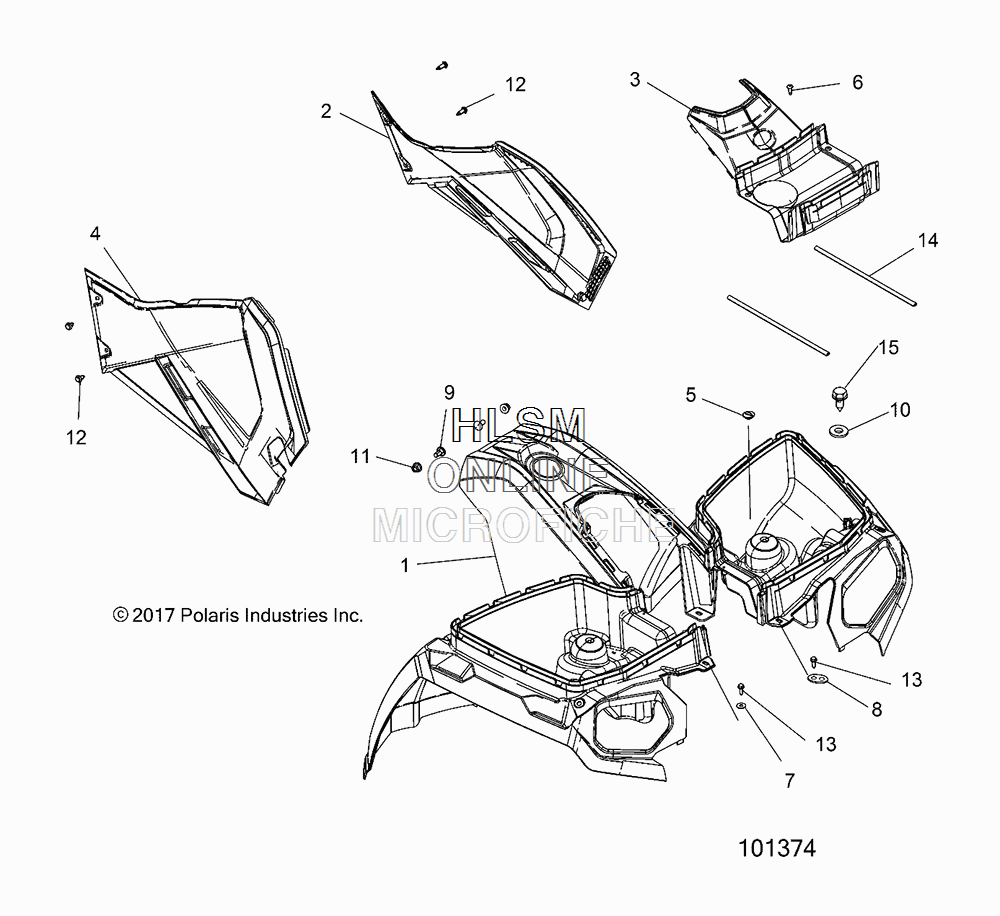

CAB - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 570 SP ZUG EPS (SUNSET RED) [A18SHS57FS] - 2018 года выпуска`
-
№АртикулНазвание
-
12636642-520 ASM-CAB FR, EU, 2 OC, SUN.RED (INCL. WARNING DECALS)ASM-CAB FR, EU, 2 OC, SUN.RED (INCL. WARNING DECALS)
-
25451308-520 PANEL-SIDE, UPR, LEFT HAND, SUN REDPANEL-SIDE, UPR, LEFT HAND, SUN RED
-
35451307-520 COVER-FR, PNTD, SUNSET REDCOVER-FR, PNTD, SUNSET RED
-
42636443-520 ASM-PANEL/SHIELD, RIGHT HAND, TPO, SUNSET REDASM-PANEL/SHIELD, RIGHT HAND, TPO, SUNSET RED
-
55412981 PLUG, COMPARTMENTPLUG, COMPARTMENT
-
67519045 SCREWSCREW
-
77555859 WASHER, FLATWASHER, FLAT
-
85258497 BRACKET, PLUG MOUNTBRACKET, PLUG MOUNT
-
97512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
107555960 WASHER-.327X.875X.090, FL-YWASHER-.327X.875X.090, FL-Y
-
117542153 NUT, FLANGED, NYLOKNUT, FLANGED, NYLOK
-
127661855 RIVETRIVET
-
137512232 SCREWSCREW
-
145521697-350 SEAL, BULB, .375, 350CMSEAL, BULB, .375, 350CM
-
157515399 SCR-5/16-18X3/4 TFM HW T/R-YSCR-5/16-18X3/4 TFM HW T/R-Y
