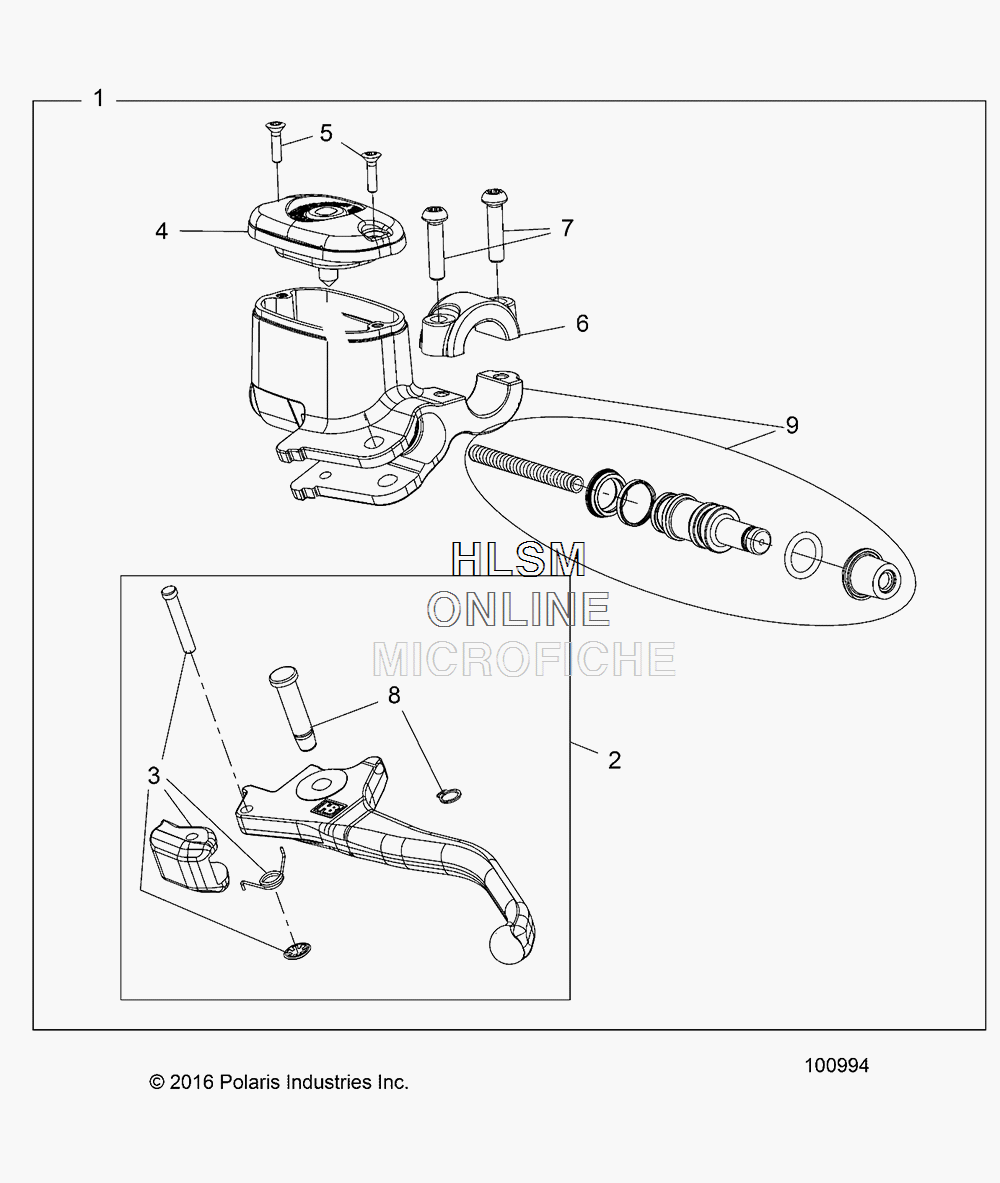

BRAKE - FRONT MASTER CYLINDER для Polaris SPORTSMAN 570 EFI X2 EPS (SAGE BRUSH GREEN METALLIC) [A18SWE57B1] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2010442 ASM., MASTER CYLINDER, 3/4 IN (INCL. ALL)
    ASM., MASTER CYLINDER, 3/4 IN (INCL. ALL)
  • 2
    2203053 KIT, LEVER, PARK BRAKE LEVER (INCL. BRAKE LEVER, PARK LEVER, PINS, SPRING, SNAP RINGS)
    KIT, LEVER, PARK BRAKE LEVER (INCL. BRAKE LEVER, PARK LEVER, PINS, SPRING, SNAP RINGS)
  • 3
    2203054 KIT, SUB ASM., PARK LEVER (INCL. PIN, LEVER, SPRING, RING)
    KIT, SUB ASM., PARK LEVER (INCL. PIN, LEVER, SPRING, RING)
  • 4
    2203055 KIT, MASTER CYLINDER COVER (INCL., COVER W/SEAL)
    KIT, MASTER CYLINDER COVER (INCL., COVER W/SEAL)
  • 5
    2203056 KIT, SCREW, COVER (INCL. 2 SCREWS)
    KIT, SCREW, COVER (INCL. 2 SCREWS)
  • 6
    2203093 KIT, CLAMP, 11/16 IN (INCL. CLAMP ONLY)
    KIT, CLAMP, 11/16 IN (INCL. CLAMP ONLY)
  • 7
    2203058 KIT, SCREW, CLAMP (INCL. 2 SCREWS)
    KIT, SCREW, CLAMP (INCL. 2 SCREWS)
  • 8
    2203059 KIT, PIN PIVOT, AND RING, SNAP (INCL. BRAKE LEVER PIN, SNAP RING)
    KIT, PIN PIVOT, AND RING, SNAP (INCL. BRAKE LEVER PIN, SNAP RING)
  • 9
    2206553 PISTON, SUBASM., RESERVOIR BODY, 3/4 IN (INCL. PISTON, SEALS, SPRING, BODY)
    PISTON, SUBASM., RESERVOIR BODY, 3/4 IN (INCL. PISTON, SEALS, SPRING, BODY)
