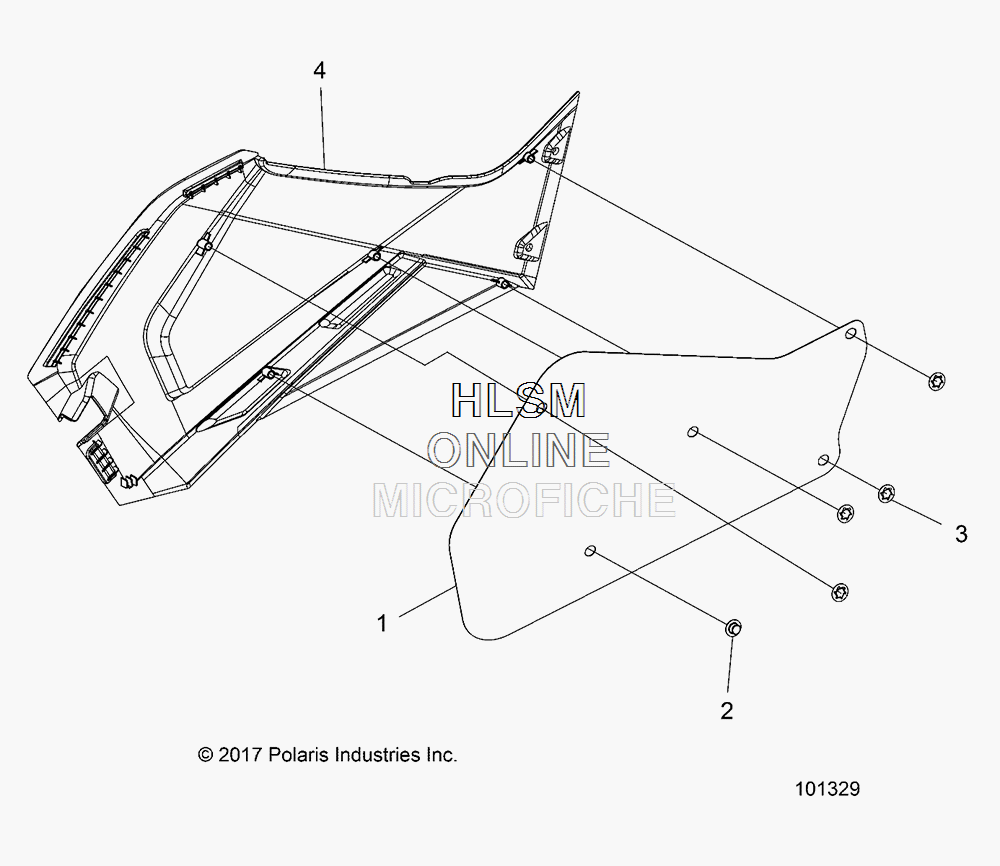

SIDE PANEL - RIGHT W/ HEAT SHIELD AND 1 UP HARDWARE для Polaris SPORTSMAN 570 EFI (PURSUIT CAMO) [A18SE57B9] - 2018 года выпуска`
-
№АртикулНазвание
-
15263249 SHIELD-HEAT, SIDE PANEL, SPM 1UPSHIELD-HEAT, SIDE PANEL, SPM 1UP
-
27710850 NUT-PUSH, CAPNUT-PUSH, CAP
-
37710702 RETAINER-BOLT, PUSHNUT, M10RETAINER-BOLT, PUSHNUT, M10
-
45453648-587 PANEL-SIDE, DIP, RIGHT HAND, POLARIS PURSUIT CAMOPANEL-SIDE, DIP, RIGHT HAND, POLARIS PURSUIT CAMO
