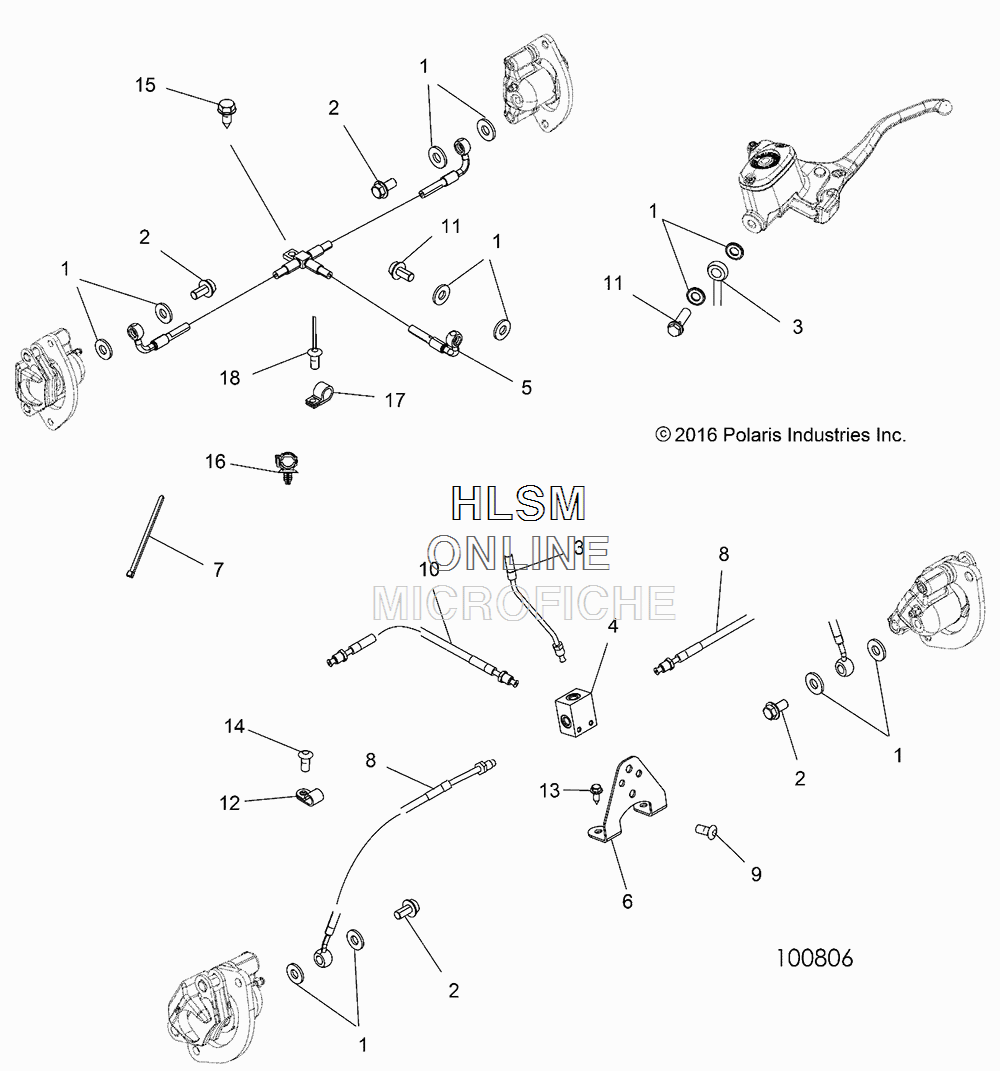

BRAKE LINES для Polaris SPORTSMAN 1000 XP (MATTE COPPERHEAD) [A18SXD95BC] - 2018 года выпуска
-
№АртикулНазвание
-
15413212 SEALSEAL
-
21910499 BOLT, BANJO,10MMX1.00BOLT, BANJO,10MMX1.00
-
31913023 LINE-BRK,MCT,34,30B,50F,240,G2LINE-BRK,MCT,34,30B,50F,240,G2
-
47052372 FITTING, CROSSFITTING, CROSS
-
51913022 LINE-BRAKE,REAR,G2LINE-BRAKE,REAR,G2
-
65257768 BRACKET, JUNCTION BLOCKBRACKET, JUNCTION BLOCK
-
77080138 CABLE TIECABLE TIE
-
81911668 LINE, BRAKE, CALIPER, FRONTLINE, BRAKE, CALIPER, FRONT
-
97512024 SCREWSCREW
-
101911669 LINE, BRAKE, JB TO FT MCLINE, BRAKE, JB TO FT MC
-
111910958 BOLT, BANJO, 10MM X 1.25BOLT, BANJO, 10MM X 1.25
-
127081246 CLAMP, WIRE/TUBE, .25 DIACLAMP, WIRE/TUBE, .25 DIA
-
137518513 SCREWSCREW
-
147518176 SCREWSCREW
-
157518529 SCREWSCREW
-
167670116 CLIP, ROUTING,.472 B.D.,HINGEDCLIP, ROUTING,.472 B.D.,HINGED
-
177080499 CLAMP, CABLECLAMP, CABLE
-
187621334 RIVET-5/32 BULBEX-BRIVET-5/32 BULBEX-B
