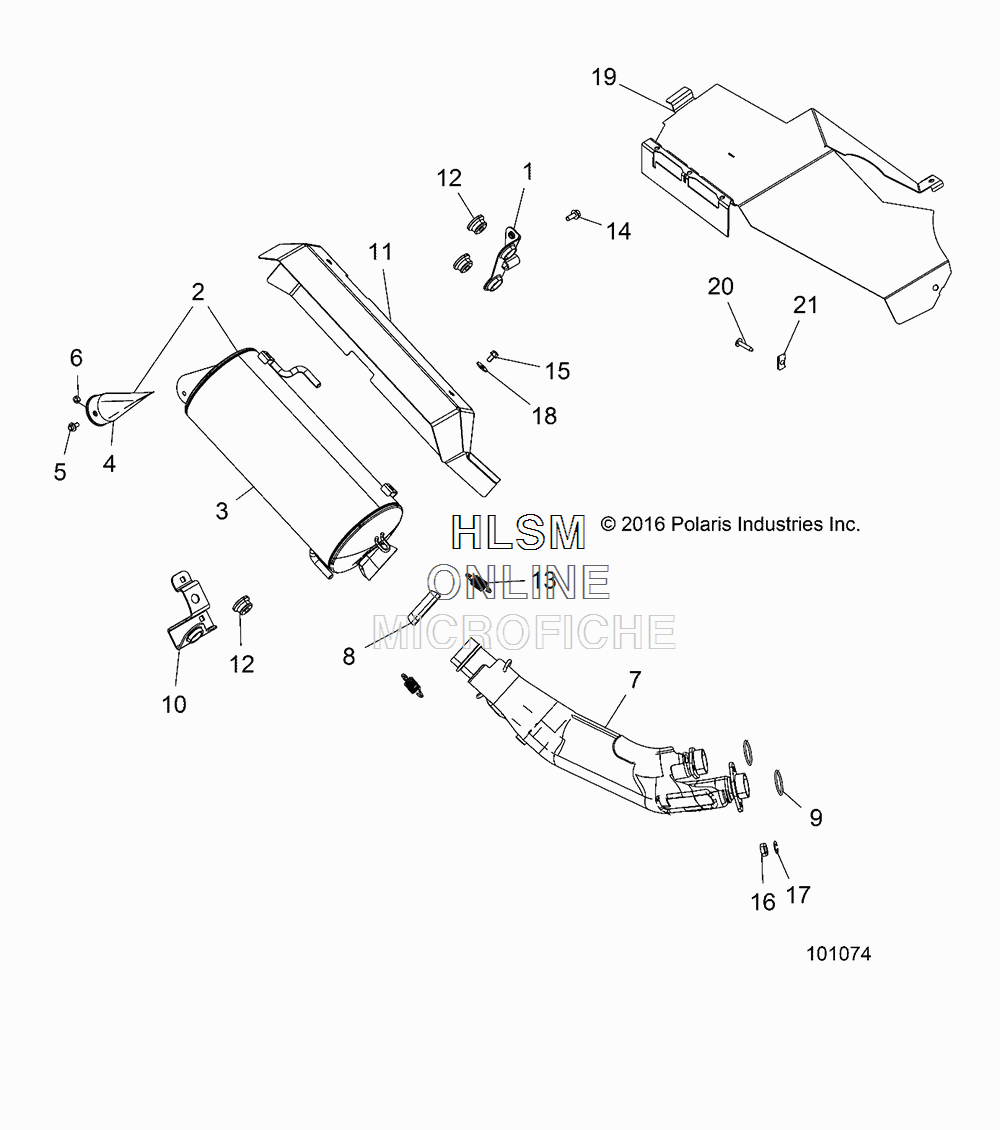

EXHAUST SYSTEM для Polaris SPORTSMAN 1000 XP EU (HAVASU RED PEARL) [A18SXE95FR] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1022584-067 WELD-SUPPORT,EXHAUST,BLACK
    WELD-SUPPORT,EXHAUST,BLACK
  • 2
    1262925 ASM-SILENCER [INCL. 3,4,5,6]
    ASM-SILENCER [INCL. 3,4,5,6]
  • 3
    1262926-489 WELD-SILENCER,BLACK
    WELD-SILENCER,BLACK
  • 4
    1262123 WELD-SPARK ARRESTOR,AVA875
    WELD-SPARK ARRESTOR,AVA875
  • 5
    7517257 SCR-HXFL-M6X1.0X12 10.9 ZPC
    SCR-HXFL-M6X1.0X12 10.9 ZPC
  • 6
    7547120 NUT-HEXHD,M6,DIN980V,0600100
    NUT-HEXHD,M6,DIN980V,0600100
  • 7
    1262934 ASM-EXHAUST,PIPE,1000
    ASM-EXHAUST,PIPE,1000
  • 8
    3610204 SEAL-EXHAUST
    SEAL-EXHAUST
  • 9
    5257995 GASKET-EXHAUST SEALING
    GASKET-EXHAUST SEALING
  • 10
    5262915-067 BRKT-EXHAUST,LOWER,SUPPORT,BLACK
    BRKT-EXHAUST,LOWER,SUPPORT,BLACK
  • 11
    5262918 SHIELD-EXHAUST
    SHIELD-EXHAUST
  • 12
    5415785 ISOLATOR-EXHAUST,HANGER
    ISOLATOR-EXHAUST,HANGER
  • 13
    7043727 SPRING-EXHAUST S.S. SHOTPEENED
    SPRING-EXHAUST S.S. SHOTPEENED
  • 14
    7518555 BOLT-M8X1.25X20,HXFLG
    BOLT-M8X1.25X20,HXFLG
  • 15
    7518490 SCR-1/4-20X1/2,TFM HW-M
    SCR-1/4-20X1/2,TFM HW-M
  • 16
    7547076 NUT-HEX-M8X1.25 8 ZPB.
    NUT-HEX-M8X1.25 8 ZPB.
  • 17
    7556111 WASHER-LOCK M8X12.7ODX2MM ZY3
    WASHER-LOCK M8X12.7ODX2MM ZY3
  • 18
    7555935 WASHER-.28 X .81 X .06, ST-M
    WASHER-.28 X .81 X .06, ST-M
  • 19
    5263705 SHIELD-FENDER
    SHIELD-FENDER
  • 20
    7519001 SCR-M6X1X40,TR/TX-BLACK
    SCR-M6X1X40,TR/TX-BLACK
  • 21
    7547366 CLIP-"U",M6.0X1.0
    CLIP-"U",M6.0X1.0
