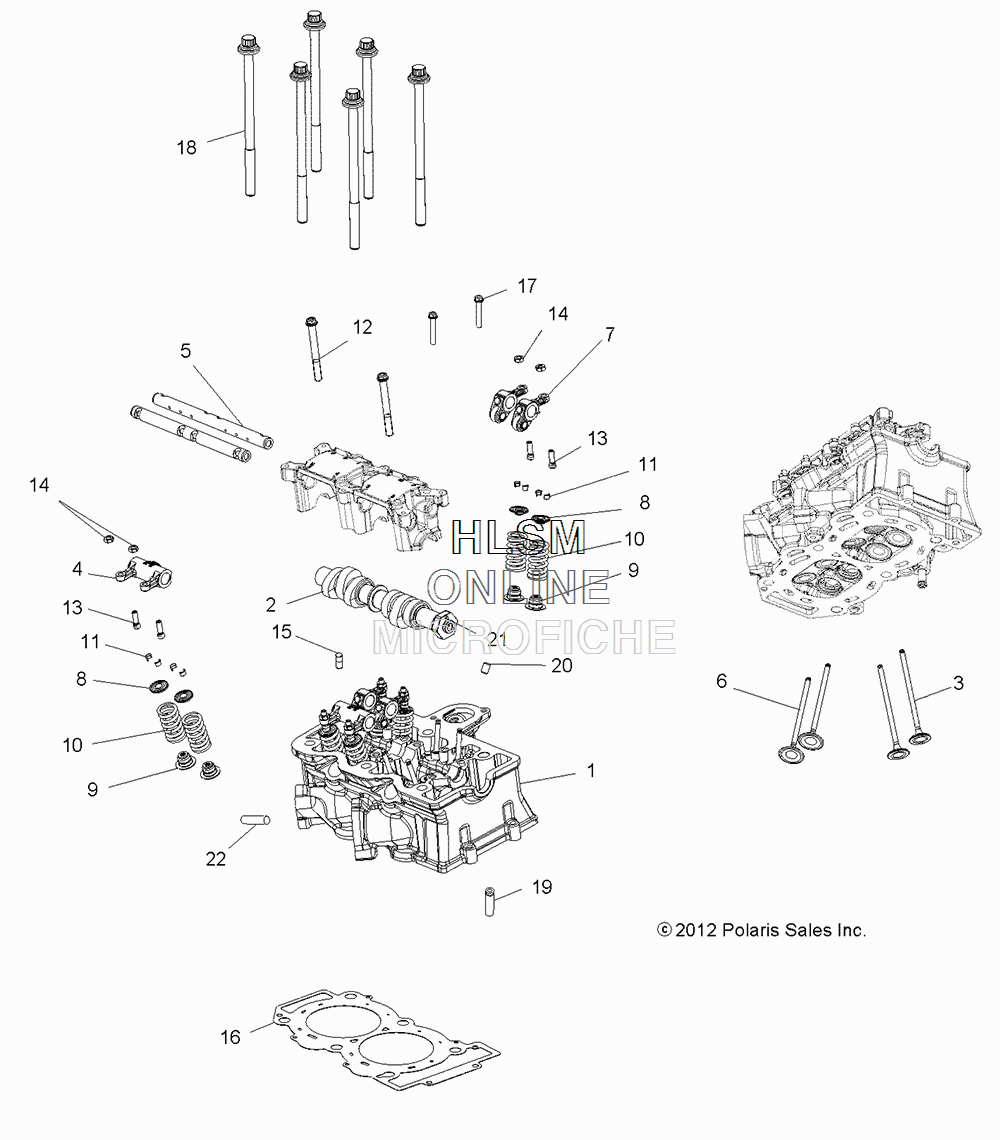

CYLINDER HEAD - CAM - VALVES для Polaris SCRAMBLER 850 (VELOCITY BLUE) [A18SVA85B5] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    3022821 ASM., CYLINDER HEAD (INCL. CAMSHAFT CARRIER, PLUG)
    ASM., CYLINDER HEAD (INCL. CAMSHAFT CARRIER, PLUG)
  • 1
    7052532 PLUG
    PLUG
  • 2
    3022643 ASM., CAMSHAFT (INCL. 21)
    ASM., CAMSHAFT (INCL. 21)
  • 3
    3022272 VALVE, EXHAUST, 26MM
    VALVE, EXHAUST, 26MM
  • 4
    1204589 ASM., ARM ROCKER, EXHAUST (INCL. ARM, SCREW, NUT)
    ASM., ARM ROCKER, EXHAUST (INCL. ARM, SCREW, NUT)
  • 5
    3022728 ASM., SHAFT, ROCKER
    ASM., SHAFT, ROCKER
  • 6
    3022099 VALVE, INTAKE, 30MM
    VALVE, INTAKE, 30MM
  • 7
    1204588 ASM., ARM ROCKER, INTAKE (INCL. ARM, SCREW, NUT)
    ASM., ARM ROCKER, INTAKE (INCL. ARM, SCREW, NUT)
  • 8
    3021865 RETAINER, VALVE
    RETAINER, VALVE
  • 9
    3610165 SEAL
    SEAL
  • 10
    7043947 SPRING, VALVE
    SPRING, VALVE
  • 11
    7081470 KEEPER, VALVE
    KEEPER, VALVE
  • 12
    7519293 SCREW
    SCREW
  • 13
    5136463 SCREW, LASH ADJUSTER
    SCREW, LASH ADJUSTER
  • 14
    7547335 NUT, LOCK
    NUT, LOCK
  • 15
    2540080 JET, OIL
    JET, OIL
  • 16
    5813345 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 17
    7518578 SCREW
    SCREW
  • 18
    7519219 BOLT
    BOLT
  • 19
    3022348 GUIDE, VALVE, 5.5MM
    GUIDE, VALVE, 5.5MM
  • 22
    5132040 STUD-EXH MNT M8X1.25X45
    STUD-EXH MNT M8X1.25X45
