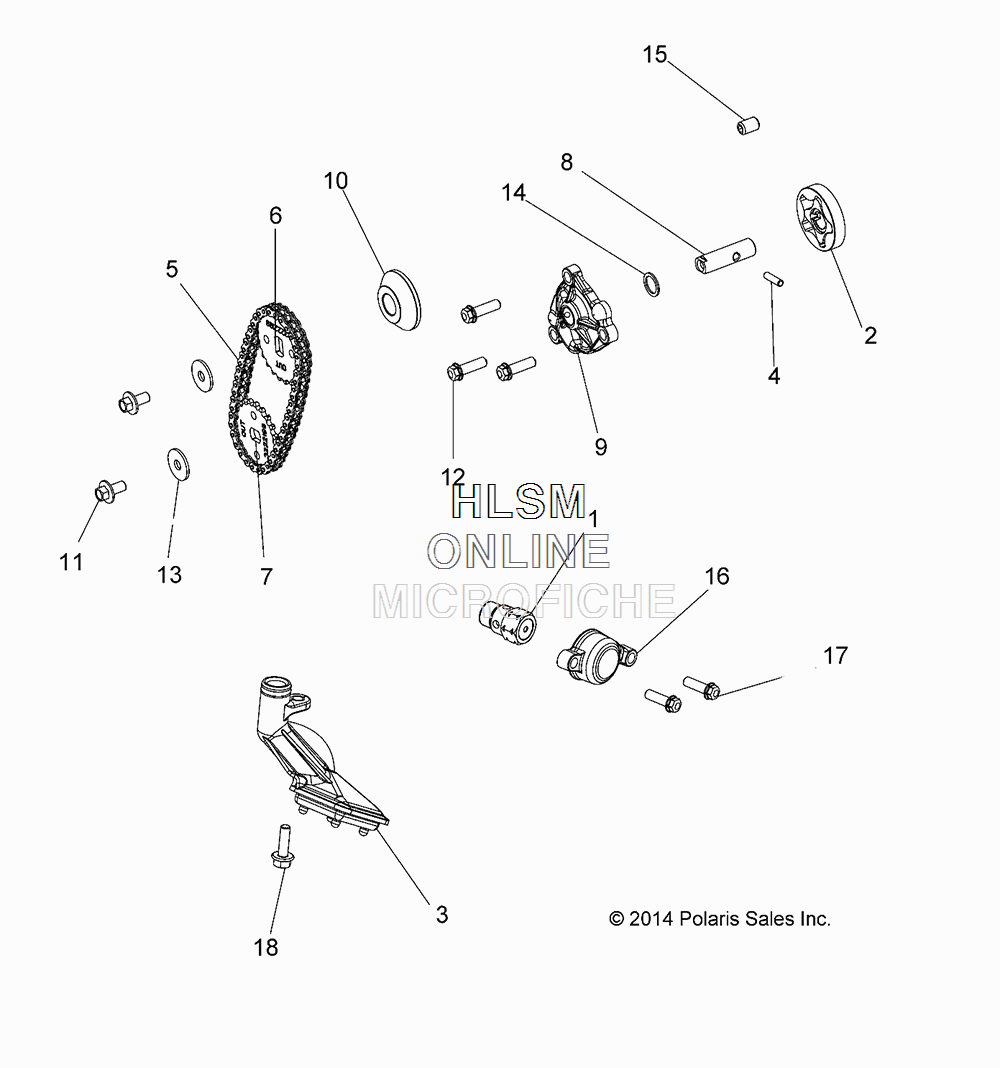

OIL PUMP для Polaris SCRAMBLER 850 (SUNSET RED) [A18SHE57FS] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2521459 ASM., REGULATOR VALVE
    ASM., REGULATOR VALVE
  • 2
    1204293 ASM., GEROTOR
    ASM., GEROTOR
  • 3
    2521804 PICKUP, OIL
    PICKUP, OIL
  • 4
    3022308 PIN, SOLID
    PIN, SOLID
  • 5
    3222216 CHAIN, OIL PUMP DRIVE
    CHAIN, OIL PUMP DRIVE
  • 6
    3222198 SPROCKET, 23T, DRIVE
    SPROCKET, 23T, DRIVE
  • 7
    3222199 SPROCKET, 21T, DRIVEN
    SPROCKET, 21T, DRIVEN
  • 8
    5138077 SHAFT, OIL PUMP
    SHAFT, OIL PUMP
  • 9
    5138320 COVER, OIL PUMP
    COVER, OIL PUMP
  • 10
    5137451 SPACER, SPROCKET
    SPACER, SPROCKET
  • 11
    7517257 SCREW
    SCREW
  • 12
    7518576 SCREW
    SCREW
  • 13
    7556054 WASHER
    WASHER
  • 14
    7556570 WASHER
    WASHER
  • 15
    2540080 JET, OIL, OIL PUMP
    JET, OIL, OIL PUMP
  • 16
    5138339 COVER
    COVER
  • 17
    7518576 SCREW
    SCREW
  • 18
    7517398 SCR-M6X1.0X22.0, HX/FL-Y/D
    SCR-M6X1.0X22.0, HX/FL-Y/D
