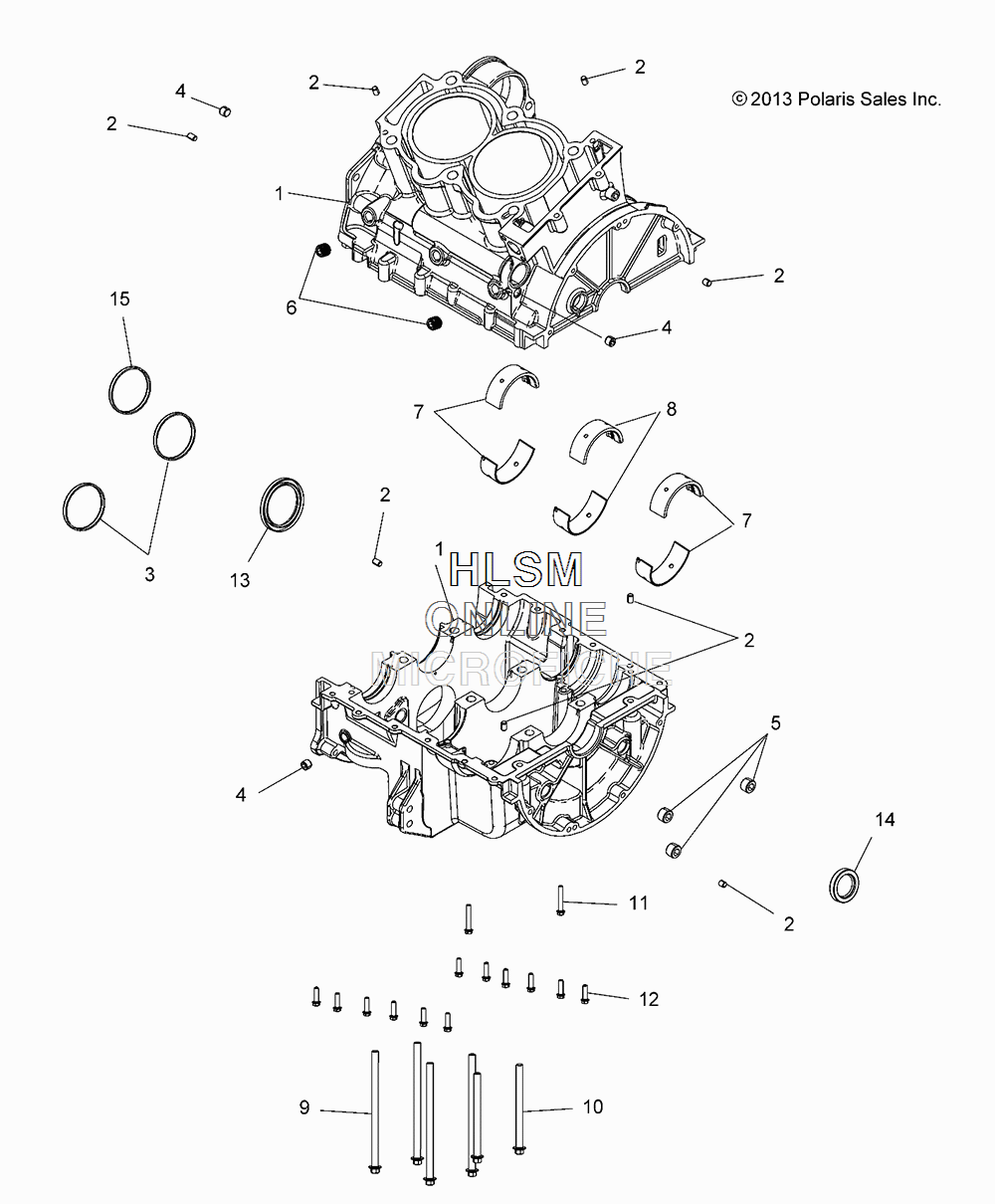

CRANKCASE для Polaris SCRAMBLER 1000 XP (HAVASU RED PEARL) [A18SVE95BR] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2205144 KIT, CRANKCASE
    KIT, CRANKCASE
  • 2
    5136879 PIN, DOWEL
    PIN, DOWEL
  • 3
    3610144 SEAL, BALANCE SHAFT, 55MM
    SEAL, BALANCE SHAFT, 55MM
  • 4
    7052337 PLUG
    PLUG
  • 5
    7052413 PLUG
    PLUG
  • 6
    7518835 PLUG
    PLUG
  • 7
    3514534 BEARING, MAIN, UPPER, FRONT, 55MM
    BEARING, MAIN, UPPER, FRONT, 55MM
  • 8
    3514535 BEARING, MAIN, UPPER, CENTER, 55MM
    BEARING, MAIN, UPPER, CENTER, 55MM
  • 9
    7518804 SCREW
    SCREW
  • 10
    7518805 SCREW
    SCREW
  • 11
    7518578 SCREW
    SCREW
  • 12
    7518576 SCREW
    SCREW
  • 13
    3610152 SEAL, CRANKSHAFT, 55.7MM
    SEAL, CRANKSHAFT, 55.7MM
  • 14
    3610220 SEAL, CRANKSHAFT, 32MM W/FLNG
    SEAL, CRANKSHAFT, 32MM W/FLNG
  • 15
    3610144 SEAL, BALANCE SHAFT W/FLNG, 55MM
    SEAL, BALANCE SHAFT W/FLNG, 55MM
