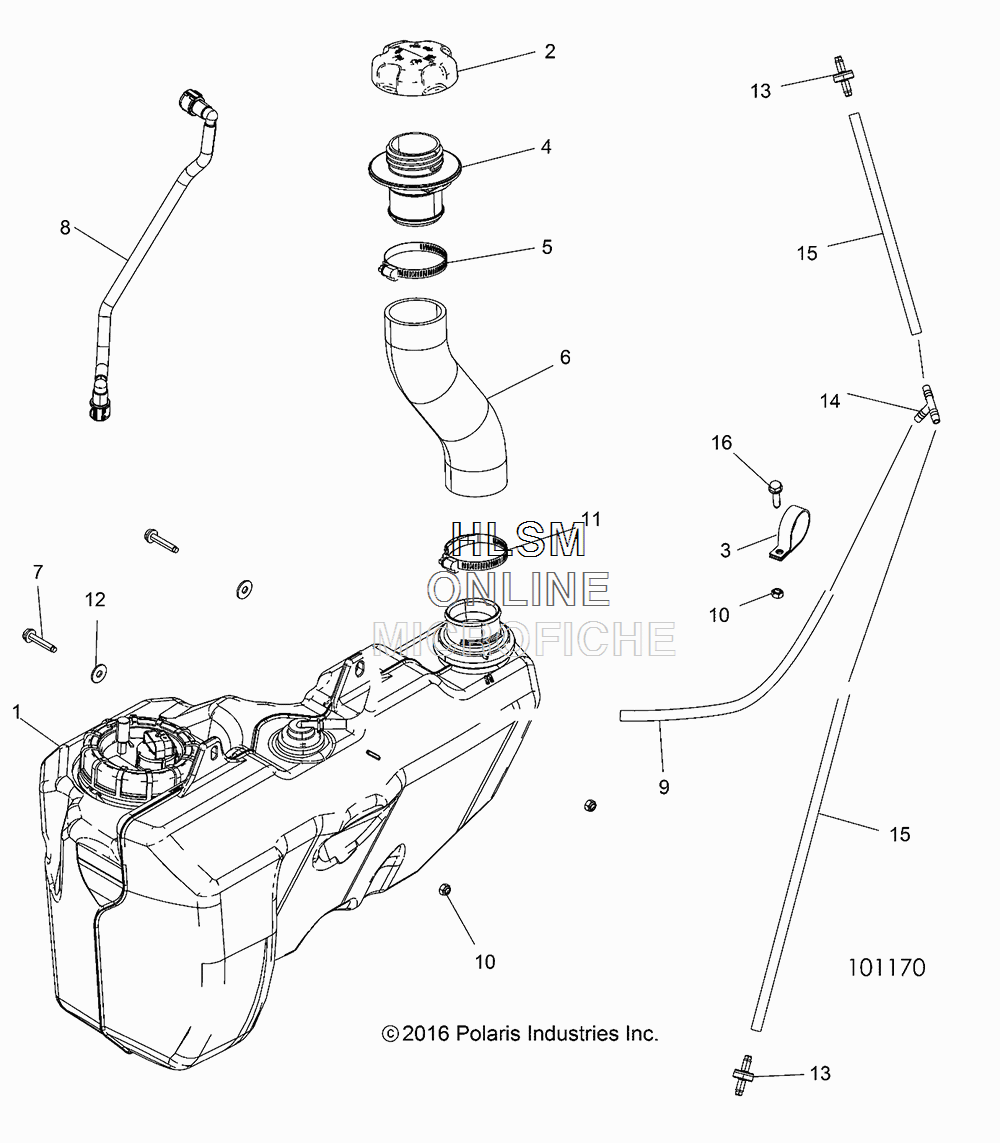

FUEL TANK для Polaris SCRAMBLER 1000 TRACTOR (HAVASU RED PEARL) [A18SVS95CR] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2521706 ASM-FUEL TANK W/PUMP, 4 BAR (INCL. PUMP)
    ASM-FUEL TANK W/PUMP, 4 BAR (INCL. PUMP)
  • 2
    5439075 CAP, GAS TANK (INCL. GASKET)
    CAP, GAS TANK (INCL. GASKET)
  • 3
    7080851 CLAMP-HOSE, 1.312 VINYL COATED
    CLAMP-HOSE, 1.312 VINYL COATED
  • 4
    5436898 INLET, FUEL
    INLET, FUEL
  • 5
    7080413 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 6
    5414459 HOSE, FUEL FILL
    HOSE, FUEL FILL
  • 7
    7519202 SCREW, FLANGE
    SCREW, FLANGE
  • 8
    2521315 ASM., FUEL LINE
    ASM., FUEL LINE
  • 9
    8450040-600 LINE, VENT, 1/4 ID(600 CM.)
    LINE, VENT, 1/4 ID(600 CM.)
  • 10
    7546703 NUT, NYLOK
    NUT, NYLOK
  • 11
    7081413 CLAMP, CONSTANT TENSION
    CLAMP, CONSTANT TENSION
  • 12
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 13
    7052390 VALVE, CHECK, VACUUM
    VALVE, CHECK, VACUUM
  • 14
    7052075 FITTING-TEE, 1/4-1/4-BRB-NY
    FITTING-TEE, 1/4-1/4-BRB-NY
  • 15
    8450040-600 LINE, FUEL, 1/4 ID(600 CM.)
    LINE, FUEL, 1/4 ID(600 CM.)
  • 16
    7517704 SCR-HXFL-M6X1.0X12 8.8 ZPB
    SCR-HXFL-M6X1.0X12 8.8 ZPB
