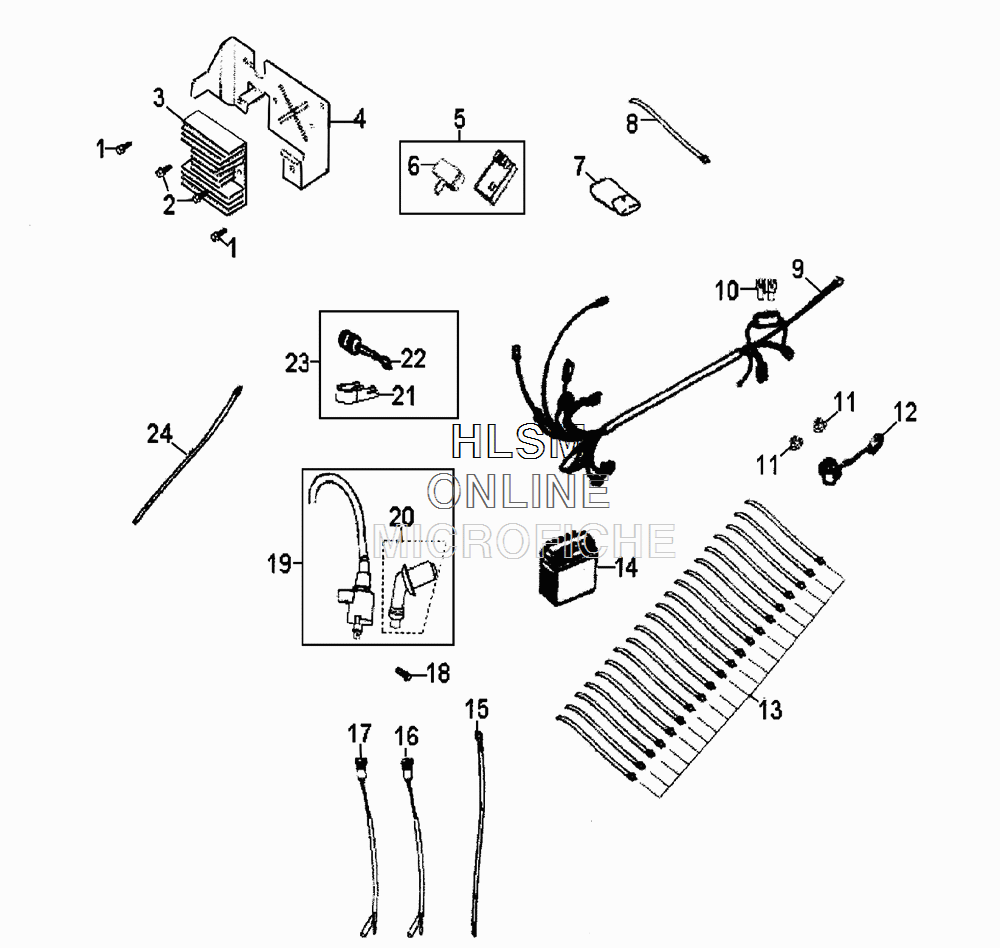

ELECTRICAL COMPONENTS для Polaris PHOENIX 200 (AVALANCHE GREY) [A18YAP20A8] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    0452917 BOLT
    BOLT
  • 2
    0450701 BOLT
    BOLT
  • 3
    0455311 RECTIFIER/REGULATOR-PHOENIX
    RECTIFIER/REGULATOR-PHOENIX
  • 4
    0452764 BRACKET, ELECTRICAL
    BRACKET, ELECTRICAL
  • 5
    0455259 ASM-CDI,PHX [INCL. 6]
    ASM-CDI,PHX [INCL. 6]
  • 6
    0453473 PAD, RUBBER
    PAD, RUBBER
  • 7
    0454245 ASM., POUCH, TOOL
    ASM., POUCH, TOOL
  • 8
    0450721 STRAP
    STRAP
  • 9
    0455296 ASM-HARNESS,MAIN,PHOENIX
    ASM-HARNESS,MAIN,PHOENIX
  • 10
    0452744 FUSE, MAIN HARNESS,PHOENIX
    FUSE, MAIN HARNESS,PHOENIX
  • 11
    0450150 NUT, FLANGE
    NUT, FLANGE
  • 12
    0452761 ASM., STARTER RELAY
    ASM., STARTER RELAY
  • 13
    0450559 STRAP
    STRAP
  • 14
    0455167 BATTERY-AEON
    BATTERY-AEON
  • 15
    0452767 ASM., BATTERY CABLE
    ASM., BATTERY CABLE
  • 16
    0454669 INDICATOR, NEUTRAL
    INDICATOR, NEUTRAL
  • 17
    0454670 INDICATOR, REVERSE,PHOENIX
    INDICATOR, REVERSE,PHOENIX
  • 18
    0452763 BOLT
    BOLT
  • 19
    0452309 ASM., IGNITION COIL [INCL. 20]
    ASM., IGNITION COIL [INCL. 20]
  • 20
    0453364 CAP, SPARK PLUG,PHOENIX
    CAP, SPARK PLUG,PHOENIX
  • 21
    0450886 CLIP, MAIN SWITCH
    CLIP, MAIN SWITCH
  • 23
    0453415 ASM., SWITCH, MAIN,PHOENIX [INCL. 21,22]
    ASM., SWITCH, MAIN,PHOENIX [INCL. 21,22]
  • 24
    0453144 CABLE, ETC, CONNECTING
    CABLE, ETC, CONNECTING
