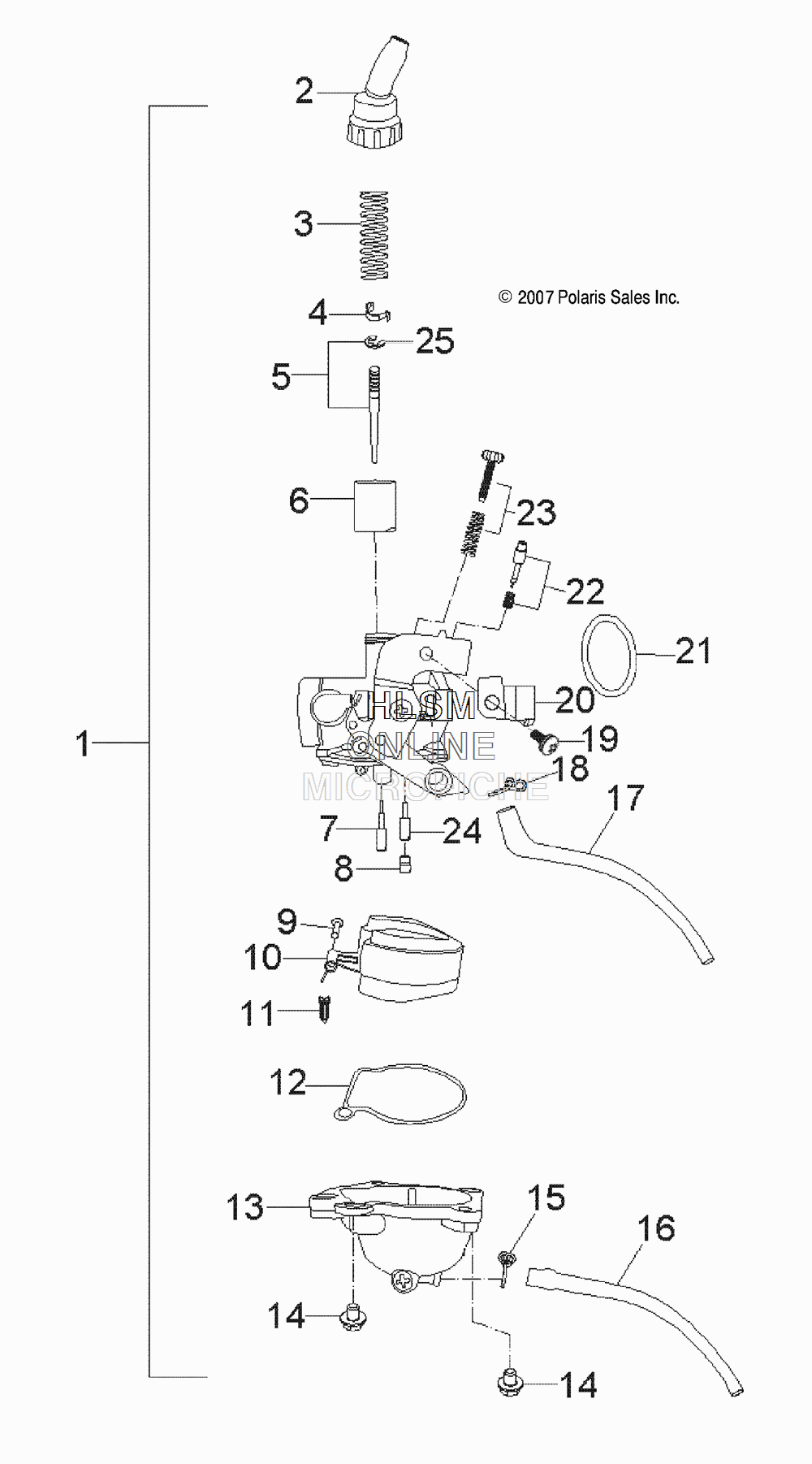

CARBURETOR для Polaris OUTLAW 50 (LIME SQUEEZE) [A18YAK05N6] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    0455014 ASM., CARBURETOR [INCL. ALL]
    ASM., CARBURETOR [INCL. ALL]
  • 2
    0453948 ASM., CAP,PRED 50
    ASM., CAP,PRED 50
  • 3
    0453949 SPRING,PRED 50
    SPRING,PRED 50
  • 4
    0453950 CLIP, NEEDLE
    CLIP, NEEDLE
  • 5
    0453951 ASM., JET NEEDLE [INCL. 25]
    ASM., JET NEEDLE [INCL. 25]
  • 6
    0453952 VALVE, THROTTLE,PRED 50
    VALVE, THROTTLE,PRED 50
  • 7
    0454956 JET, PILOT, 15
    JET, PILOT, 15
  • 8
    0453963 JET, MAIN,PRED 50
    JET, MAIN,PRED 50
  • 9
    0453961 PIN, FLOAT
    PIN, FLOAT
  • 10
    0453962 FLOAT,PRED 50
    FLOAT,PRED 50
  • 11
    0453960 VALVE, FLOAT
    VALVE, FLOAT
  • 12
    0453959 GASKET, BOWL
    GASKET, BOWL
  • 13
    0453958 BOWL, FLOAT,PRED 50
    BOWL, FLOAT,PRED 50
  • 14
    0453629 SCREW
    SCREW
  • 15
    0452814 CLIP
    CLIP
  • 16
    0453957 TUBE, DRAIN
    TUBE, DRAIN
  • 17
    0453955 HOSE, FUEL
    HOSE, FUEL
  • 18
    0453953 CLAMP, HOSE
    CLAMP, HOSE
  • 19
    0453968 SCREW
    SCREW
  • 20
    0453967 CLIP, BRACKET
    CLIP, BRACKET
  • 21
    0453626 O-RING
    O-RING
  • 22
    0455015 SCREW, AIR, CARB
    SCREW, AIR, CARB
  • 23
    0453956 ASM., SCREW, IDLE, CARB
    ASM., SCREW, IDLE, CARB
  • 24
    0453964 VALVE, NEEDLE,PRED 50
    VALVE, NEEDLE,PRED 50
  • 25
    0454267 E-CLIP, NEEDLE
    E-CLIP, NEEDLE
