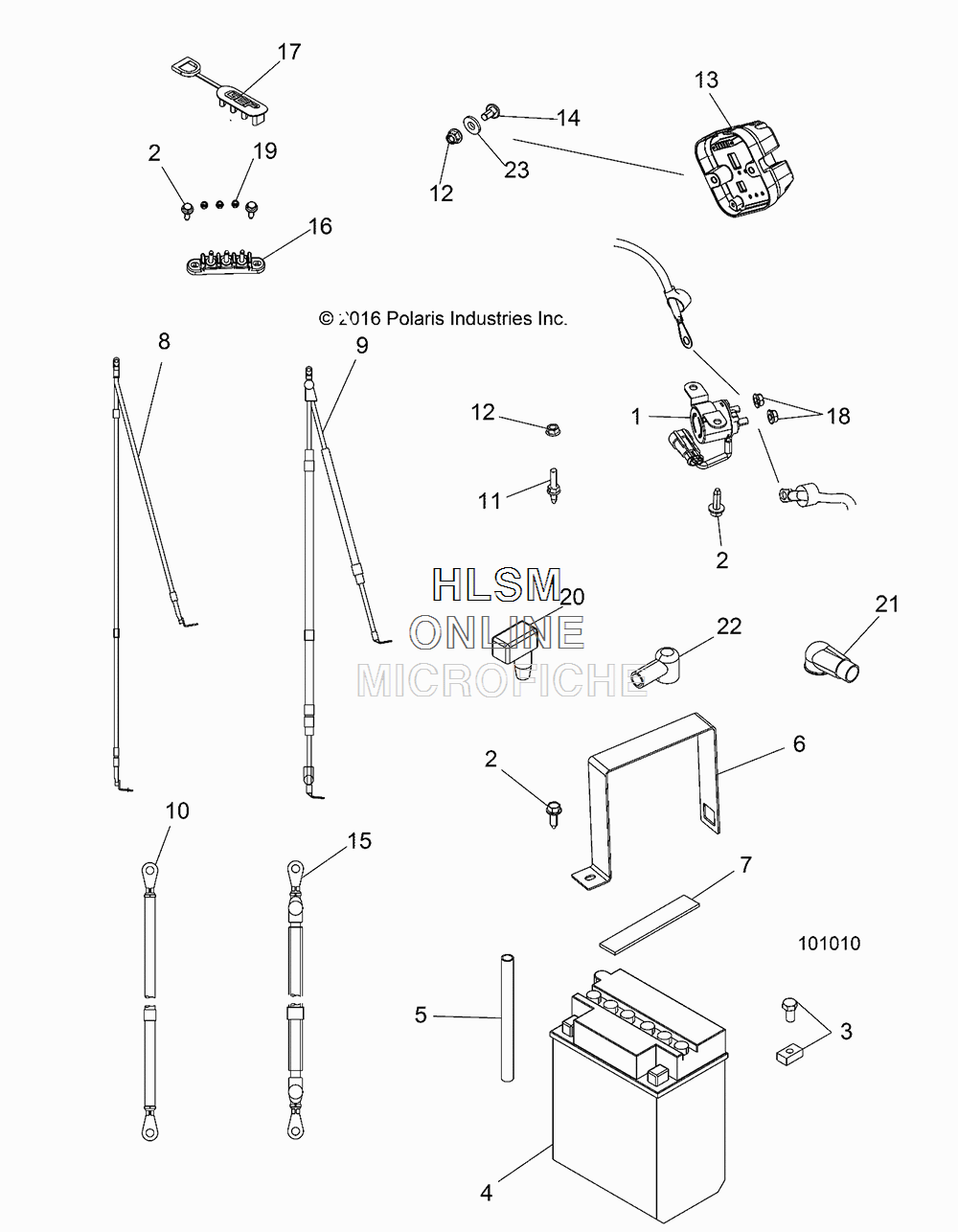

BATTERY для Polaris ACE 570 EFI EURO (VELOCITY BLUE) [A18DAA57F5] - 2018 года выпуска
-
№АртикулНазвание
-
14012001 SOLENOID, STARTERSOLENOID, STARTER
-
27518529 SCREWSCREW
-
32202213 KIT, BATTERY BOLTKIT, BATTERY BOLT
-
44017109 BATTERY-14AH,VARTABATTERY-14AH,VARTA
-
44015955 BATTERY-SEALED,32 AH,500 CCA (OPT)BATTERY-SEALED,32 AH,500 CCA (OPT)
-
55435030 TUBE, BATTERY VENTTUBE, BATTERY VENT
-
65264812-458 BRKT-BATTERY STRAP,VARTA,M.BLKBRKT-BATTERY STRAP,VARTA,M.BLK
-
75810455 PAD, RACK MOUNTPAD, RACK MOUNT
-
84015545 CABLE-BATT,6GA,BK,BAT/CHASS/TBCABLE-BATT,6GA,BK,BAT/CHASS/TB
-
94015546 CABLE-BATT,6GA,RD,BATT/SOL/TBCABLE-BATT,6GA,RD,BATT/SOL/TB
-
97080761 STRAP, PANDUIT, 14 INSTRAP, PANDUIT, 14 IN
-
104014423-725 CABLE, BATTERY, FLATCABLE, BATTERY, FLAT
-
117519333 STUDSTUD
-
127547274 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
134016868 REGULATOR-3PH,50A,SERIES,HISPDREGULATOR-3PH,50A,SERIES,HISPD
-
147520559 M6X1.0X30 CARRIAGE CL8.8 ZC CLM6X1.0X30 CARRIAGE CL8.8 ZC CL
-
154014424-830 CABLE, BATTERY, FLAT (INCL. 22)CABLE, BATTERY, FLAT (INCL. 22)
-
164015778 BLOCK-TERMINAL,3 POST,TALLBLOCK-TERMINAL,3 POST,TALL
-
174014659 COVER, TERMINAL BLOCK, 3 POSTCOVER, TERMINAL BLOCK, 3 POST
-
187546703 NUTNUT
-
197547341 NUTNUT
-
204014836 BOOT, BATTERY, REDBOOT, BATTERY, RED
-
214014994 BOOT, BATTERY, REDBOOT, BATTERY, RED
-
225410346 INSULATOR, CABLEINSULATOR, CABLE
-
237555748 WASHER-.28X.62-.14(RBR-BK)-ZWASHER-.28X.62-.14(RBR-BK)-Z
