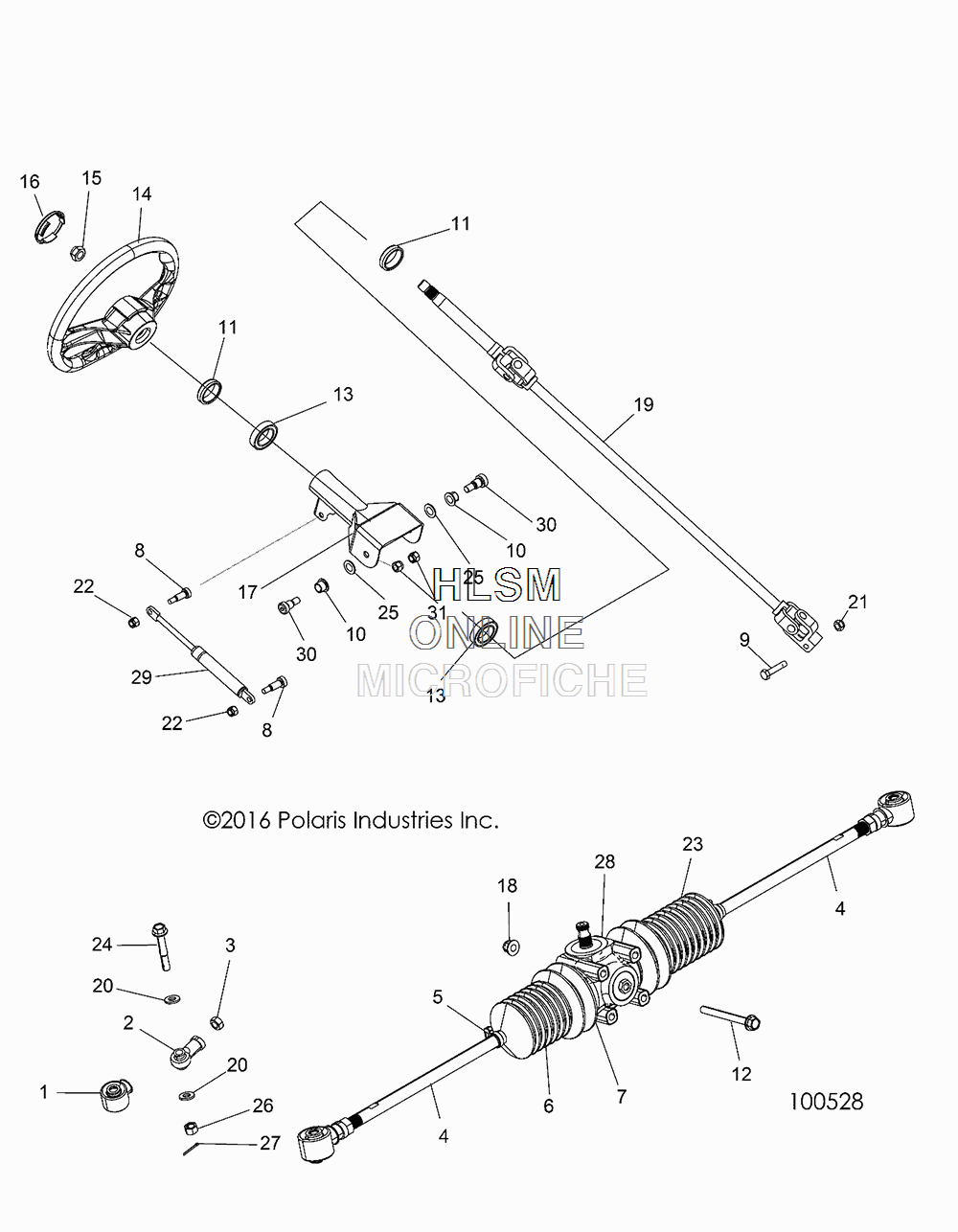

STEERING ASM. для Polaris ACE 500 SOHC [A18DAA50B7] - 2018 года выпуска

  • №
    Артикул
    Название
  • 2
    7061189 ROD END
    ROD END
  • 3
    2205058 NUT, JAM
    NUT, JAM
  • 5
    7080978 CLAMP, BOOT, SMALL
    CLAMP, BOOT, SMALL
  • 6
    5412012 BOOT-DRIVER SIDE,RACK
    BOOT-DRIVER SIDE,RACK
  • 7
    7080979 CLAMP, BOOT, LARGE
    CLAMP, BOOT, LARGE
  • 8
    7518786 BOLT, SHOULDER
    BOLT, SHOULDER
  • 9
    7518644 SCREW
    SCREW
  • 10
    5439154 BUSHING, TILT STEERING
    BUSHING, TILT STEERING
  • 11
    7556675 BUSHING, STEERING
    BUSHING, STEERING
  • 12
    7519217 SCREW
    SCREW
  • 13
    3514686 BEARING, STEERING
    BEARING, STEERING
  • 14
    1823623 WHEEL, STEERING
    WHEEL, STEERING
  • 15
    7547506 NUT
    NUT
  • 16
    5436536 CAP, STEERING WHEEL
    CAP, STEERING WHEEL
  • 17
    1022896-458 ASM-PIVOT TUBE,M.BLK (INCL. 13)
    ASM-PIVOT TUBE,M.BLK (INCL. 13)
  • 18
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 19
    1824546 SHAFT-STEERING
    SHAFT-STEERING
  • 20
    7556099 WASHER, FLAT
    WASHER, FLAT
  • 21
    7547385 NUT, NYLOK
    NUT, NYLOK
  • 22
    7546703 NUT, NYLOK
    NUT, NYLOK
  • 23
    5412012 BOOT-DRIVER SIDE,RACK
    BOOT-DRIVER SIDE,RACK
  • 24
    7519854 SCR-HXFL-M10X1.25X75 10.9 ZOD
    SCR-HXFL-M10X1.25X75 10.9 ZOD
  • 25
    7555919 WASHER
    WASHER
  • 26
    7547333 NUT, FLANGE
    NUT, FLANGE
  • 27
    7661203 PIN, COTTER
    PIN, COTTER
  • 28
    1824540 ASM-GEARBOX,STEERING,17T (INCL. 2-7,23)
    ASM-GEARBOX,STEERING,17T (INCL. 2-7,23)
  • 29
    7044699 ASM-SHOCK,TILT STEERING,SHORT
    ASM-SHOCK,TILT STEERING,SHORT
  • 30
    7519355 SCREW
    SCREW
  • 31
    7547442 NUT, NYLOK
    NUT, NYLOK
