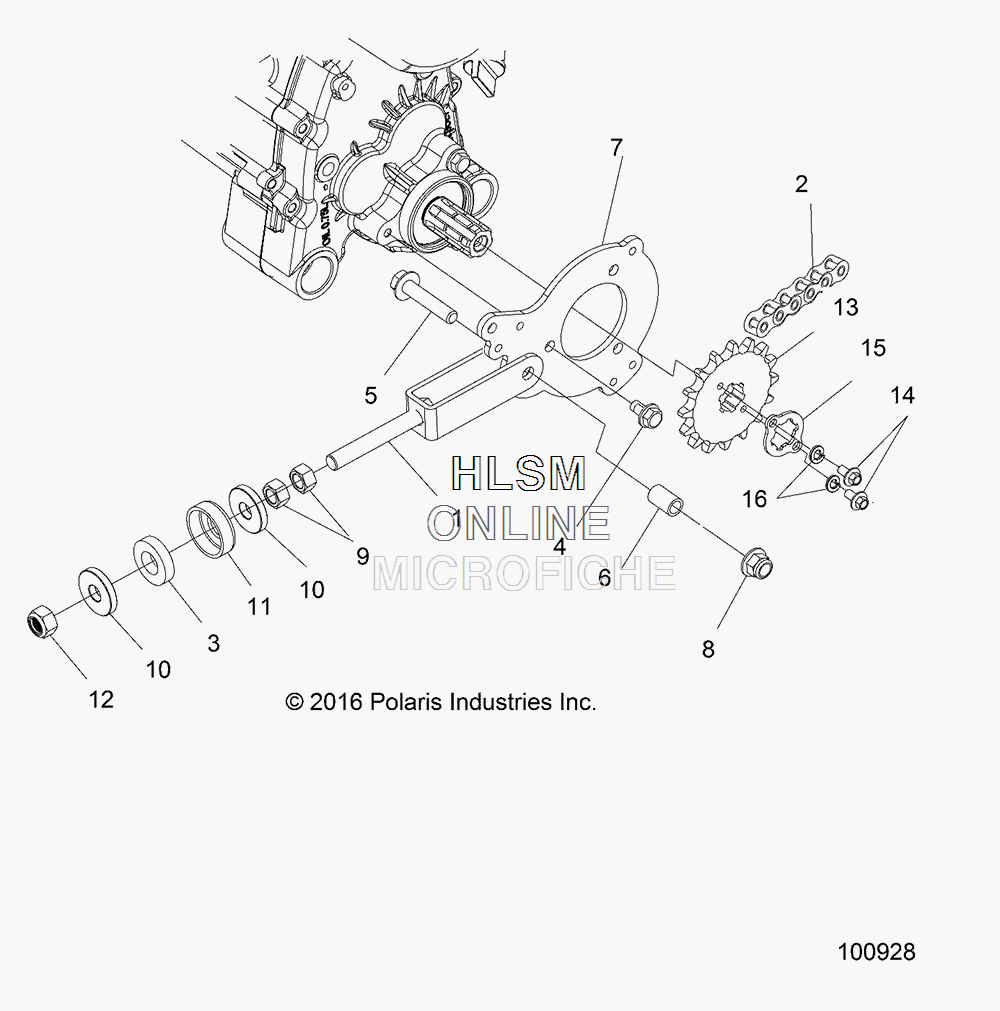

CHAIN TENSIONER AND SPROCKET для Polaris ACE 150 EFI 501S (INDY RED) [A18HAA15B7] - 2018 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    1022922 WELD-BRKT, CHAIN TENSIONING
    WELD-BRKT, CHAIN TENSIONING
  • 2
    3222268 CHAIN-50X52P INC ML
    CHAIN-50X52P INC ML
  • 2
    3222282 MASTER LINK, 50X52P
    MASTER LINK, 50X52P
  • 3
    5416112 BUSHING-ENGINER ADJ ISOLATOR
    BUSHING-ENGINER ADJ ISOLATOR
  • 4
    7519124 SCR-HH-M8X1.25X16 8.8 ZOD
    SCR-HH-M8X1.25X16 8.8 ZOD
  • 5
    7518971 SCR-M10X1.5X50 8.8 HX/FL ZOD
    SCR-M10X1.5X50 8.8 HX/FL ZOD
  • 6
    7557012 COLLAR-ENGINE HANGER PLATE
    COLLAR-ENGINE HANGER PLATE
  • 7
    1022921 WELD-BRKT, ENGINE HANGER
    WELD-BRKT, ENGINE HANGER
  • 8
    7547313 NUT-M10X1.5, HXFLG, NYLON INS
    NUT-M10X1.5, HXFLG, NYLON INS
  • 9
    7547345 NUT-M12-1.25, ZINC CLEAR
    NUT-M12-1.25, ZINC CLEAR
  • 10
    7557000 WASHER, M12 FLAT DAC
    WASHER, M12 FLAT DAC
  • 11
    7557001 SPACER-ENGINE ADJ CUP
    SPACER-ENGINE ADJ CUP
  • 12
    7547796 NUT-HEX, M12X1.25 8 ZPC NYL
    NUT-HEX, M12X1.25 8 ZPC NYL
  • 13
    3222266 SPROCKET-DRIVE, 50P, 16T
    SPROCKET-DRIVE, 50P, 16T
  • 14
    7517257 SCR-HXFL-M6X1.0X12 10.9 ZPC
    SCR-HXFL-M6X1.0X12 10.9 ZPC
  • 15
    7710855 KEEPER-SPROCKET
    KEEPER-SPROCKET
  • 16
    7552616 WASHER-LOCK, 6 MM-Z
    WASHER-LOCK, 6 MM-Z
  • 17
    7557002 SPACER-ENGINE ADJ ALIGNMENT (NOT SHOWN)
    SPACER-ENGINE ADJ ALIGNMENT (NOT SHOWN)
