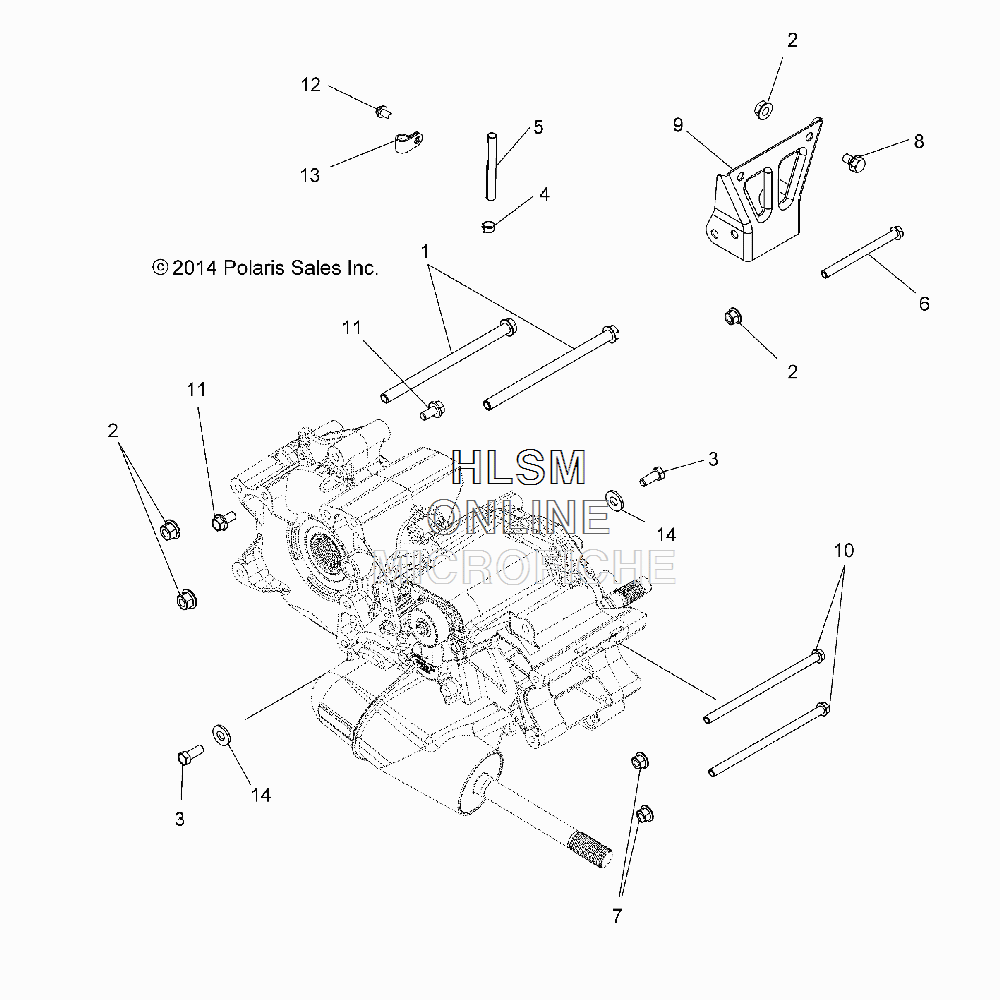

GEARCASE - MAIN - MOUNTING для Polaris SPORTSMAN TOURING 570 EFI WHITE LIGHTING [A17SDA57L2] - 2017 года выпуска`
![](/wa-data/public/shop/sheme/polaris/atv/3cc07237-0fae-4002-9790-0245080d0753.gif)
-
№АртикулНазвание
-
17518365 BOLTBOLT
-
27547180 NUT, FLANGENUT, FLANGE
-
37518006 SCREWSCREW
-
47081432 CLAMP-HOSE, 17/32, GREENCLAMP-HOSE, 17/32, GREEN
-
58450040-600 LINE, FUELLINE, FUEL
-
67517646 SCREWSCREW
-
77542343 NUT, FLANGENUT, FLANGE
-
87515522 BOLTBOLT
-
95254309-329 SUPPORT, TRANSMISSION, UPPER, BLACKSUPPORT, TRANSMISSION, UPPER, BLACK
-
107518648 SCREWSCREW
-
117517632 SCREWSCREW
-
127512084 SCREWSCREW
-
137080585 CLAMP-HOSE PLASTIC, 1"CLAMP-HOSE PLASTIC, 1"
-
147556242 WASHERWASHER
