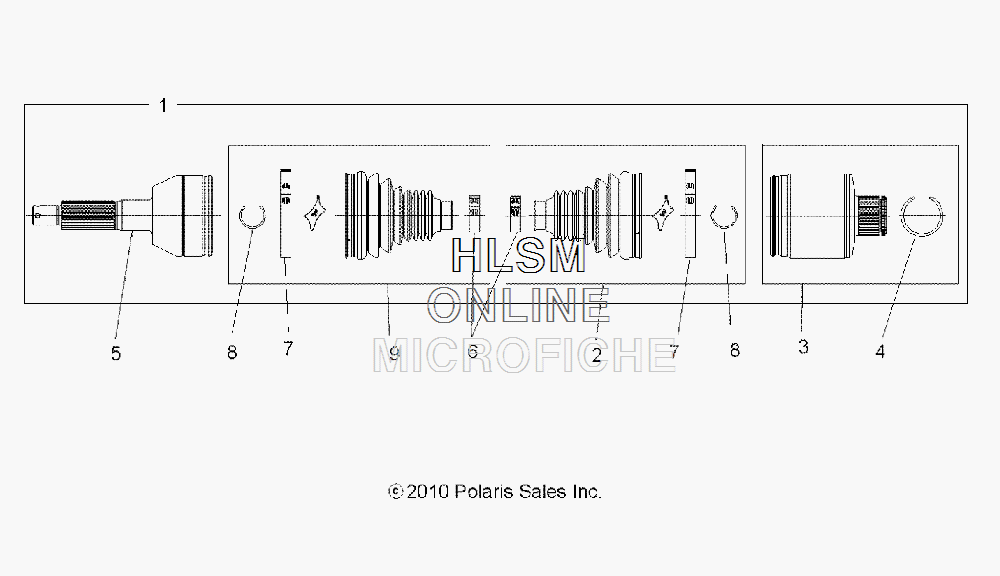

DRIVESHAFT - REAR (FROM 8/29/16) для Polaris SPORTSMAN TOURING 570 EFI SAGE GREEN [A17SDA57A1] - 2017 года выпуска`
-
№АртикулНазвание
-
11333275 ASM., DRIVE SHAFT, REAR [INCL. ALL] [FROM 8/29/16 AND AFTER]ASM., DRIVE SHAFT, REAR [INCL. ALL] [FROM 8/29/16 AND AFTER]
-
22204460 KIT, BOOT, INBOARD [INCL. BOOT, CLAMPS, GREASE, RING]KIT, BOOT, INBOARD [INCL. BOOT, CLAMPS, GREASE, RING]
-
32205583 JOINT, PLUNGING [INCL. RING]JOINT, PLUNGING [INCL. RING]
-
47710665 RING, SPRINGRING, SPRING
-
52204365 JOINT, CV [JOINT ONLY]JOINT, CV [JOINT ONLY]
-
87710664 RING, SPRINGRING, SPRING
-
92204459 KIT, BOOT, OUTBOARDKIT, BOOT, OUTBOARD
