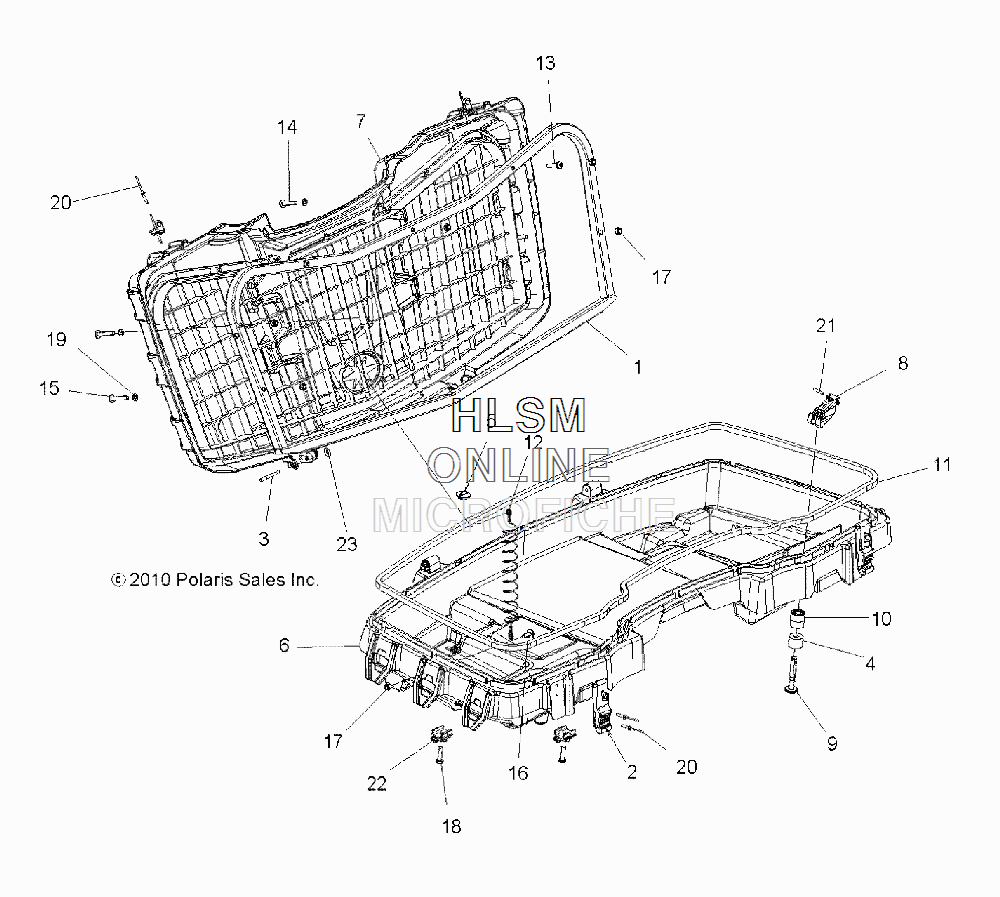

CARGO BOX - FRONT для Polaris SPORTSMAN TOURING 1000 BLACK PEARL [A17SYE95AK] - 2017 года выпуска

  • №
    Артикул
    Название
  • -
    2877951 KIT, CARGO BOX, FRONT [INCL. ALL]
    KIT, CARGO BOX, FRONT [INCL. ALL]
  • -
    2877784 KIT, LOCK AND RIDE ANCHOR, LONG [INCL. 4,8-10,21]
    KIT, LOCK AND RIDE ANCHOR, LONG [INCL. 4,8-10,21]
  • 1
    1016972 SUPPORT, LID
    SUPPORT, LID
  • 2
    2877447 KIT, LATCH
    KIT, LATCH
  • 3
    5137573 PIN, HINGE
    PIN, HINGE
  • 4
    5413887 BUSHING, RUBBER
    BUSHING, RUBBER
  • 5
    5413899 PLUG, COMPARTMENT
    PLUG, COMPARTMENT
  • 6
    5437761 BOX, STORAGE, LOWER
    BOX, STORAGE, LOWER
  • 7
    5437762 BOX, STORAGE, UPPER
    BOX, STORAGE, UPPER
  • 8
    5438117 HANDLE, BLACK
    HANDLE, BLACK
  • 9
    5138410 SHAFT, LNR ANCHOR
    SHAFT, LNR ANCHOR
  • 10
    5521796 SPACER
    SPACER
  • 11
    5521810 SEAL, BOX, FRONT
    SEAL, BOX, FRONT
  • 12
    7081638 CABLE, BOX LIMITER
    CABLE, BOX LIMITER
  • 13
    7519189 SCREW
    SCREW
  • 14
    7519190 BOLT
    BOLT
  • 15
    7519191 SCREW
    SCREW
  • 16
    7519192 SCREW
    SCREW
  • 17
    7547478 NUT, NYLOK
    NUT, NYLOK
  • 18
    7519189 SCREW
    SCREW
  • 19
    7556541 WASHER, SEAL
    WASHER, SEAL
  • 20
    7661981 RIVET
    RIVET
  • 21
    7661982 PIN, DOWEL
    PIN, DOWEL
  • 22
    5438790 GUIDE, RACK
    GUIDE, RACK
  • 23
    7710670 RING, RETAINING, E-CLIP
    RING, RETAINING, E-CLIP
