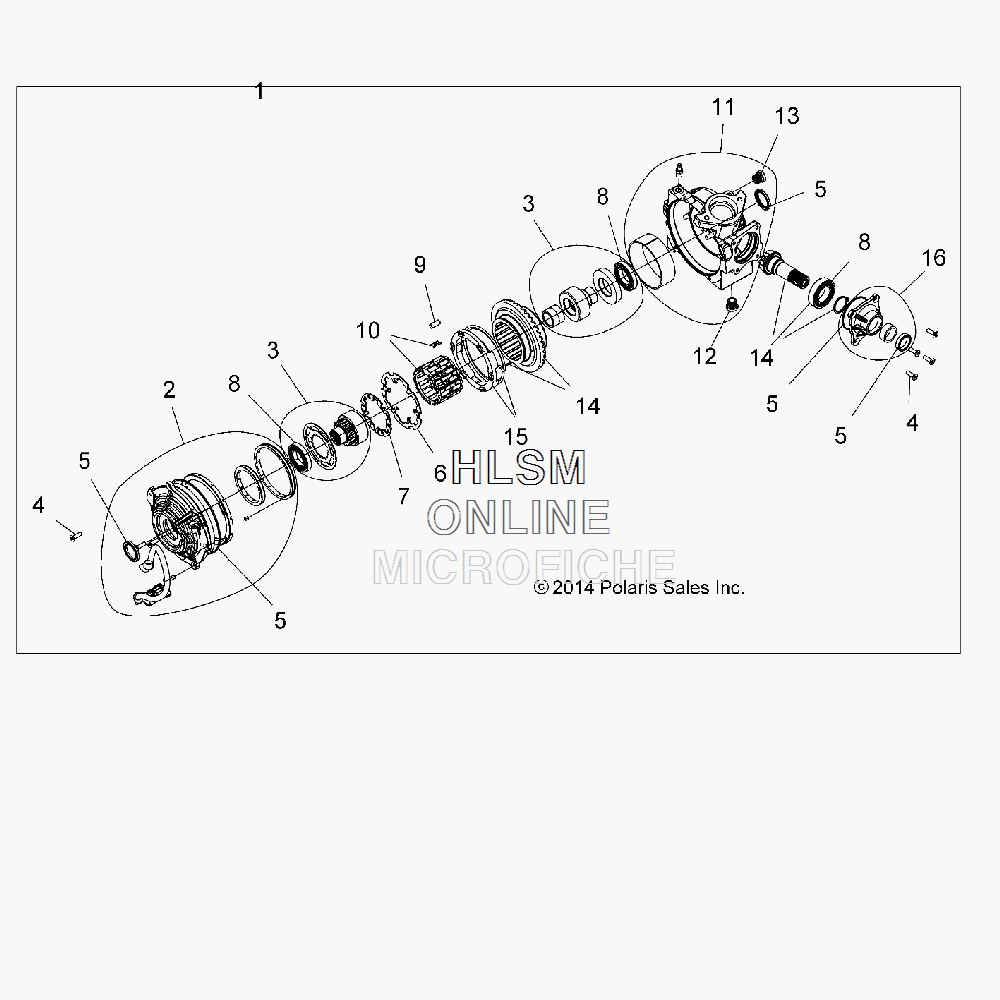

GEARCASE - INTERNAL COMPONENTS - FRONT для Polaris SPORTSMAN 850 TOURING SP SUNSET RED [A17SYE85AS] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1333570 ASM-GEARCASE FR,12 PCKT,ADC,ZN [INCL. ALL]
    ASM-GEARCASE FR,12 PCKT,ADC,ZN [INCL. ALL]
  • 2
    3235521 ASM., COVER OUTPUT [INCL. O-RING, SEAL, PIN, COVER, SPACER, COIL, CLIPS, 4WD COIL, WIRING]
    ASM., COVER OUTPUT [INCL. O-RING, SEAL, PIN, COVER, SPACER, COIL, CLIPS, 4WD COIL, WIRING]
  • 3
    3235910 ASM., OUTPUT HUB [INCL. BEARING, BUSHING, HUB, HUB PLATE, SPACER, HUB ASM.]
    ASM., OUTPUT HUB [INCL. BEARING, BUSHING, HUB, HUB PLATE, SPACER, HUB ASM.]
  • 4
    3235433 KIT, FASTENERS [INCL. 12 SCREWS]
    KIT, FASTENERS [INCL. 12 SCREWS]
  • 5
    3235434 KIT, SEAL REPAIR [INCL. ALL SEALS AND O-RINGS]
    KIT, SEAL REPAIR [INCL. ALL SEALS AND O-RINGS]
  • 6
    3235485 PLATE, 4WD, ARMATURE
    PLATE, 4WD, ARMATURE
  • 7
    3235626 PLATE, ARMATURE BD
    PLATE, ARMATURE BD
  • 8
    3235435 BEARINGS [INCL. ALL BALL BEARINGS]
    BEARINGS [INCL. ALL BALL BEARINGS]
  • 9
    3235624 CAGE ROLLERS [INCL. SET OF 24 ROLLERS]
    CAGE ROLLERS [INCL. SET OF 24 ROLLERS]
  • 10
    3235625 ASM., ROLL CAGE [INCL. CAGE, 24 CLIPS]
    ASM., ROLL CAGE [INCL. CAGE, 24 CLIPS]
  • 11
    3235436 ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT]
    ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT]
  • 12
    2203738 DRAIN PLUG
    DRAIN PLUG
  • 13
    2203739 PLUG, FILL
    PLUG, FILL
  • 14
    3235636 ASM., GEAR HOUSING AND PINION GEAR [INCL. BEARING, SNAP RING, PIN, PINION, RING GEAR]
    ASM., GEAR HOUSING AND PINION GEAR [INCL. BEARING, SNAP RING, PIN, PINION, RING GEAR]
  • 15
    3235712 SPRING, TORSION, RETAINER
    SPRING, TORSION, RETAINER
  • 16
    3235843 ASM., COVER INPUT [INCL. COVER, SEAL, O-RING, BEARING]
    ASM., COVER INPUT [INCL. COVER, SEAL, O-RING, BEARING]
