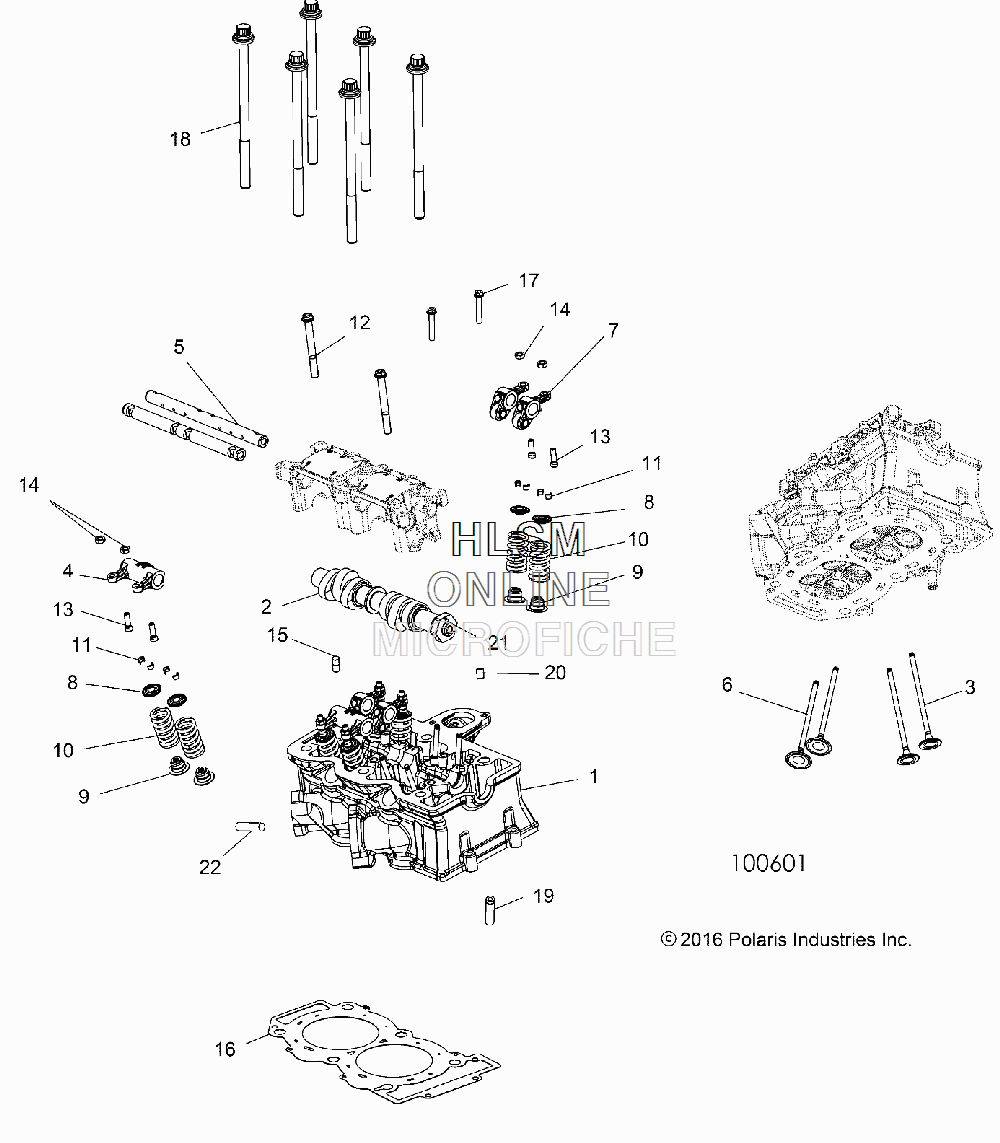

CYLINDER HEAD - CAM - VALVES для Polaris SPORTSMAN 850 SP TITANIUM MATTE METALLIC [A17SXA85AM] - 2017 года выпуска
-
№АртикулНазвание
-
13022821 ASM-CYLINDER HEAD 850XP [INCL. GUIDES, CAMSHAFT CARRIER, PLUG]ASM-CYLINDER HEAD 850XP [INCL. GUIDES, CAMSHAFT CARRIER, PLUG]
-
17052532 PLUGPLUG
-
23022643 ASM., CAMSHAFT [INCL. 21]ASM., CAMSHAFT [INCL. 21]
-
33022272 VALVE, EXHAUSTVALVE, EXHAUST
-
41204589 ASM., ARM ROCKER, EXHAUST [INCL. ARM, SCREW, NUT]ASM., ARM ROCKER, EXHAUST [INCL. ARM, SCREW, NUT]
-
53022728 ASM., SHAFT, ROCKERASM., SHAFT, ROCKER
-
63022099 VALVE, INTAKEVALVE, INTAKE
-
71204588 ASM., ARM ROCKER, INTAKE [INCL. ARM, SCREW, NUT]ASM., ARM ROCKER, INTAKE [INCL. ARM, SCREW, NUT]
-
83021865 RETAINER, VALVERETAINER, VALVE
-
93610165 SEALSEAL
-
107043947 SPRING, VALVESPRING, VALVE
-
117081470 KEEPER, VALVEKEEPER, VALVE
-
127519293 SCREWSCREW
-
135136463 SCREW, LASH ADJUSTERSCREW, LASH ADJUSTER
-
147547335 NUT, LOCKNUT, LOCK
-
152540080 JET, OILJET, OIL
-
165813345 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
177518578 SCREWSCREW
-
187519219 BOLTBOLT
-
193022348 GUIDE, VALVEGUIDE, VALVE
-
205137624 PIN-DOWEL,M6X10PIN-DOWEL,M6X10
-
225139884 STUD-EXH MNT M8X1.25X35STUD-EXH MNT M8X1.25X35
