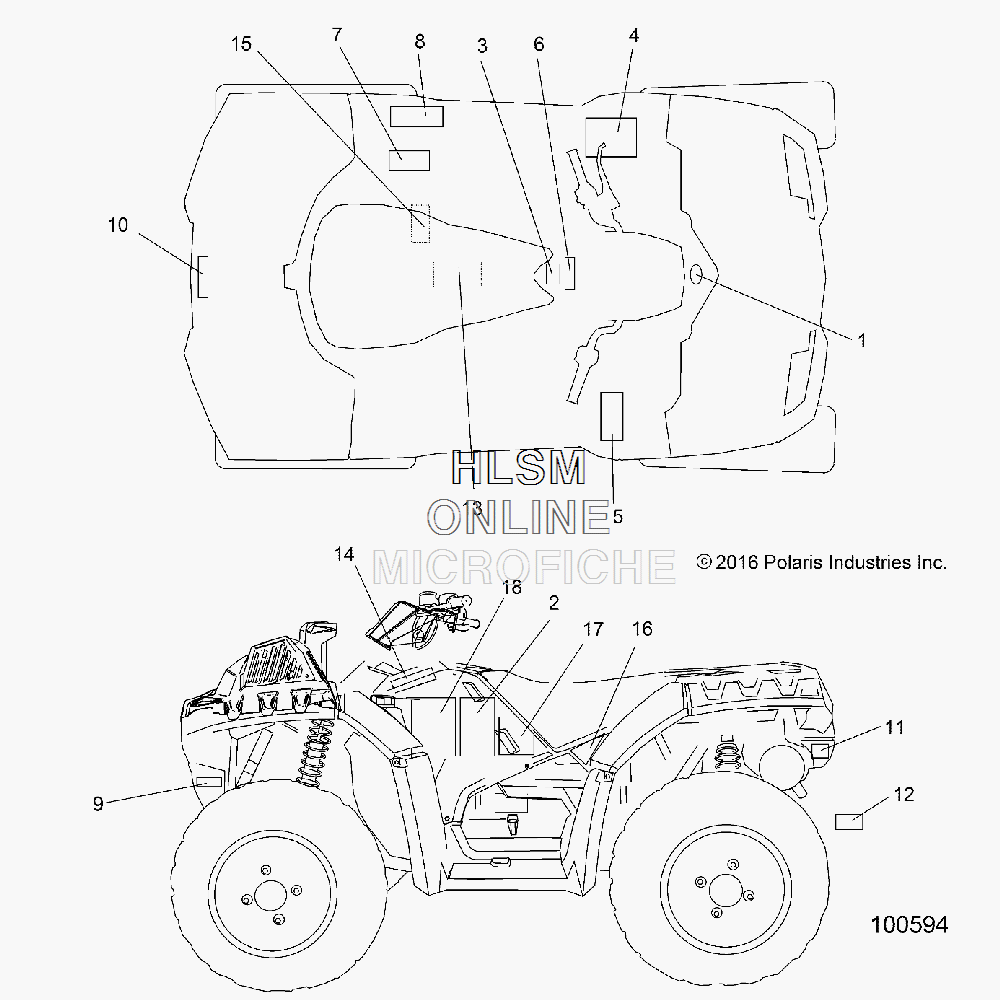

DECALS для Polaris SPORTSMAN 850 HIGH LIFTER VELOCITY BLUE [A17SXN85A5] - 2017 года выпуска
-
№АртикулНазвание
-
17078465 LOGO, POLARIS STARLOGO, POLARIS STAR
-
27184326 DECAL-SIDE,MID,850,LHDECAL-SIDE,MID,850,LH
-
27184327 DECAL-SIDE,MID,850,RHDECAL-SIDE,MID,850,RH
-
32635339 ASM-DECAL,WARN,AGE,OVERRIDE [INCL. 3, 6]ASM-DECAL,WARN,AGE,OVERRIDE [INCL. 3, 6]
-
37175374 DECAL, AGE WARNING, 16DECAL, AGE WARNING, 16
-
47185095 DECAL-WARN,GENERAL,1 OCDECAL-WARN,GENERAL,1 OC
-
57175511 DECAL, WARNING DISCDECAL, WARNING DISC
-
67175512 DECAL, WARNING, OVERRIDE, 4X4 SWITCHDECAL, WARNING, OVERRIDE, 4X4 SWITCH
-
77175378 DECAL, NO PASSENGER, WARNINGDECAL, NO PASSENGER, WARNING
-
87183755 DECAL, WARNING, TIRE/LOADDECAL, WARNING, TIRE/LOAD
-
92636503 ASM-REFLECTOR,AMBER W/VHB TAPEASM-REFLECTOR,AMBER W/VHB TAPE
-
107183751 DECAL, WARNING, FRONT/REAR RACKDECAL, WARNING, FRONT/REAR RACK
-
117175320 DECAL, REFLECTOR, REDDECAL, REFLECTOR, RED
-
127170509 DECAL, HITCHDECAL, HITCH
-
137175488 DECAL, WARNING, CLUTCH COVERDECAL, WARNING, CLUTCH COVER
-
147182926 DECAL, SPORTSMANDECAL, SPORTSMAN
-
157175883 DECAL, CLUTCH, RETAINING BOLTDECAL, CLUTCH, RETAINING BOLT
-
167184330 DECAL-SIDE,AWD,LHDECAL-SIDE,AWD,LH
-
167184331 DECAL-SIDE,AWD,RHDECAL-SIDE,AWD,RH
-
177184328 DECAL-SIDE,REAR,HO,LHDECAL-SIDE,REAR,HO,LH
-
177184329 DECAL-SIDE,REAR,HO,RHDECAL-SIDE,REAR,HO,RH
-
187184324 DECAL-SIDE,FRONT,LHDECAL-SIDE,FRONT,LH
-
187184325 DECAL-SIDE,FRONT,RHDECAL-SIDE,FRONT,RH
