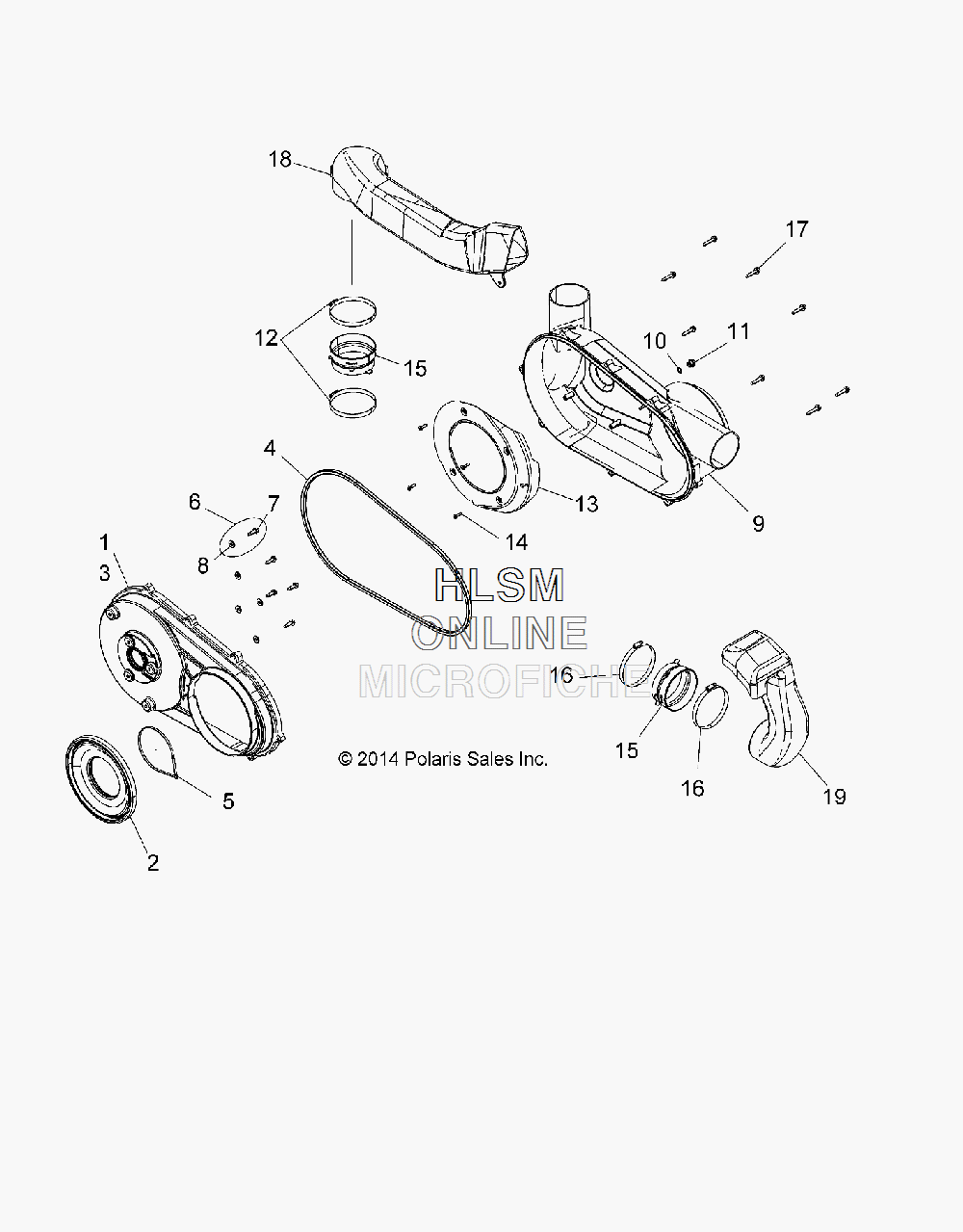

CLUTCH COVER для Polaris SPORTSMAN 570 X2 EPS TRACTOR SAGE BRUSH GREEN METALLIC [A17SWS57C1] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    2634896 ASM., CLUTCH COVER, INNER [INCL. COVER,2,3,4]
    ASM., CLUTCH COVER, INNER [INCL. COVER,2,3,4]
  • 2
    5414727 SEAL, COVER, CLUTCH, INNER
    SEAL, COVER, CLUTCH, INNER
  • 3
    5450209-070 COVER, CLUTCH INNER, BLACK
    COVER, CLUTCH INNER, BLACK
  • 4
    5521738 SEAL, OUTER CLUTCH COVER
    SEAL, OUTER CLUTCH COVER
  • 5
    7082260 STRAP-TIE,SS,14"
    STRAP-TIE,SS,14"
  • 6
    7517599 ASM., BOLT/WASHER
    ASM., BOLT/WASHER
  • 7
    7517312 SCREW
    SCREW
  • 8
    7555748 WASHER
    WASHER
  • 9
    2634897 ASM., COVER, CLUTCH, OUTER [INCL. 10,11,13,14]
    ASM., COVER, CLUTCH, OUTER [INCL. 10,11,13,14]
  • 10
    5410542 O-RING
    O-RING
  • 11
    5434264 PLUG, DRAIN, CLUTCH COVER
    PLUG, DRAIN, CLUTCH COVER
  • 12
    7081626 CLAMP, WORM DRIVE
    CLAMP, WORM DRIVE
  • 13
    5450420 COVER, CLUTCH, INTAKE, BAFFLE
    COVER, CLUTCH, INTAKE, BAFFLE
  • 14
    7512026 SCREW
    SCREW
  • 15
    5414768 BOOT, DUCT, CLUTCH
    BOOT, DUCT, CLUTCH
  • 16
    7081626 CLAMP, WORM DRIVE
    CLAMP, WORM DRIVE
  • 17
    7519849 SCREW
    SCREW
  • 18
    5451354 DUCT, AIR INLET, CLUTCH
    DUCT, AIR INLET, CLUTCH
  • 19
    5450546 DUCT, CLUTCH OUTLET
    DUCT, CLUTCH OUTLET
