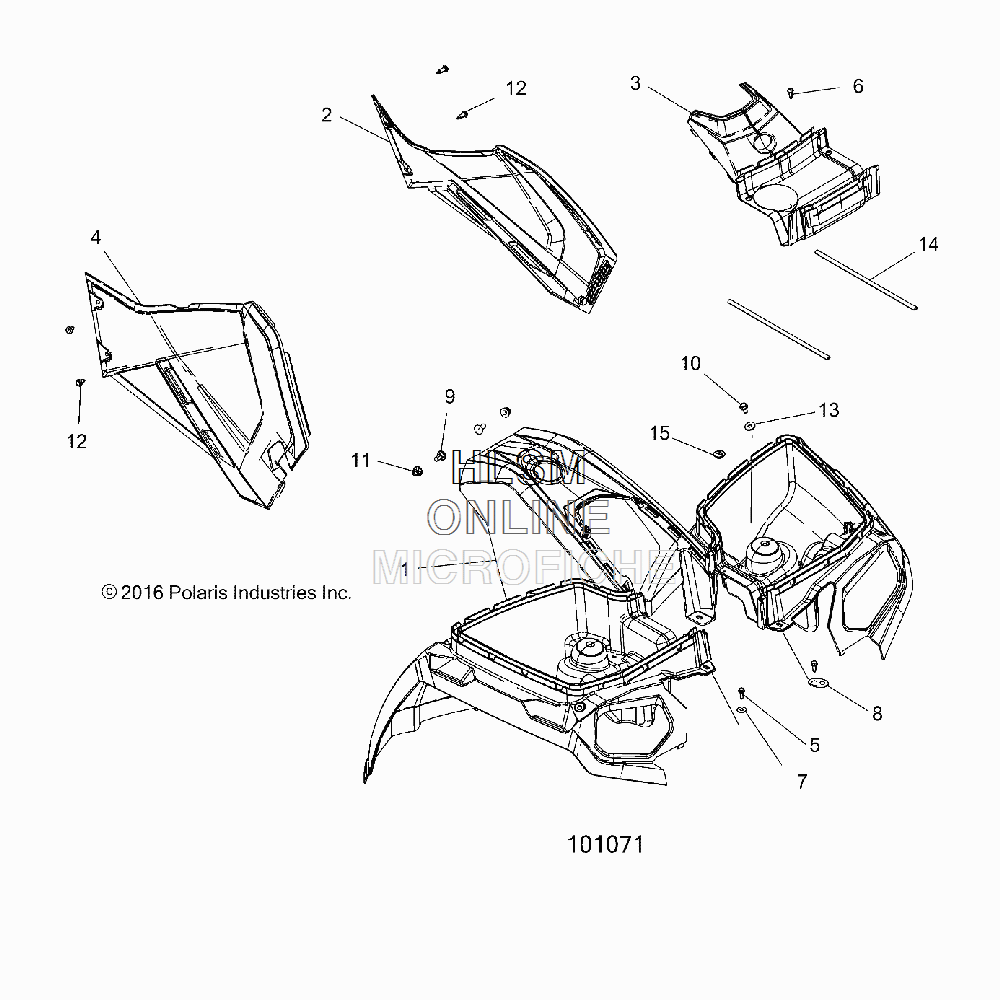

CAB - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 570 EPS EU SP STEALTH BLACK [A17SEE57FL] - 2017 года выпуска
-
№АртикулНазвание
-
12636594-464 ASM-CAB FR,EU,2 OC,PNT,ST BLK [INCL. WARNING DECALS]ASM-CAB FR,EU,2 OC,PNT,ST BLK [INCL. WARNING DECALS]
-
25451308-464 PANEL-SIDE,UPPER,LH,PNTD,S.BLKPANEL-SIDE,UPPER,LH,PNTD,S.BLK
-
35451307-464 COVER-FR,PNTD,STEALTH BLKCOVER-FR,PNTD,STEALTH BLK
-
42636443-464 ASM-PANEL/SHIELD,RH,STEALTH BLKASM-PANEL/SHIELD,RH,STEALTH BLK
-
57512232 SCREWSCREW
-
67519045 SCREWSCREW
-
77555859 WASHER, FLATWASHER, FLAT
-
85258497 BRACKET, PLUG MOUNTBRACKET, PLUG MOUNT
-
97512193 BOLT-1/4-20X3/4-CARR-GR5-YBOLT-1/4-20X3/4-CARR-GR5-Y
-
107515399 SCREWSCREW
-
117542153 NUT, FLANGED, NYLOKNUT, FLANGED, NYLOK
-
127661855 RIVETRIVET
-
137555960 WASHER, FLATWASHER, FLAT
-
145521697-350 SEAL, BULBSEAL, BULB
-
155412981 PLUG, COMPARTMENTPLUG, COMPARTMENT
