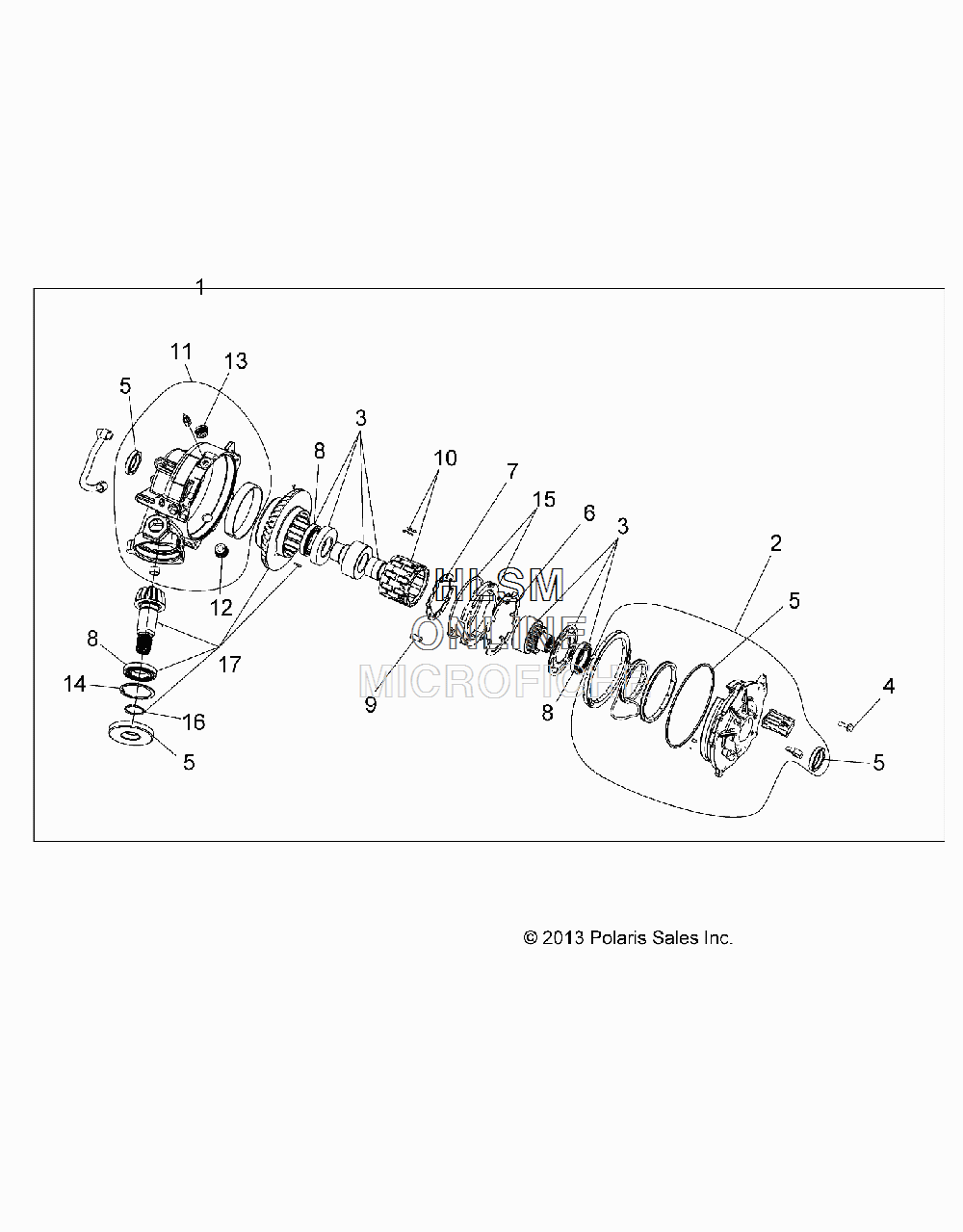

GEARCASE - FRONT для Polaris SPORTSMAN 570 EFI X2 EPS SAGE BRUSH GREEN METALLIC [A17SWE57A1] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1333371 ASM., GEARCASE, RH, ADC, AUTOLOCK [INCL. ALL]
    ASM., GEARCASE, RH, ADC, AUTOLOCK [INCL. ALL]
  • 2
    3235553 ASM., COVER, OUTPUT
    ASM., COVER, OUTPUT
  • 3
    3235554 ASM., OUTPUT HUB
    ASM., OUTPUT HUB
  • 4
    3235469 KIT, FASTENERS
    KIT, FASTENERS
  • 5
    3235470 KIT, SEAL REPAIR
    KIT, SEAL REPAIR
  • 6
    3235485 PLATE, ARMATURE
    PLATE, ARMATURE
  • 7
    3235626 PLATE, ARMATURE, BD
    PLATE, ARMATURE, BD
  • 8
    3234390 BEARING
    BEARING
  • 9
    3235624 KIT, ROLLER [SET OF 20]
    KIT, ROLLER [SET OF 20]
  • 10
    3235625 ASM., ROLL CAGE [INCL. CAGE, 20 CLIPS]
    ASM., ROLL CAGE [INCL. CAGE, 20 CLIPS]
  • 11
    3235555 ASM., GEARCASE
    ASM., GEARCASE
  • 12
    3234412 ASM., PLUG, DRAIN
    ASM., PLUG, DRAIN
  • 13
    3234414 PLUG, OIL FILL
    PLUG, OIL FILL
  • 14
    3234416 RING, RETAINING, INTERNAL
    RING, RETAINING, INTERNAL
  • 15
    3235712 KIT, SPRING
    KIT, SPRING
  • 17
    3235627 ASM., GEAR HOUSING AND PINION GEAR [INCL. PIN]
    ASM., GEAR HOUSING AND PINION GEAR [INCL. PIN]
