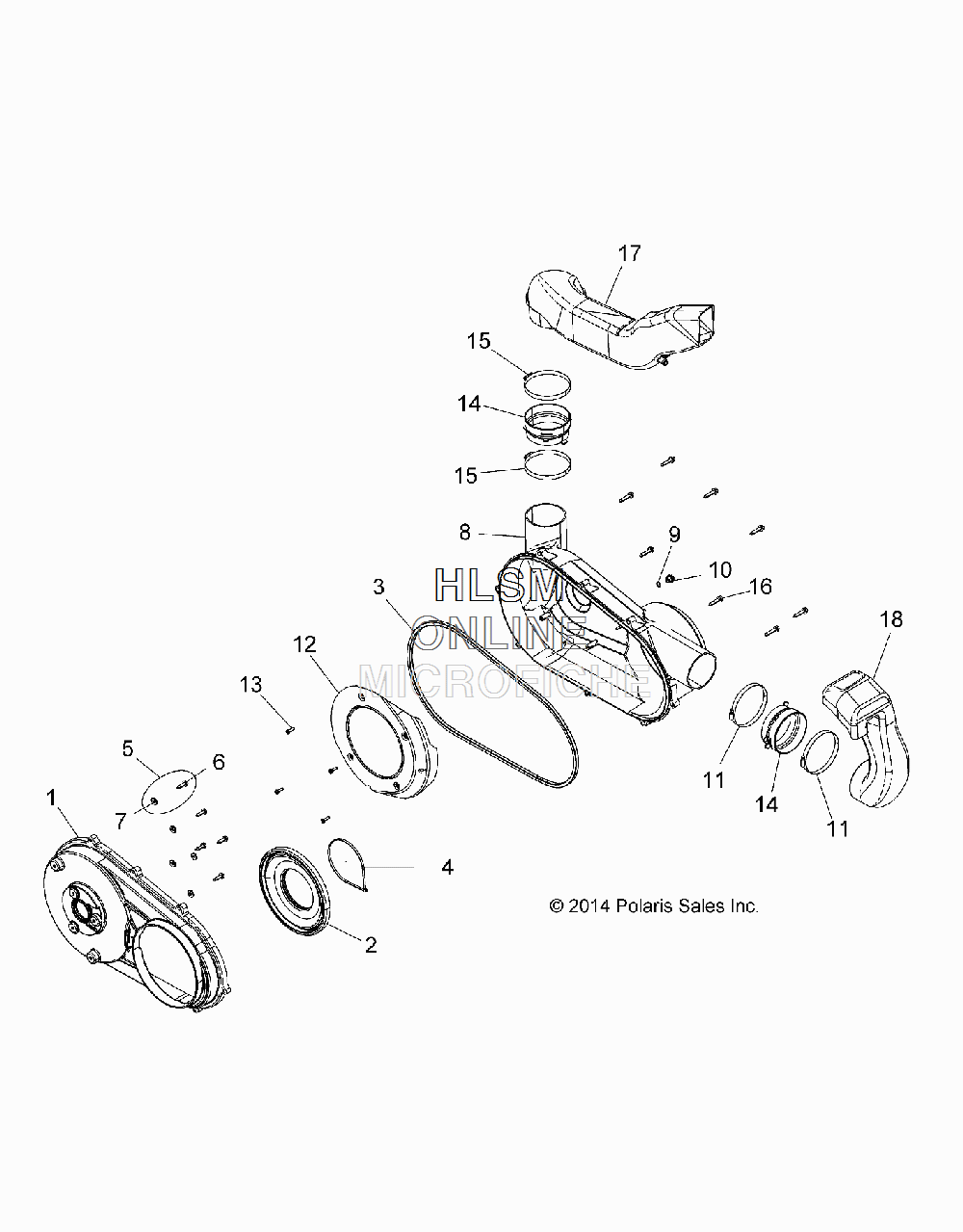

CLUTCH COVER для Polaris SPORTSMAN 570 EFI SAGE BRUSH GREEN METALLIC [A17SEE57A1] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    2634896 ASM., CLUTCH COVER, INNER [INCL. COVER,2,3]
    ASM., CLUTCH COVER, INNER [INCL. COVER,2,3]
  • 2
    5414727 SEAL, CLUTCH COVER, INNER
    SEAL, CLUTCH COVER, INNER
  • 3
    5521738 SEAL, CLUTCH COVER, OUTER
    SEAL, CLUTCH COVER, OUTER
  • 4
    7082260 STRAP-TIE,SS,14"
    STRAP-TIE,SS,14"
  • 5
    7517599 ASM., BOLT/WASHER
    ASM., BOLT/WASHER
  • 6
    7517312 SCREW
    SCREW
  • 7
    7555748 WASHER
    WASHER
  • 8
    2634897 ASM., CLUTCH COVER, OUTER [INCL. 10,12,13,14]
    ASM., CLUTCH COVER, OUTER [INCL. 10,12,13,14]
  • 9
    5410542 O-RING
    O-RING
  • 10
    5434264 PLUG, DRAIN, CLUTCH COVER
    PLUG, DRAIN, CLUTCH COVER
  • 11
    7081626 CLAMP, WORM DRIVE
    CLAMP, WORM DRIVE
  • 12
    5450420 COVER, CLUTCH, INTAKE, BAFFLE
    COVER, CLUTCH, INTAKE, BAFFLE
  • 13
    7512026 SCREW
    SCREW
  • 14
    5414768 BOOT, DUCT, CLUTCH
    BOOT, DUCT, CLUTCH
  • 15
    7081626 CLAMP, WORM DRIVE
    CLAMP, WORM DRIVE
  • 16
    7519849 SCREW
    SCREW
  • 17
    5451155 DUCT, CLUTCH AIR INLET
    DUCT, CLUTCH AIR INLET
  • 17
    5413465 PAD-FOAM
    PAD-FOAM
  • 18
    5450546 DUCT, CLUTCH OUTLET
    DUCT, CLUTCH OUTLET
