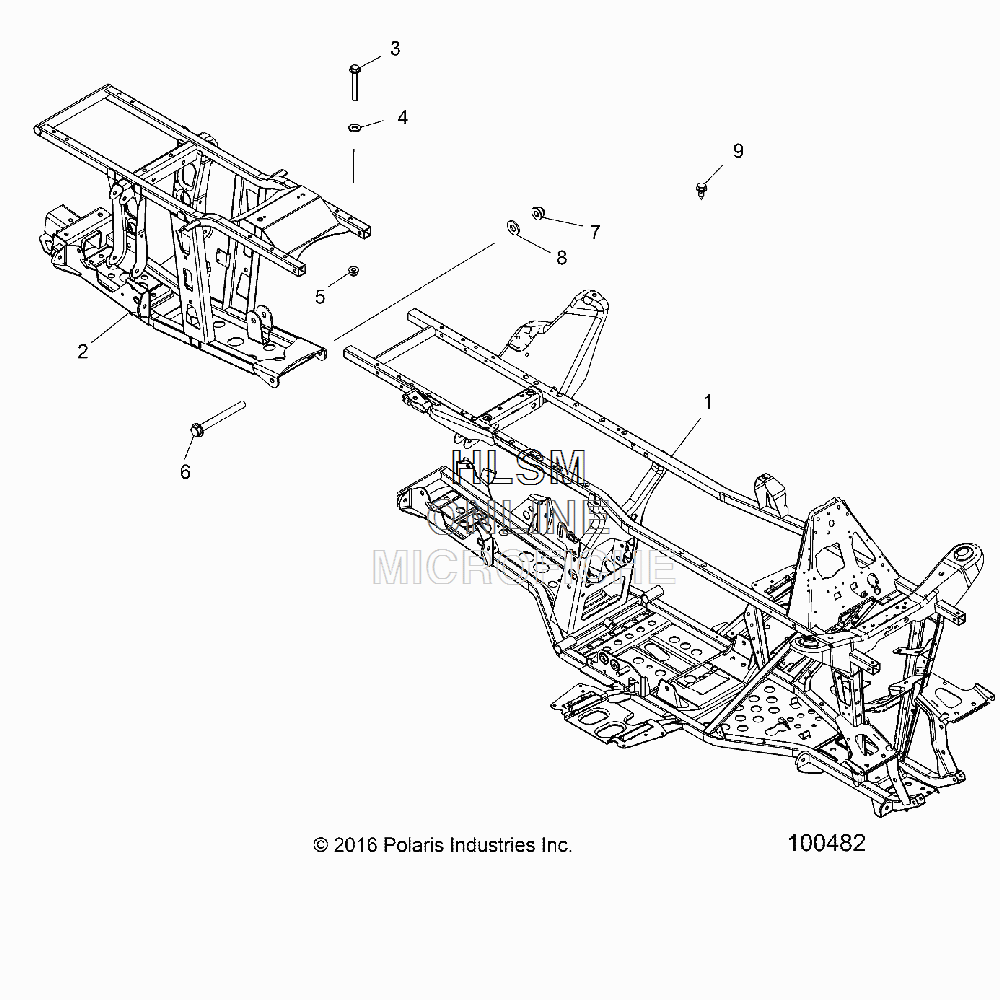

FRAME для Polaris SPORTSMAN 570 6X6 TRACTOR [A17S6S57C1] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1021608-458 WELD-MAIN FRAME,570 6X6, M.BLK
    WELD-MAIN FRAME,570 6X6, M.BLK
  • 1
    5254722-458 PLATE-MANUFACTURER,M.BLK
    PLATE-MANUFACTURER,M.BLK
  • 1
    7661637 RIVET-3/16-.090-.290
    RIVET-3/16-.090-.290
  • 2
    1022359-458 WELD-FRAME,REAR,6X6,TRC,M.BLK
    WELD-FRAME,REAR,6X6,TRC,M.BLK
  • 3
    7515346 SCR-5/16-18X3 HX CP GR5-Y
    SCR-5/16-18X3 HX CP GR5-Y
  • 4
    7555734 WASHER-.344X.875X.063,FL-Y
    WASHER-.344X.875X.063,FL-Y
  • 5
    7542343 NUT-5/16-18 HX FLG NL-Y
    NUT-5/16-18 HX FLG NL-Y
  • 6
    7519039 SCR-7/16-20X7.25-HX-FL-CP-GR5Y
    SCR-7/16-20X7.25-HX-FL-CP-GR5Y
  • 7
    7547066 NUT-7/16-20,NYLON,Y
    NUT-7/16-20,NYLON,Y
  • 8
    7556212 WASHER-7/16 SAE,STF,THRU-HRD-Y
    WASHER-7/16 SAE,STF,THRU-HRD-Y
  • 9
    7517386 SCR-1/4-20X5/8,TAP/R-Y
    SCR-1/4-20X5/8,TAP/R-Y
