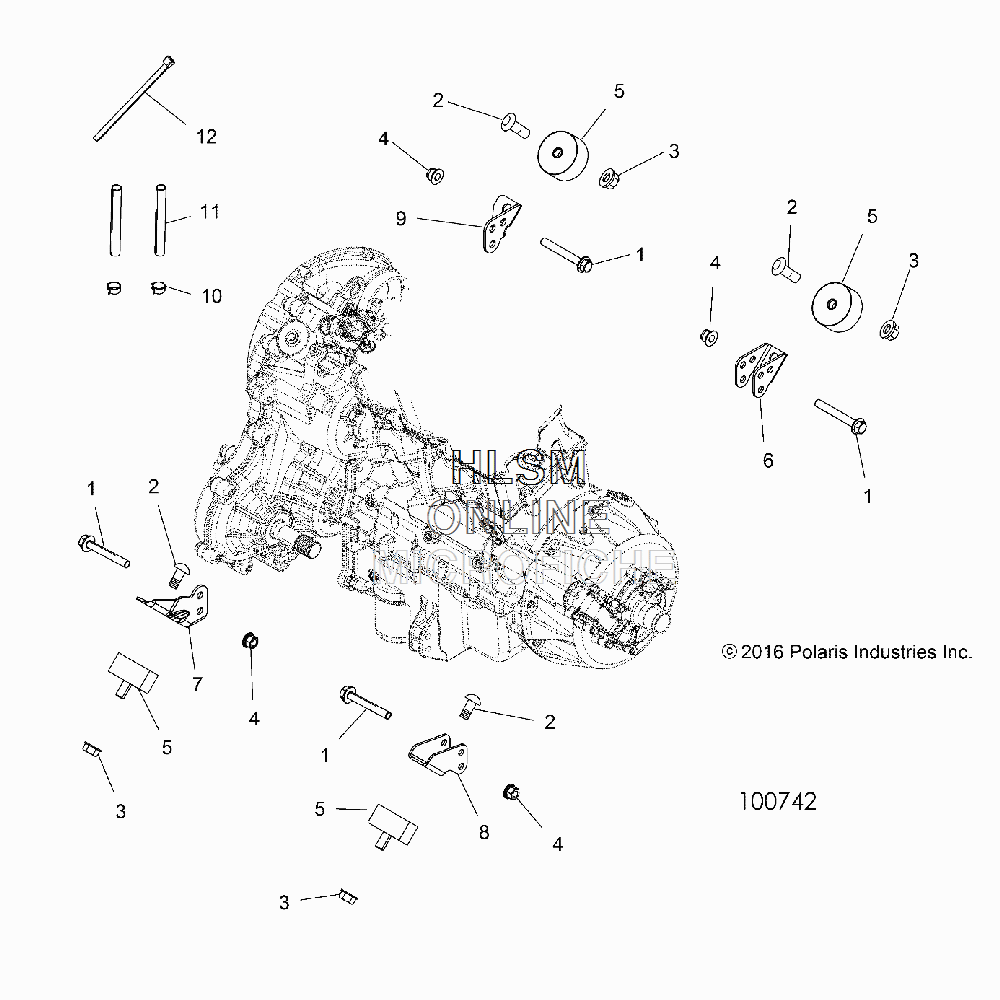

MOUNTING - ENGINE W/TRANSMISSION для Polaris SPORTSMAN 1000 XP MD STEALTH BLACK [A17SXE95NL] - 2017 года выпуска`
-
№АртикулНазвание
-
17516732 SCREW, FLANGESCREW, FLANGE
-
27519032 SCREWSCREW
-
37547313 NUT, FLANGENUT, FLANGE
-
47547317 NUT, FLANGENUT, FLANGE
-
53022154 ISOLATORISOLATOR
-
65251716 BRACKET, TRANSMISSION MOUNT, LHBRACKET, TRANSMISSION MOUNT, LH
-
75252091 BRACKET, TRANSMISSION, RHBRACKET, TRANSMISSION, RH
-
85251717 BRACKET, ENGINE, MOUNT, RHBRACKET, ENGINE, MOUNT, RH
-
95253340 BRACKET, TRANSMISSION, LHBRACKET, TRANSMISSION, LH
-
107081432 CLAMP-HOSE, 17/32, GREEN [TRANSMISSION VENTING]CLAMP-HOSE, 17/32, GREEN [TRANSMISSION VENTING]
-
118450040-600 LINE, FUEL [TRANSMISSION VENTING]LINE, FUEL [TRANSMISSION VENTING]
-
127080492 STRAP-PANDUIT, 7"STRAP-PANDUIT, 7"
-
127080761 STRAP-PANDUIT,14"STRAP-PANDUIT,14"
