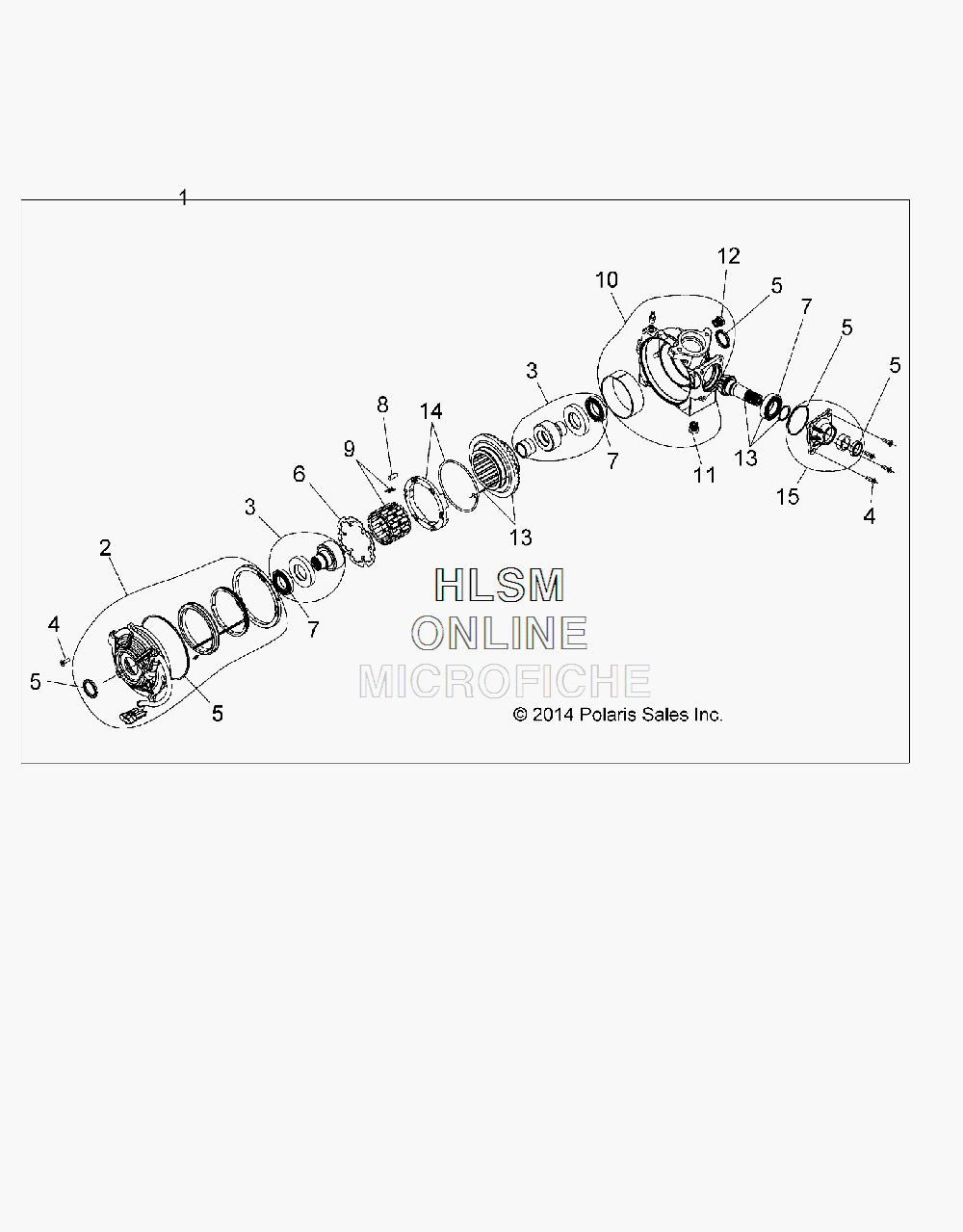

GEARCASE - INTERNAL COMPONENTS - FRONT для Polaris SCRAMBLER XP 1000 TITANIUM METALLIC [A17SVE95AM] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1333569 ASM., GEARCASE, FRONT [INCL. ALL]
    ASM., GEARCASE, FRONT [INCL. ALL]
  • 2
    3235634 ASSY, COVR OUTLET [INCL. O-RING, 4WD COIL, SPACER, CLIP, INSERT, COVER, PIN, SEAL, WIRING]
    ASSY, COVR OUTLET [INCL. O-RING, 4WD COIL, SPACER, CLIP, INSERT, COVER, PIN, SEAL, WIRING]
  • 3
    3235911 KIT, HUB ASSEMBLY [INCL. BEARINGS, BUSHING, HUBS, SPACERS]
    KIT, HUB ASSEMBLY [INCL. BEARINGS, BUSHING, HUBS, SPACERS]
  • 4
    3235433 KIT, FASTENERS [INCL. QTY 10 SCREWS]
    KIT, FASTENERS [INCL. QTY 10 SCREWS]
  • 5
    3235434 COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]
    COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]
  • 6
    3235485 PLATE, 4WD ARMATURE
    PLATE, 4WD ARMATURE
  • 7
    3235435 BEARINGS [INCL. ALL BEARINGS]
    BEARINGS [INCL. ALL BEARINGS]
  • 8
    3235624 CLUTCH, ROLLERS [INCL. SET OF 24]
    CLUTCH, ROLLERS [INCL. SET OF 24]
  • 9
    3235625 ASM., ROLL CAGE [INCL. CAGE, QTY 24 CLIPS]
    ASM., ROLL CAGE [INCL. CAGE, QTY 24 CLIPS]
  • 10
    3235436 ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT]
    ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT]
  • 11
    2203738 DRAIN PLUG
    DRAIN PLUG
  • 12
    2203739 FILL PLUG
    FILL PLUG
  • 13
    3235636 KIT, GEAR HOUSING & PINION GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR]
    KIT, GEAR HOUSING & PINION GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR]
  • 14
    3235712 KIT, TORSION SPRING & RETAINER
    KIT, TORSION SPRING & RETAINER
  • 15
    3235438 KIT, INPUT COVER [INCL. O-RING, COVER, BUSHING, SEAL]
    KIT, INPUT COVER [INCL. O-RING, COVER, BUSHING, SEAL]
