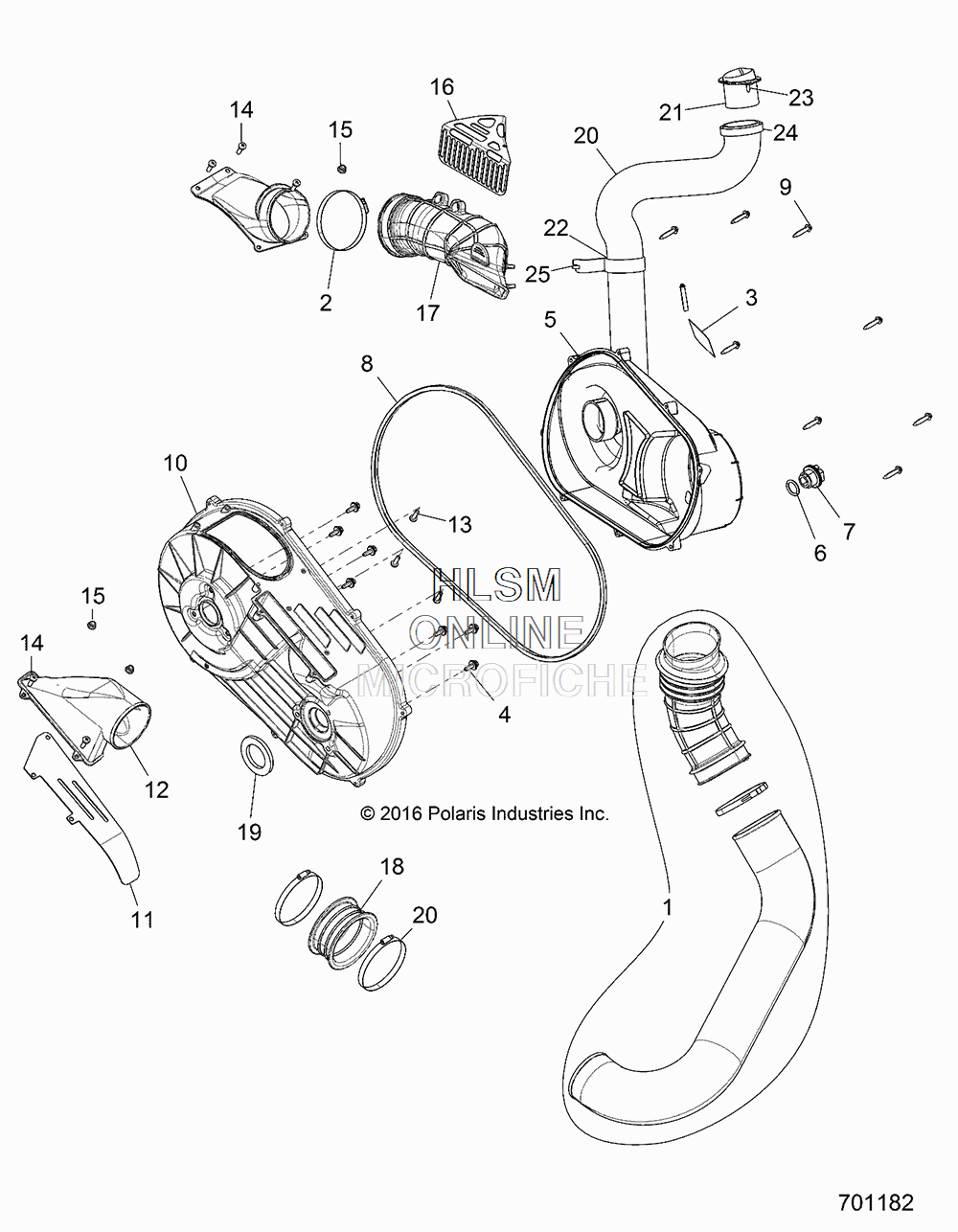

CLUTCH COVER AND DUCTING для Polaris RZR XP 4 1000 MD [Z17VFE99NM] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1240782 ASM., INTAKE, CLUTCH DUCT
    ASM., INTAKE, CLUTCH DUCT
  • 2
    7081626 CLAMP, WORM DRIVE
    CLAMP, WORM DRIVE
  • 3
    7177469 DECAL, BELT, CAUTION/CHECK
    DECAL, BELT, CAUTION/CHECK
  • 4
    7519278 ASM., BOLT AND WASHER
    ASM., BOLT AND WASHER
  • 5
    2635611 ASM., COVER, CLUTCH, OUTER [INCL. 6,7]
    ASM., COVER, CLUTCH, OUTER [INCL. 6,7]
  • 6
    5410542 O-RING
    O-RING
  • 7
    5434264 PLUG, DRAIN, CLUTCH COVER
    PLUG, DRAIN, CLUTCH COVER
  • 8
    5521831 SEAL, OUTER CLUTCH COVER
    SEAL, OUTER CLUTCH COVER
  • 9
    7519330 SCREW
    SCREW
  • 10
    2635158 ASM., COVER, CLUTCH, INNER [INCL. 11-15]
    ASM., COVER, CLUTCH, INNER [INCL. 11-15]
  • 11
    5256223 BRACKET, GUARD, CLUTCH COVER
    BRACKET, GUARD, CLUTCH COVER
  • 12
    5439086 DUCT, CLUTCH, AIR INLET
    DUCT, CLUTCH, AIR INLET
  • 13
    7518546 SCREW
    SCREW
  • 14
    7519205 SCREW
    SCREW
  • 15
    7547453 NUT, NYLOK
    NUT, NYLOK
  • 16
    5256957 BRACKET, SCREEN, BELT
    BRACKET, SCREEN, BELT
  • 17
    5414537 HOSE, CLUTCH, AIR OUTLET
    HOSE, CLUTCH, AIR OUTLET
  • 18
    5813639 BOOT, INTAKE, CLUTCH
    BOOT, INTAKE, CLUTCH
  • 19
    5813708 SEAL, COVER, PTO
    SEAL, COVER, PTO
  • 20
    5415317 HOSE, CLUTCH INTAKE
    HOSE, CLUTCH INTAKE
  • 21
    5451776 BOOT, PLASTIC, INTAKE
    BOOT, PLASTIC, INTAKE
  • 22
    7082035 CLAMP, LARGE
    CLAMP, LARGE
  • 23
    7519045 SCREW
    SCREW
  • 24
    7080907 CLAMP-HOSE,3.75,SS
    CLAMP-HOSE,3.75,SS
  • 25
    7519342 SCR-TFHFL-M6X1.0X25,ZOD
    SCR-TFHFL-M6X1.0X25,ZOD
