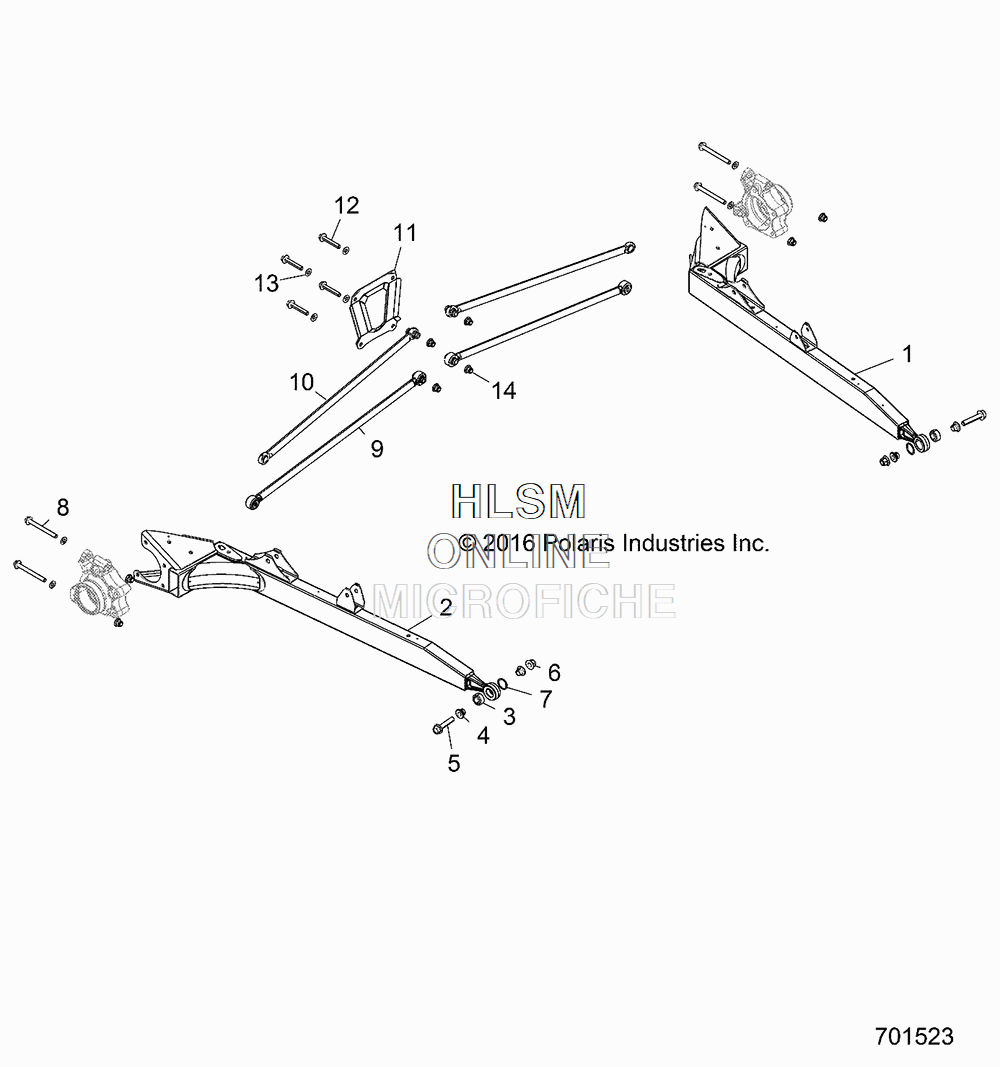

REAR CONTROL ARMS для Polaris RZR XP 1000 MD [Z17VDE99NM] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1019356-293 WELD-TRL ARM,LEFT HAND,I.RED
    WELD-TRL ARM,LEFT HAND,I.RED
  • 2
    1019357-293 WELD-TRL ARM,RIGHT HAND,I.RED
    WELD-TRL ARM,RIGHT HAND,I.RED
  • 3
    3514689 BEARING, SPHERICAL
    BEARING, SPHERICAL
  • 4
    5336751 BUSHING, REDUCER
    BUSHING, REDUCER
  • 5
    7519138 SCREW
    SCREW
  • 6
    7547334 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 7
    7710437 RING, RETAINER
    RING, RETAINER
  • 8
    7519284 SCREW
    SCREW
  • 9
    1543204-293 ASM-RADIUS ROD,BTM,I.RED
    ASM-RADIUS ROD,BTM,I.RED
  • 10
    1543377-293 ASM-RADIUS ROD,I RED
    ASM-RADIUS ROD,I RED
  • 11
    5259640-458 PLATE-REAR,BOLT BRACE,BLK
    PLATE-REAR,BOLT BRACE,BLK
  • 12
    7519306 SCREW
    SCREW
  • 13
    7556153 WASHER-3/8 FW SAE STL THRU-HRD
    WASHER-3/8 FW SAE STL THRU-HRD
  • 14
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
