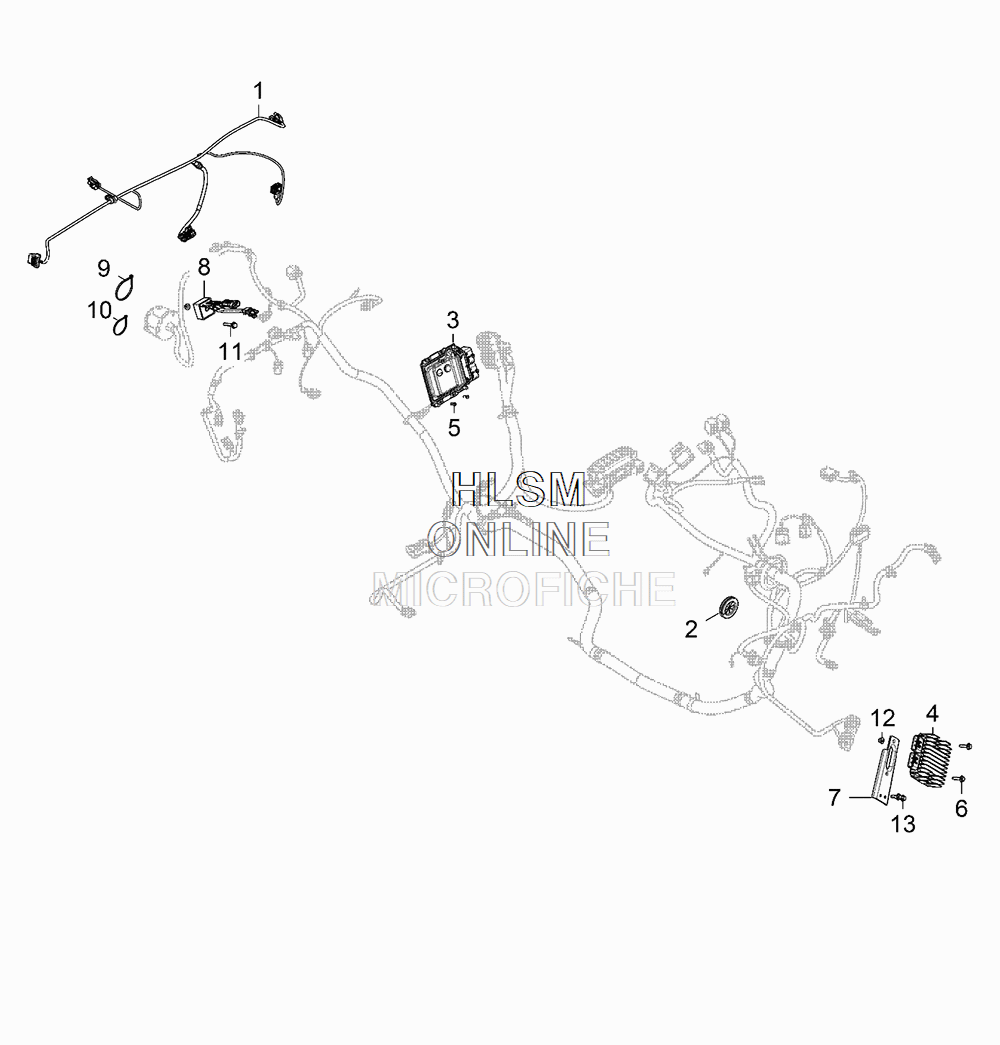

ELECTRICAL - BOX HARNESS- REG.- RELAY- ECU для Polaris RZR 900 TRACTOR (WHITE LIGHTNING) [PZ17VBS87C2] - 2017 года выпуска`
-
№АртикулНазвание
-
12413529 HARNESS-BOX,RZR,TRHARNESS-BOX,RZR,TR
-
25414440 GROMMETGROMMET
-
34014125 ECM, NO STARTECM, NO START
-
44014856 REGULATOR-3PH,50A,SERIES,HISPDREGULATOR-3PH,50A,SERIES,HISPD
-
57519091 SCREWSCREW
-
67519342 SCR-TFHFL-M6X1.0X25,ZODSCR-TFHFL-M6X1.0X25,ZOD
-
75262740-329 BRKT-MOUNT,REGULATOR,BLKBRKT-MOUNT,REGULATOR,BLK
-
84012829 RELAY, SOLID STATE,9A,LONG LDRELAY, SOLID STATE,9A,LONG LD
-
97080138 PANDUIT STRAPPANDUIT STRAP
-
107080761 STRAP-PANDUIT,14"STRAP-PANDUIT,14"
-
117518612 SCR-HXFL-M6X1.0X35 8.8 ZODSCR-HXFL-M6X1.0X35 8.8 ZOD
-
127547339 NUT-M6X1.0,FLG-NYLOC-OLIVE DNUT-M6X1.0,FLG-NYLOC-OLIVE D
-
137518529 SCR-M6X1.0X20,HXHD,FLG,TDFM,BLSCR-M6X1.0X20,HXHD,FLG,TDFM,BL
