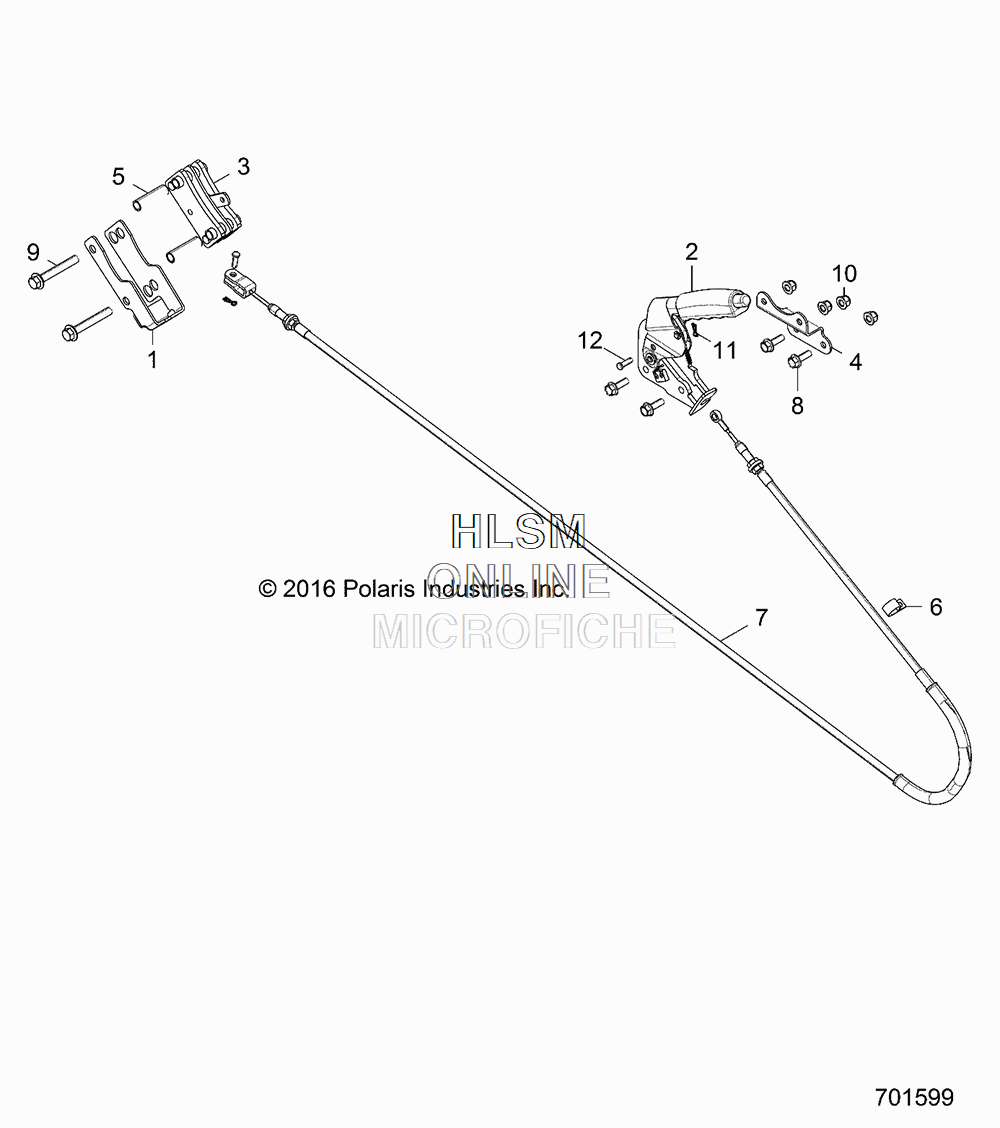

BRAKES - PARKING BRAKE для Polaris RZR 900 MD (WHITE LIGHTNING) [PZ17VBE87F2] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1021273-458 WELD-BRKT,PB,CABLE,MBLK
    WELD-BRKT,PB,CABLE,MBLK
  • 2
    1911573 ASM-LEVER,PARK BRAKE
    ASM-LEVER,PARK BRAKE
  • 3
    1911972 ASM-CLPR,PB,AFT-SB230C,RVT,MNI
    ASM-CLPR,PB,AFT-SB230C,RVT,MNI
  • 4
    5258940 BRKT-MNT,PARK BRAKE LEVER
    BRKT-MNT,PARK BRAKE LEVER
  • 5
    5336804 SPACER,PARKING BRAKE, 2"
    SPACER,PARKING BRAKE, 2"
  • 6
    7081116 CLAMP-RUBBER COATED,.75" ID
    CLAMP-RUBBER COATED,.75" ID
  • 7
    7081965 CABLE-PARKING BRAKE,TW,73"
    CABLE-PARKING BRAKE,TW,73"
  • 8
    7518514 SCR-HXFL-M8X1.25X25 8.8 ZOD
    SCR-HXFL-M8X1.25X25 8.8 ZOD
  • 9
    7518561 BOLT-M10X1.25X70,HXFLG-OLIVE D
    BOLT-M10X1.25X70,HXFLG-OLIVE D
  • 10
    7547332 NUT-M8X1.25,FLG,NYLOC-OLIVE D
    NUT-M8X1.25,FLG,NYLOC-OLIVE D
  • 11
    7661140 PIN-CLIP,14MM
    PIN-CLIP,14MM
  • 12
    7661843 PIN-CLEVIS, 1/4 X 3/4 -Y
    PIN-CLEVIS, 1/4 X 3/4 -Y
