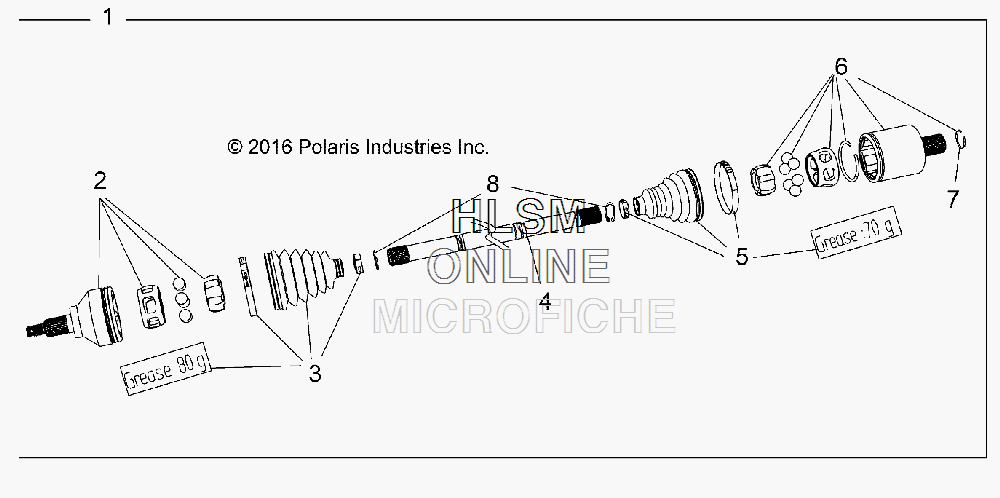

DRIVESHAFT - REAR (TO 8/29/16) для Polaris FARMHAND 450 HD 2X4 [17SAH50A5] - 2017 года выпуска`
-
№АртикулНазвание
-
11333677 ASM-DRIVE SHAFT,SPMN,RR,32 DEG [INCL. 2-8]ASM-DRIVE SHAFT,SPMN,RR,32 DEG [INCL. 2-8]
-
15414534 O-RING,25.12MMX1.78MMO-RING,25.12MMX1.78MM
-
23236010 JOINT, OUTERJOINT, OUTER
-
33236003 KIT, BOOT, OUTERKIT, BOOT, OUTER
-
43236014 BARBAR
-
53235934 KIT, BOOT, INNERKIT, BOOT, INNER
-
63236009 JOINT, INNERJOINT, INNER
-
73235780 CIRCLIPCIRCLIP
-
83236015 CIRCLIPCIRCLIP
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY
- BRAKE - FRONT CALIPER
- BRAKE - FRONT CALIPER MOUNT
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - PEDAL W/MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE LINES
- BUMPER - FRONT
- CAB - FRONT W/ SIDE PANELS
- CAB - FRONT W/ STORAGE
- CAB - REAR - SEAT W/FOOTWELLS
- CAM CHAIN W/ SPROCKET
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON AND BALANCE SHAFT
- CYLINDER
- CYLINDER HEAD - CAM - VALVES
- DECALS
- DRIVESHAFT - REAR (FROM 8/29/16 AND AFTER)
- • DRIVESHAFT - REAR (TO 8/29/16)
- ELECTRICAL - BULBS
- ELECTRICAL - WIRING HARNESS- MAIN
- ELECTRICAL COMPONENTS
- ENGINE - LONG BLOCK
- ENGINE - MOUNTING
- EXHAUST SYSTEM
- FRAME
- FUEL TANK
- GAUGES AND INDICATORS
- GEAR SELECTOR
- GEARCASE
- GEARCASE - MAIN - MOUNTING
- HANDLEBAR - CONTROL ASSY.
- HEADLIGHT
- HEADLIGHT POD
- IGNITION COIL W/ WIRE AND SPARK PLUG
- MANUAL - OWNERS
- OIL FILTER AND DIPSTICK
- OIL PUMP
- RACK - REAR
- SIDE PANEL - RIGHT W/ HEAT SHIELD AND 1 UP HARDWARE
- STARTING MOTOR
- STATOR COVER AND FLYWHEEL
- STEERING POST
- STORAGE BOX - REAR
- SUSPENSION - A-ARM/STRUT - MOUNTING
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- SUSPENSION - TORSION BAR
- TAIL LIGHT
- THERMOSTAT W/ COVER
- THROTTLE ASSEMBLY
- THROTTLE BODY W/ FUEL RAIL
- TOOL KIT
- VALVE COVER
- WATER PUMP IMPELLER W/ COVER
- WHEEL - FRONT W/BRAKE DISK
- WHEEL - REAR W/BRAKE DISK
