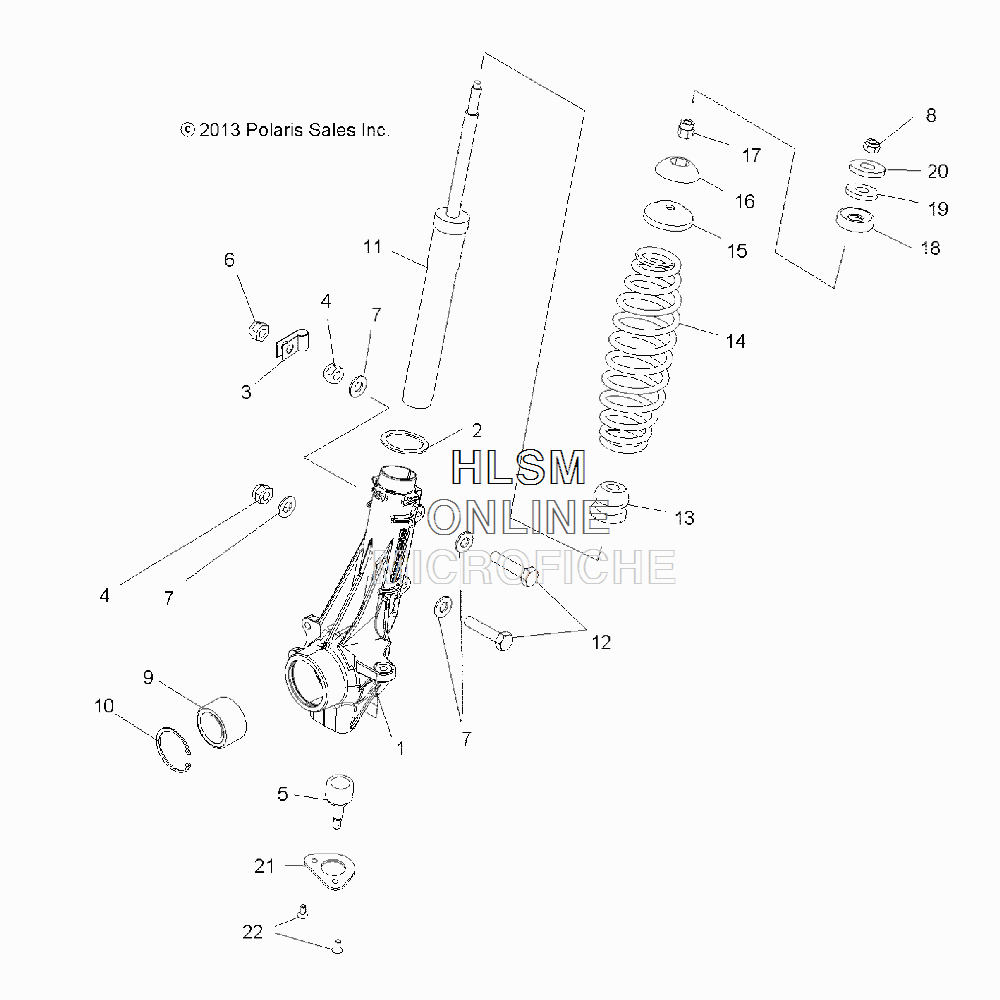

SUSPENSION - FRONT STRUT для Polaris ACE 570 HD EFI [A17DAH57A5] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1824298 ASM., HUBSTRUT, LH, 4X4 [INCL. 5,9,10,21,22]
    ASM., HUBSTRUT, LH, 4X4 [INCL. 5,9,10,21,22]
  • 1
    1824299 ASM., HUBSTRUT, RH, 4X4 [INCL. 5,9,10,21,22]
    ASM., HUBSTRUT, RH, 4X4 [INCL. 5,9,10,21,22]
  • 2
    5211115 WASHER
    WASHER
  • 3
    7080367 CLAMP, CABLE
    CLAMP, CABLE
  • 4
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 5
    7061193 JOINT, BALL GREASELESS
    JOINT, BALL GREASELESS
  • 6
    7542344 NUT, NYLOK, THIN
    NUT, NYLOK, THIN
  • 7
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 8
    7547104 NUT
    NUT
  • 9
    3514634 BEARING, WHEEL
    BEARING, WHEEL
  • 10
    7710507 RING, RETAINING
    RING, RETAINING
  • 11
    7041762 STRUT, FRONT
    STRUT, FRONT
  • 12
    7512312 BOLT
    BOLT
  • 13
    5412665 BUMPER
    BUMPER
  • 14
    7044267-458 SPG-COMP,45-90#,13.51,3.7,M.BK
    SPG-COMP,45-90#,13.51,3.7,M.BK
  • 15
    5243364 RETAINER, SPRING
    RETAINER, SPRING
  • 16
    5432871 BALL, PIVOT, BOTTOM
    BALL, PIVOT, BOTTOM
  • 17
    5132062 SPACER
    SPACER
  • 18
    5432872 BALL, PIVOT, TOP
    BALL, PIVOT, TOP
  • 19
    5810291 SPACER, RUBBER
    SPACER, RUBBER
  • 20
    7555749 WASHER
    WASHER
  • 21
    5258210 BRACKET, BALL JOINT
    BRACKET, BALL JOINT
  • 22
    7512284 BOLT, SOCKET
    BOLT, SOCKET
