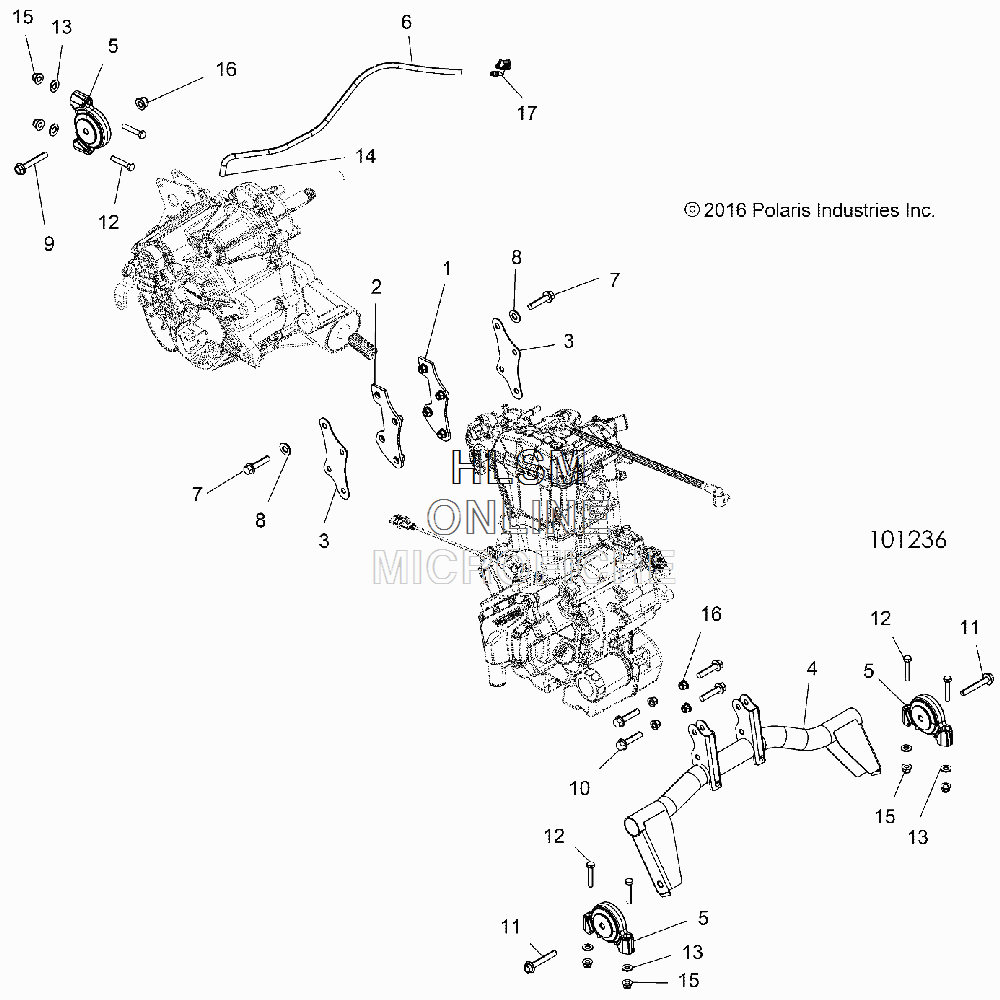

MOUNTING - ENGINE W/TRANSMISSION для Polaris ACE 570 EFI EURO [A17DAA57F5] - 2017 года выпуска`
-
№АртикулНазвание
-
11018420 TRANSMISSION, INNER, LEFTTRANSMISSION, INNER, LEFT
-
21018421 TRANSMISSION, INNER, RIGHTTRANSMISSION, INNER, RIGHT
-
35255321 BRACKET, COUPLER, TRANSMISSION, OUTERBRACKET, COUPLER, TRANSMISSION, OUTER
-
41021995-329 MOUNT, ENGINE, FRONT, E-COATMOUNT, ENGINE, FRONT, E-COAT
-
51332955 MOUNT, ISOLATOR, DRIVELINEMOUNT, ISOLATOR, DRIVELINE
-
68450040-600 LINE, VENTLINE, VENT
-
67670116 CLIP-ROUTING,.472 B.D.,HINGEDCLIP-ROUTING,.472 B.D.,HINGED
-
77518971 SCREWSCREW
-
87556153 WASHERWASHER
-
97518563 BOLTBOLT
-
107519332 SCREWSCREW
-
117518826 BOLTBOLT
-
127519097 SCREWSCREW
-
137547030 NUT, PALNUT, PAL
-
147081432 CLAMP-HOSE, 17/32, GREENCLAMP-HOSE, 17/32, GREEN
-
157547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
167547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
175453464 FITTING-VENT LINE,90FITTING-VENT LINE,90
