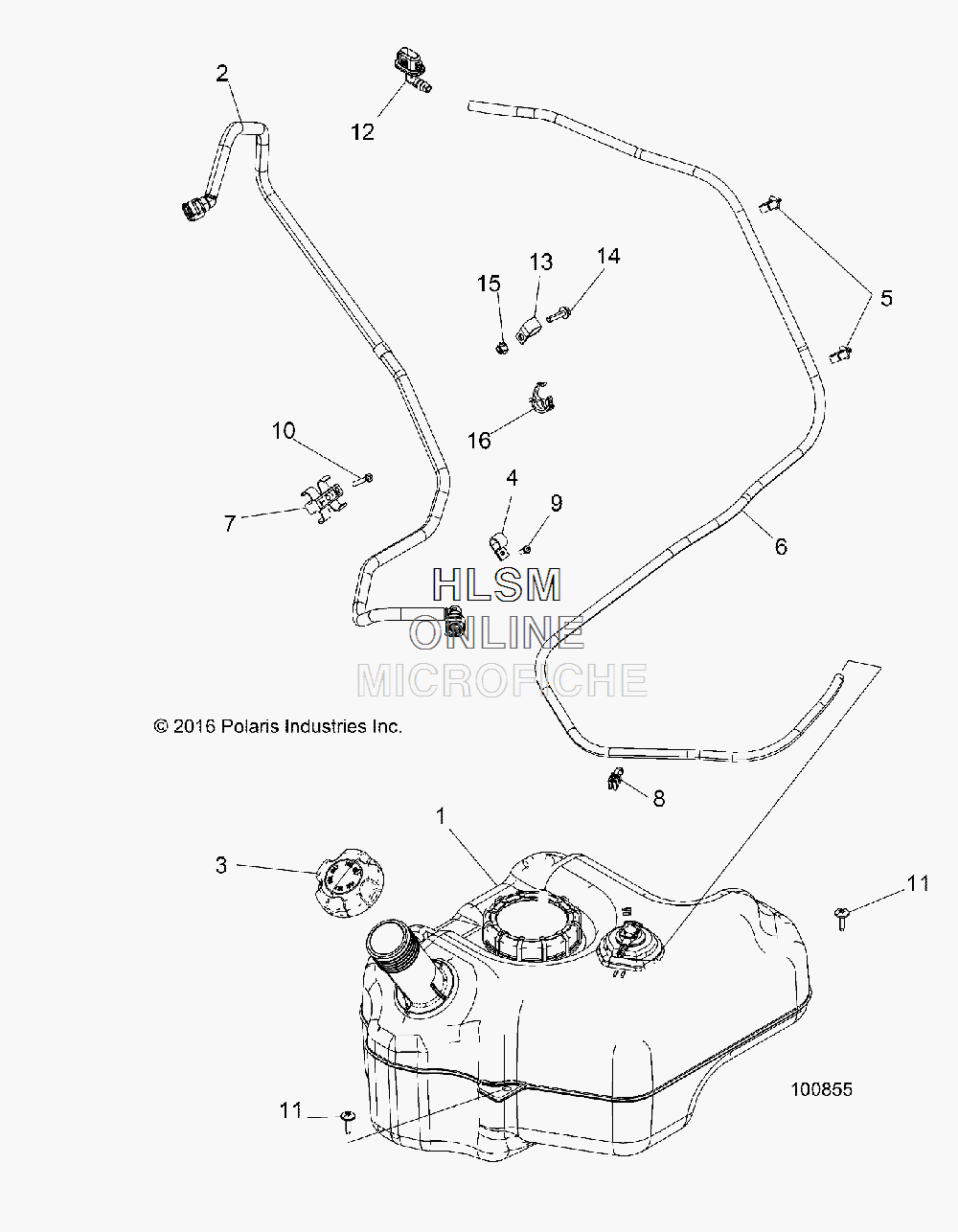

FUEL TANK для Polaris ACE 500 SOHC [A17DAA50A7] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    2521691 ASM-FUEL TANK
    ASM-FUEL TANK
  • 1
    2521693 ASM-FUEL PUMP
    ASM-FUEL PUMP
  • 2
    2521722 ASM-FUEL LINE,RAIL
    ASM-FUEL LINE,RAIL
  • 3
    5439075 CAP, GAS TANK
    CAP, GAS TANK
  • 4
    7080499 CLAMP, CABLE
    CLAMP, CABLE
  • 5
    7670116 CLIP, ROUTING, HINGED
    CLIP, ROUTING, HINGED
  • 6
    8450040-600 FUEL LINE
    FUEL LINE
  • 7
    7081689 T-CLIP, T15
    T-CLIP, T15
  • 8
    7082038 STRAP, CABLE TIE W/EDGE CLIP
    STRAP, CABLE TIE W/EDGE CLIP
  • 9
    7512024 SCREW
    SCREW
  • 10
    7512025 SCREW
    SCREW
  • 11
    7519650 SCREW
    SCREW
  • 12
    5453464 FITTING-VENT LINE,90
    FITTING-VENT LINE,90
  • 13
    7080880 CLAMP-HOSE,.625 DIA VNL COATED
    CLAMP-HOSE,.625 DIA VNL COATED
  • 14
    7518533 SCR-HXFL-M6X1.0X25 8.8 RIE
    SCR-HXFL-M6X1.0X25 8.8 RIE
  • 15
    7547339 NUT-M6X1.0,FLG-NYLOC-OLIVE D
    NUT-M6X1.0,FLG-NYLOC-OLIVE D
  • 16
    7081871 CLIP-HARNESS 3-13MM INTERLCK
    CLIP-HARNESS 3-13MM INTERLCK
