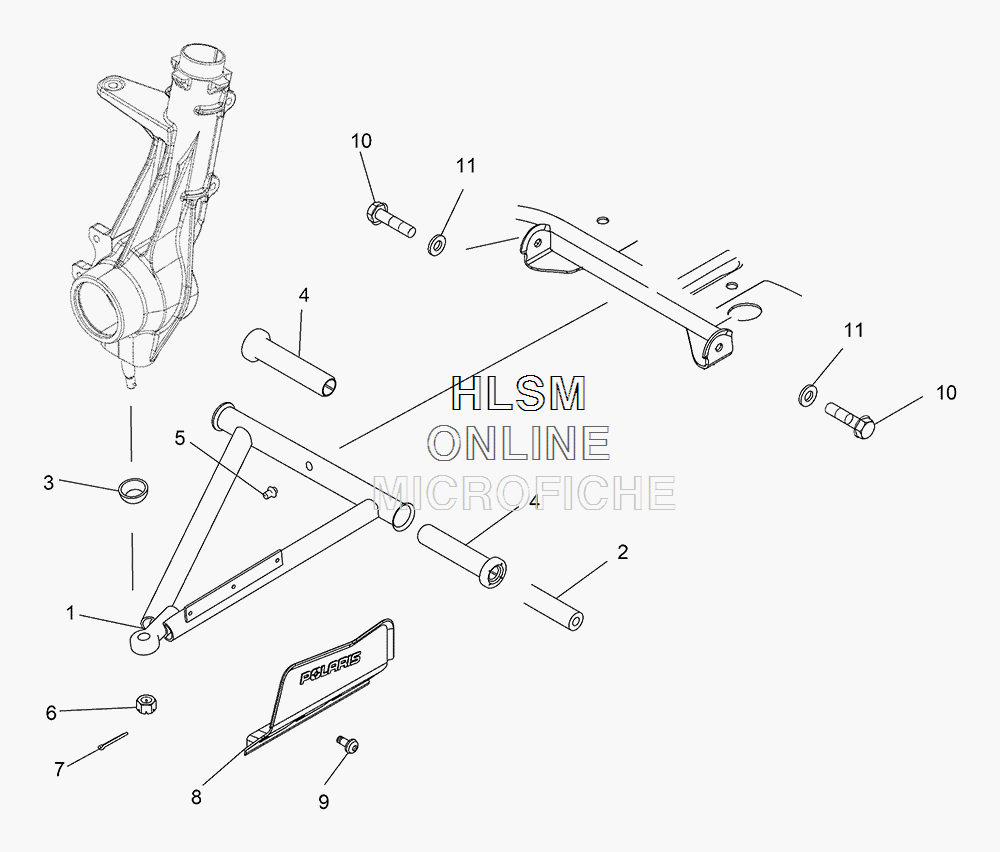

SUSPENSION - A-ARM/STRUT - MOUNTING для Polaris SPORTSMAN® X2 570 EPS (INDY RED) [A16SWE57A7] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1542161-067 WELD-A-FRAME,FLARED,LH, BLACK
    WELD-A-FRAME,FLARED,LH, BLACK
  • 1
    1542162-067 WELD-A-FRAME,FLARED,RH, BLACK
    WELD-A-FRAME,FLARED,RH, BLACK
  • 2
    5139929 SHAFT-A-ARM,C-BORE
    SHAFT-A-ARM,C-BORE
  • 3
    5412658 BOOT, BALL JOINT, GREASELESS
    BOOT, BALL JOINT, GREASELESS
  • 4
    5436973 BUSHING, A-ARM, LONG
    BUSHING, A-ARM, LONG
  • 5
    7080433 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 6
    7542438 NUT, CASTLE
    NUT, CASTLE
  • 7
    7661203 PIN, COTTER
    PIN, COTTER
  • 8
    5435028-070 SHIELD, CV FRONT, BLACK, LH
    SHIELD, CV FRONT, BLACK, LH
  • 8
    5435029-070 SHIELD, CV FRONT, BLACK, RH
    SHIELD, CV FRONT, BLACK, RH
  • 9
    7512084 SCREW
    SCREW
  • 10
    7520340 SCR-3/8-24X1 3/4,HX,GR5,P30,Y
    SCR-3/8-24X1 3/4,HX,GR5,P30,Y
  • 11
    7556153 WASHER-3/8 FW SAE STL THRU-HRD
    WASHER-3/8 FW SAE STL THRU-HRD
