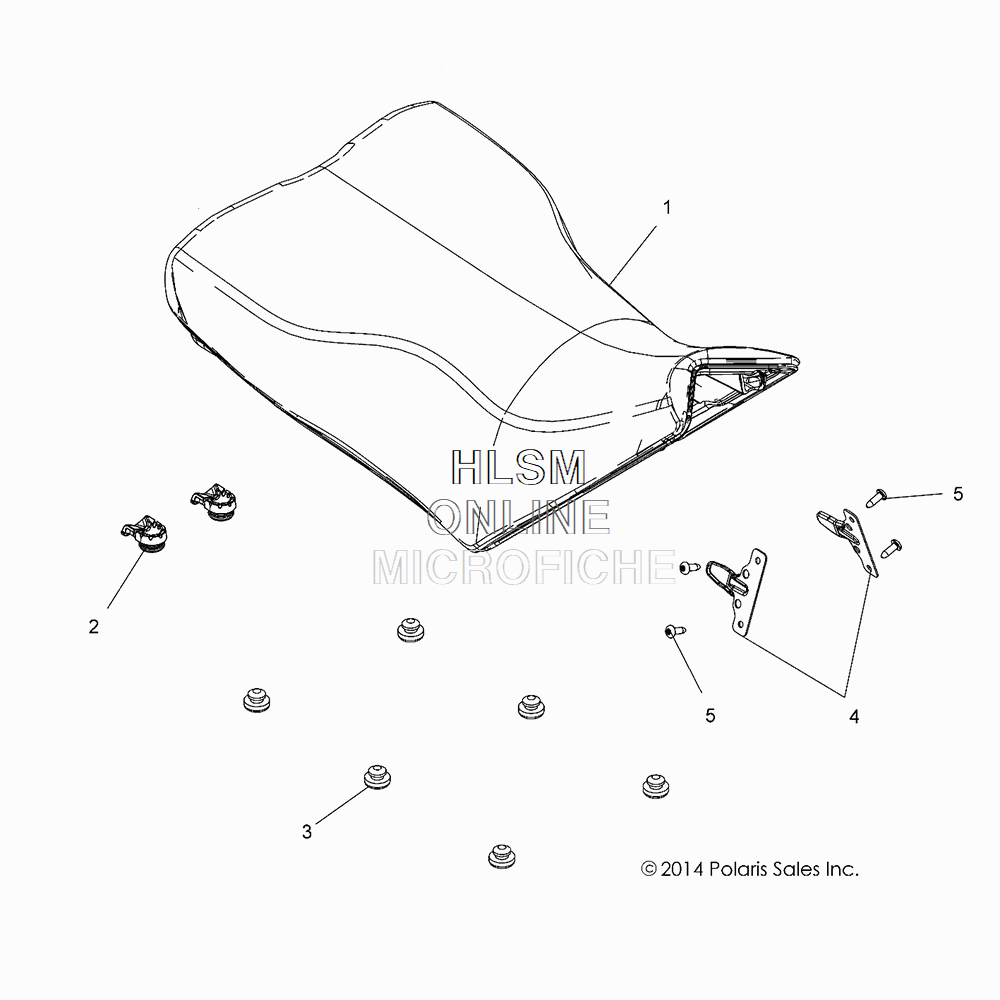

SEAT - PASSENGER - BOTTOM AND BACK для Polaris SPORTSMAN® Touring XP 1000 (BLACK PEARL) [A16SYE95AK] - 2016 года выпуска`
-
№АртикулНазвание
-
12635522 ASM., SEAT, BASE, PASSENGER ((AK))ASM., SEAT, BASE, PASSENGER ((AK))
-
22635524 ASM., SEAT, UPPER, PASSENGER ((AK))ASM., SEAT, UPPER, PASSENGER ((AK))
-
31021269-626 FRAME, BASE, SEAT, JET BLACKFRAME, BASE, SEAT, JET BLACK
-
42686230 ASM., STRAP, SEAT LATCHASM., STRAP, SEAT LATCH
-
55259991 PLATE, LATCH, SEATPLATE, LATCH, SEAT
-
65259990 PLATE, LATCH, SEAT, GUIDEPLATE, LATCH, SEAT, GUIDE
-
75338614-626 TUBE, FRAME, BACK SEAT, JET BLACKTUBE, FRAME, BACK SEAT, JET BLACK
-
85413691 GROMMET, LATCH, SEATGROMMET, LATCH, SEAT
-
95412981 PLUG, COMPARTMENTPLUG, COMPARTMENT
-
105415293 BUMPER, RUBBERBUMPER, RUBBER
-
115415486 SEAL, STORAGE, PASSENGERSEAL, STORAGE, PASSENGER
-
125451665 SEAT, LATCH, BODY, TOPSEAT, LATCH, BODY, TOP
-
135451666 SEAT, LATCH, BODY, BOTTOMSEAT, LATCH, BODY, BOTTOM
-
145451667 HANDLE, SEAT, LATCH, BASEHANDLE, SEAT, LATCH, BASE
-
155451669 MOUNT, SEAT, BASE, FRONTMOUNT, SEAT, BASE, FRONT
-
165451795 INSERT, GRIP, PASSENGERINSERT, GRIP, PASSENGER
-
175910306 PIN, SEAT LATCHPIN, SEAT LATCH
-
187082026 SPRING, SEAT LATCHSPRING, SEAT LATCH
-
197518504 SCREWSCREW
-
207518656 BOLTBOLT
-
217519045 SCREWSCREW
-
227519059 SCREWSCREW
-
237542343 NUT, NYLOCKNUT, NYLOCK
-
247547333 NUT, NYLOCKNUT, NYLOCK
-
257552614 WASHER, LOCKWASHER, LOCK
-
267621224 RIVETRIVET
-
275259998-067 PLATE, MOUNT, PIN, BLACKPLATE, MOUNT, PIN, BLACK
-
287519251 PLUNGER, LATCHPLUNGER, LATCH
-
297547494 NUT, HEX FLANGENUT, HEX FLANGE
-
305451765 BOX, STORAGEBOX, STORAGE
-
312635708 ASM., HANDLE, PASSENGER, OVERMOLDASM., HANDLE, PASSENGER, OVERMOLD
-
325451784 LID, STORAGELID, STORAGE
-
335451794 HANDLE, COVERHANDLE, COVER
-
345451766 COVER, SEAT BACKCOVER, SEAT BACK
-
355260517 PLATE, LATCH, SPACERPLATE, LATCH, SPACER
-
367518936 SCREWSCREW
-
377517867 SCREWSCREW
-
387558301 WASHERWASHER
