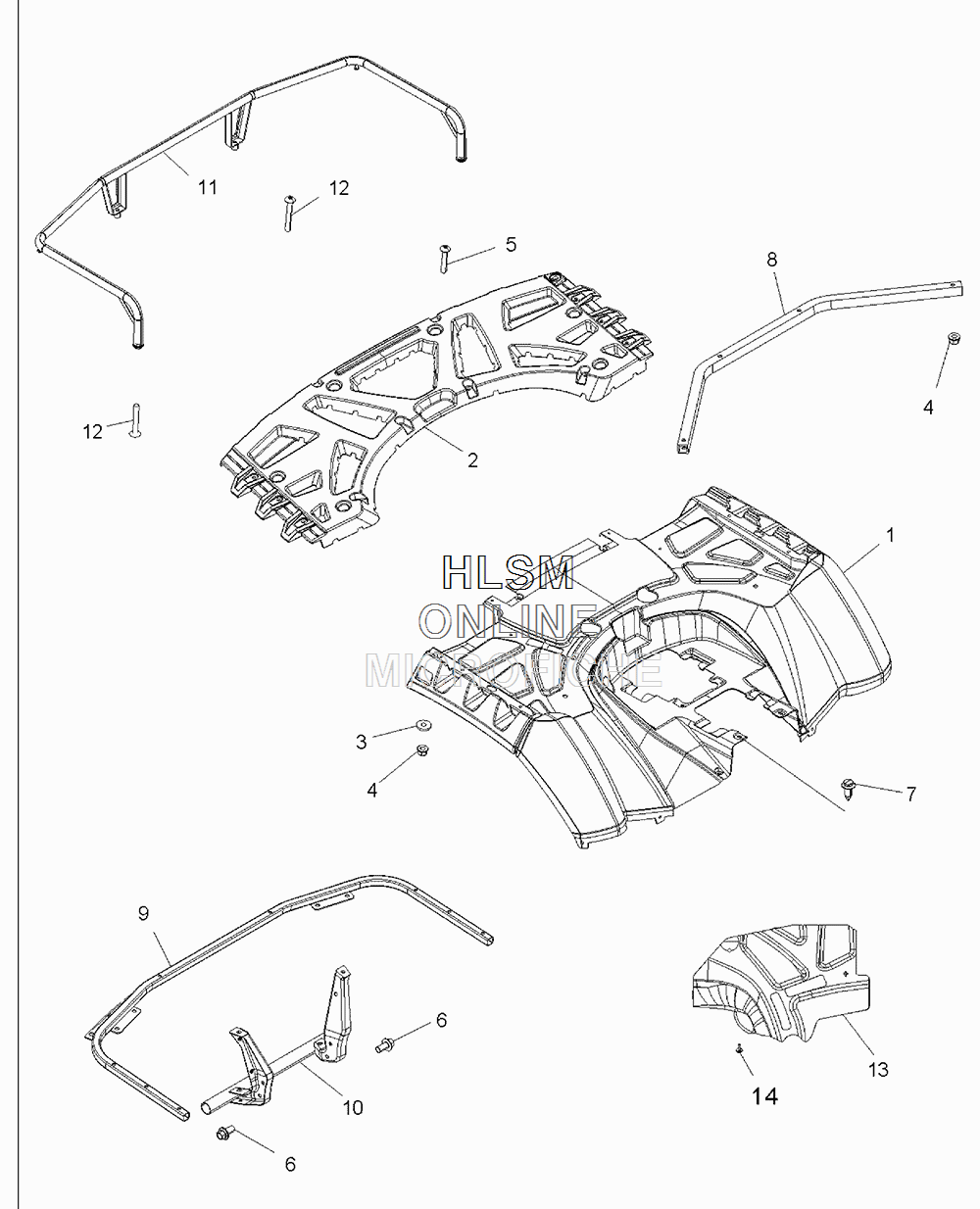

CAB - REAR W/ REAR RACK для Polaris SPORTSMAN® 850 (WHITE LIGHTNING) [A16SXA85A2] - 2016 года выпуска`
-
№АртикулНазвание
-
12634091-599 ASM., CAB, REAR, WHITE LIGHTNING ((A2) (INCL. 13,14))ASM., CAB, REAR, WHITE LIGHTNING ((A2) (INCL. 13,14))
-
22633429-070 ASM., RACK, REAR, BLACK ((INCL. WARNING DECAL))ASM., RACK, REAR, BLACK ((INCL. WARNING DECAL))
-
37558302 WASHERWASHER
-
47547274 NUT, FLANGENUT, FLANGE
-
57519001 SCREWSCREW
-
67518555 BOLTBOLT
-
77661855 RIVETRIVET
-
85335770-329 TUBE, SUPPORT, RACK, REAR, FRONT, BLACKTUBE, SUPPORT, RACK, REAR, FRONT, BLACK
-
91016782-329 BRACKET, RACK, REAR, BLACKBRACKET, RACK, REAR, BLACK
-
101015776-067 SUPPORT, RACK, REAR, BLACKSUPPORT, RACK, REAR, BLACK
-
111016990-418 EXTENDER, RACK, REAREXTENDER, RACK, REAR
-
127519090 SCREWSCREW
-
135254434 SHIELD, HEAT, CAB, REARSHIELD, HEAT, CAB, REAR
-
147670090 CLIP, PLASITC, DARTCLIP, PLASITC, DART
