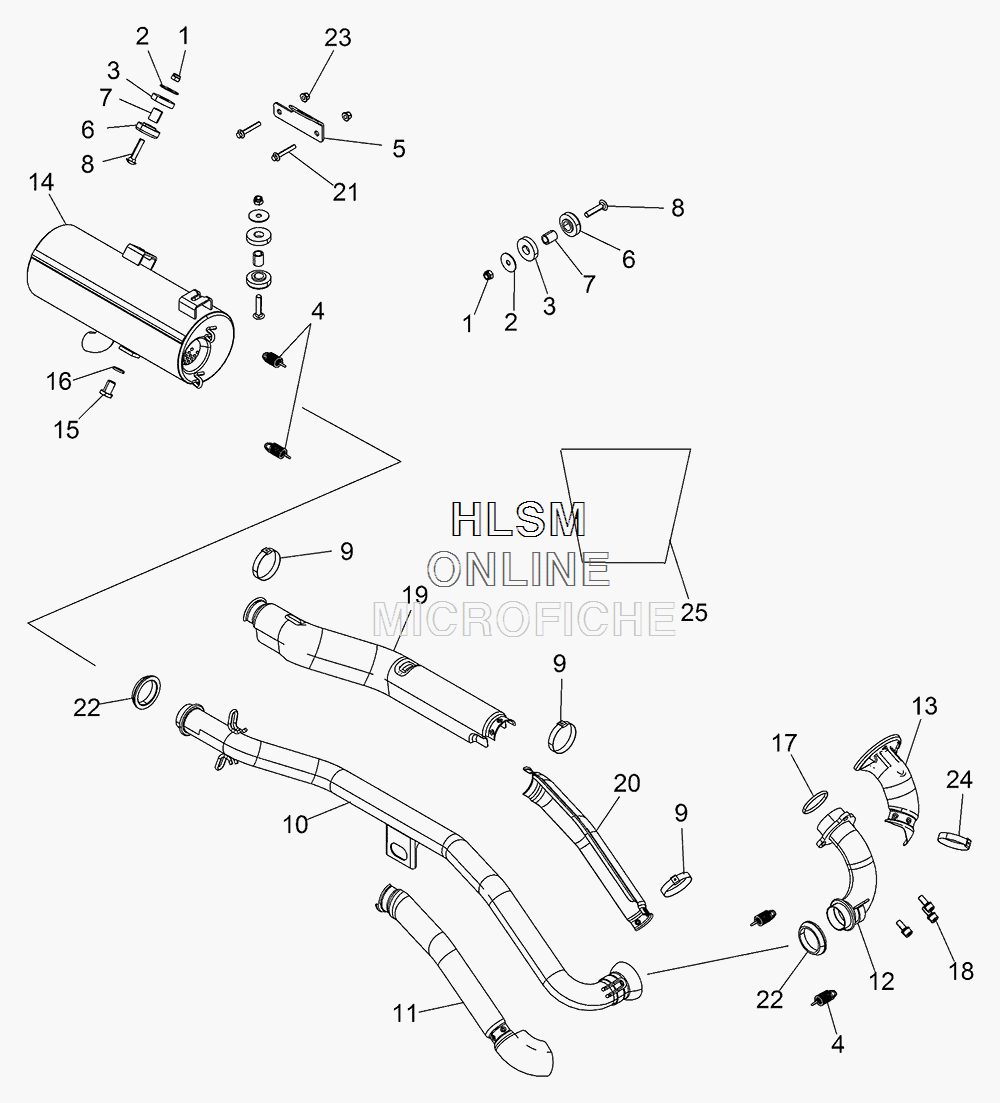

EXHAUST SYSTEM для Polaris SPORTSMAN® 570 EPS (INDY RED) [A16SEE57A7] - 2016 года выпуска`
-
№АртикулНазвание
-
17542324 NUT, NYLOKNUT, NYLOK
-
27555716 WASHERWASHER
-
35414945 WASHER, RUBBERWASHER, RUBBER
-
47041804 SPRINGSPRING
-
55241663 BRACKET, SILENCER, FRAMEBRACKET, SILENCER, FRAME
-
65414946 DAMPENER, VIBRATIONDAMPENER, VIBRATION
-
75010192 BUSHINGBUSHING
-
87515316 BOLTBOLT
-
97081156 CLAMP-HEAT SHIELD,EXHAUSTCLAMP-HEAT SHIELD,EXHAUST
-
101262705-489 WELD-EXHAUST PIPE,PWDR BLACKWELD-EXHAUST PIPE,PWDR BLACK
-
115260801 SHIELD-HEAT,EXHAUST,MIDSHIELD-HEAT,EXHAUST,MID
-
121262376 MANIFOLDMANIFOLD
-
135260800 SHIELD-HEAT,EXHAUST HEADPIPESHIELD-HEAT,EXHAUST HEADPIPE
-
141262445-489 SILENCER,EXHAUST, POWDER BLACKSILENCER,EXHAUST, POWDER BLACK
-
157512666 BOLTBOLT
-
167556230 WASHER, CLEAN OUTWASHER, CLEAN OUT
-
175253989 GASKET, EXHAUST SEALINGGASKET, EXHAUST SEALING
-
187517555 SCREWSCREW
-
195260802 SHIELD-HEAT,EXHAUST,REARSHIELD-HEAT,EXHAUST,REAR
-
205260808 SHIELD-HEAT,EXHAUST MID,INNERSHIELD-HEAT,EXHAUST MID,INNER
-
217518341 BOLTBOLT
-
225256385 SEAL, EXHAUSTSEAL, EXHAUST
-
237542343 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
247082132 CLAMPCLAMP
-
255814363 FOIL, FRAME, SUPPORTFOIL, FRAME, SUPPORT
