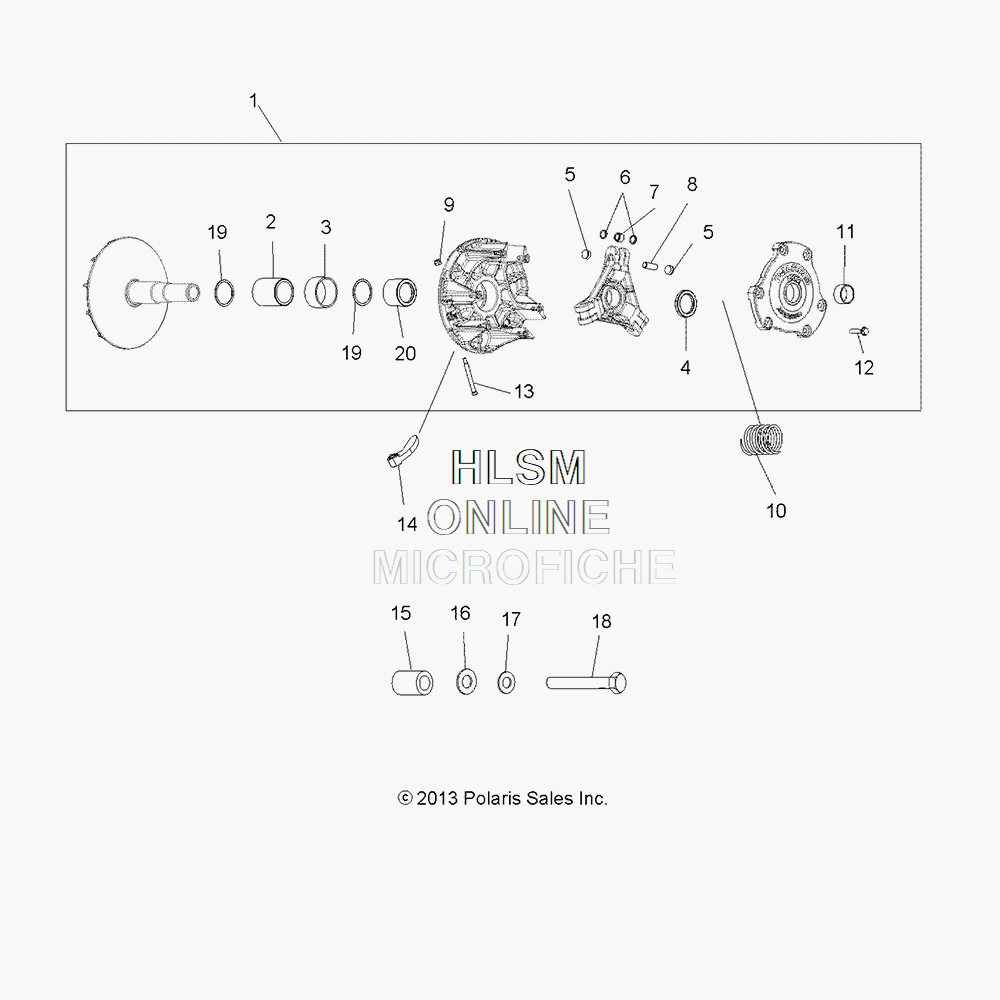

CLUTCH - SECONDARY для Polaris SPORTSMAN® 570 EFI UTE HD (BLUE FIRE METALLIC) [A16SUH57N6] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1323296 ASM-CLUTCH,DRIVEN,BOSS,TIED
    ASM-CLUTCH,DRIVEN,BOSS,TIED
  • 2
    3211113 BELT-DRIVE,EBS
    BELT-DRIVE,EBS
  • 3
    7556936 WASHER-.400X1.75X.188FL-Y
    WASHER-.400X1.75X.188FL-Y
  • 4
    7519210 SCR-HXFL-M10X1.25X60,ZOD
    SCR-HXFL-M10X1.25X60,ZOD
  • 5
    7556580 WASHER-0.75X.400X.03,FL-Y
    WASHER-0.75X.400X.03,FL-Y
  • 6
    3235859 RING, RETAINING
    RING, RETAINING
  • 7
    3235860 WASHER, OFFSET
    WASHER, OFFSET
  • 8
    3235861 SHIM, 2.040 OD X 1.63 ID
    SHIM, 2.040 OD X 1.63 ID
  • 9
    3234201 PIN, ROLLER
    PIN, ROLLER
  • 10
    3514926 PUCK, SQUARE TIED
    PUCK, SQUARE TIED
  • 11
    3234202 PIN, SLOTTED
    PIN, SLOTTED
  • 12
    7044509 SPRING
    SPRING
  • 13
    3235784 CAM
    CAM
  • 14
    7710523 RING, E
    RING, E
  • 15
    7556226 WASHER
    WASHER
  • 16
    3514929 ROLLER
    ROLLER
  • 17
    3235862 SPIDER
    SPIDER
  • 18
    3234754 SCREW
    SCREW
