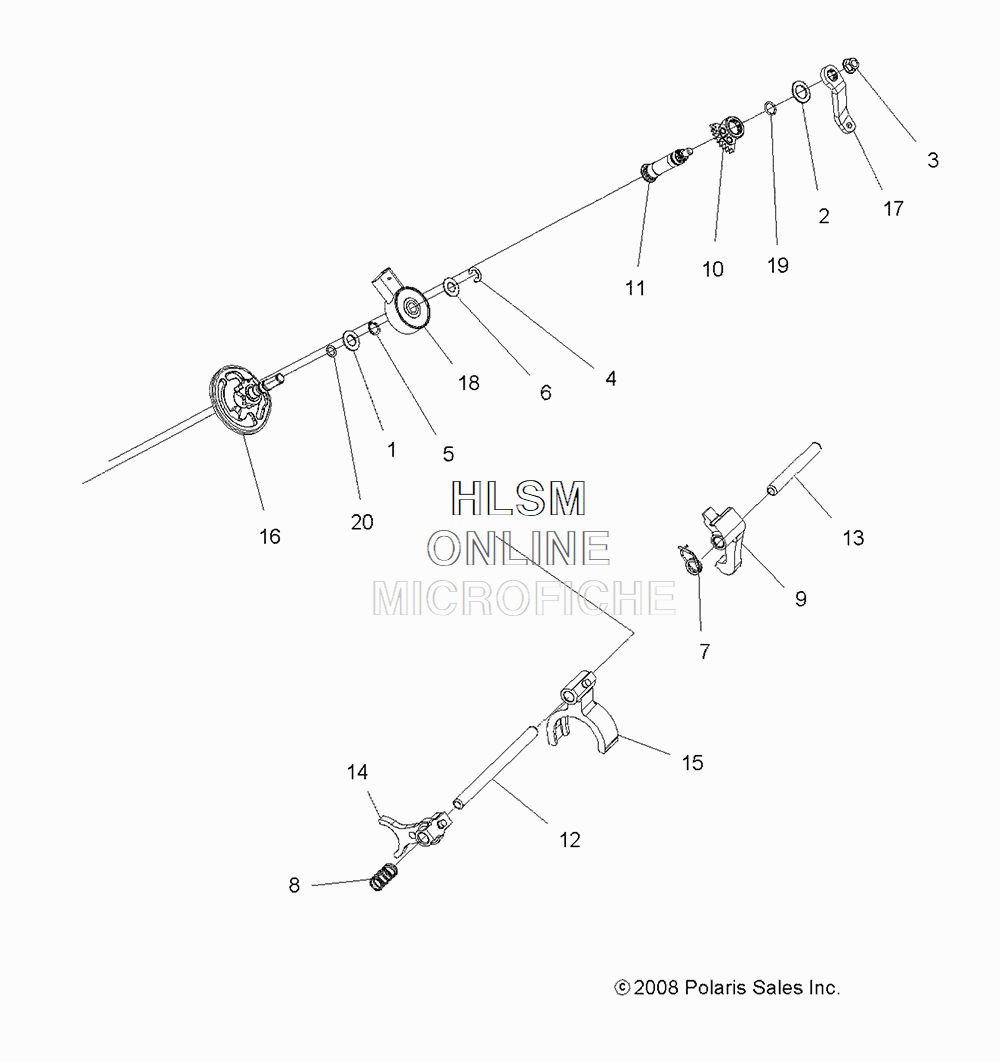

GEARCASE - MAIN - SHIFT FORKS для Polaris SCRAMBLER® 850 (WHITE LIGHTNING) [A16SVA85A2] - 2016 года выпуска`
-
№АртикулНазвание
-
&NBSP1332848 ASM., TRANSMISSION ((INCL. ALL))ASM., TRANSMISSION ((INCL. ALL))
-
13234636 WASHER, THRUSTWASHER, THRUST
-
23234637 WASHER, THRUSTWASHER, THRUST
-
33233961 NUT, LOCKNUT, LOCK
-
43233834 RING, SNAPRING, SNAP
-
53234639 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
63234642 WASHER, THRUSTWASHER, THRUST
-
73234787 SPRING, PARK PAWL, TORSIONSPRING, PARK PAWL, TORSION
-
83234687 SPRING, COMPRESSIONSPRING, COMPRESSION
-
93234692 PAWL, PARKPAWL, PARK
-
103234694 GEAR, 38TGEAR, 38T
-
113234712 SHAFT, SHIFTSHAFT, SHIFT
-
123234714 RAIL, SHIFT, SHAFTRAIL, SHIFT, SHAFT
-
133234716 RAIL, PARK SHAFTRAIL, PARK SHAFT
-
143235342 FORK, SHIFTFORK, SHIFT
-
153234766 FORK, SHIFTFORK, SHIFT
-
163234767 ASM., SWITCH SHAFTASM., SWITCH SHAFT
-
173234724 BELLCRANK, 15TBELLCRANK, 15T
-
183233835 SWITCH, ROTARYSWITCH, ROTARY
-
193233828 O-RINGO-RING
-
203234730 O-RINGO-RING
