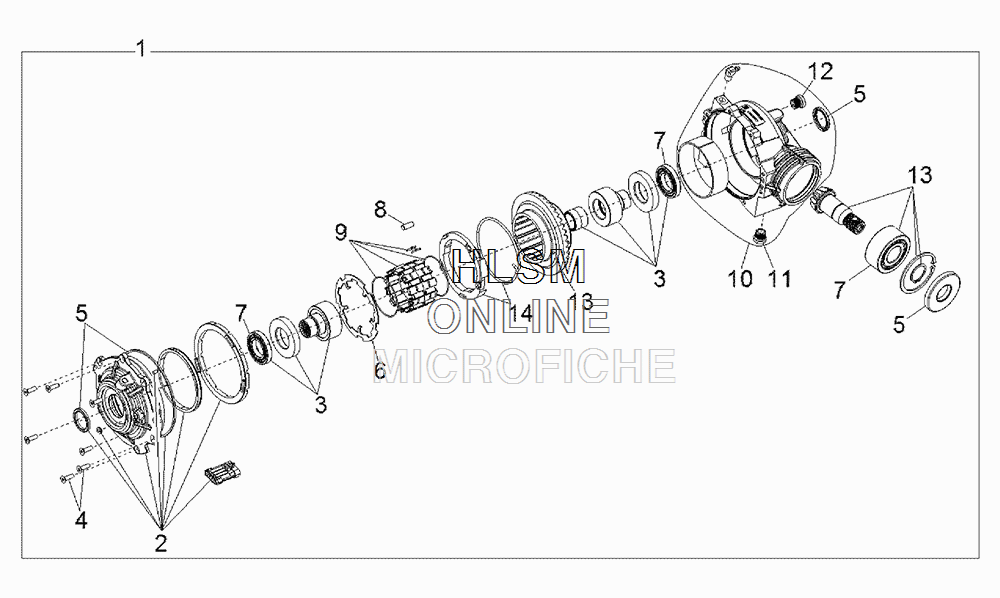

FRONT GEARCASE INTERNALS для Polaris RZR S 900 WHITE LIGHTING [Z16VBA87L2] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1333104 ASM., FRONT GEARCASE (INCL. 2-13)
    ASM., FRONT GEARCASE (INCL. 2-13)
  • 2
    3235168 ASM., COVER OUTPUT (INCL. O-RING, DOWEL PIN, OIL SEAL, COVER, CONNECTORASM., BACKLASH SPACER, 4WD COIL, GROMMET, HEAT SHRINK TUBING)
    ASM., COVER OUTPUT (INCL. O-RING, DOWEL PIN, OIL SEAL, COVER, CONNECTORASM., BACKLASH SPACER, 4WD COIL, GROMMET, HEAT SHRINK TUBING)
  • 3
    3235169 KIT, HUB ASSY (INCL. BUSHING, HUB SUB. ASM., NYLON SPACER)
    KIT, HUB ASSY (INCL. BUSHING, HUB SUB. ASM., NYLON SPACER)
  • 4
    3235170 KIT, FASTENER (INCL. ALL FASTENERS)
    KIT, FASTENER (INCL. ALL FASTENERS)
  • 5
    3235171 KIT, SEAL REPAIR (INCL. ALL SEALS)
    KIT, SEAL REPAIR (INCL. ALL SEALS)
  • 6
    3234407 PLATE, ARMATURE
    PLATE, ARMATURE
  • 7
    3235174 BEARING, PINION (INCL. ALL BEARINGS)
    BEARING, PINION (INCL. ALL BEARINGS)
  • 8
    3234393 KIT, ROLLER (INCL. COMPLETE SET OF ROLLER)
    KIT, ROLLER (INCL. COMPLETE SET OF ROLLER)
  • 9
    3235261 ASM., ROLL CAGE, ZN (INCL. ROLL CAGE, SPRING WIRE FOR H-CLIP)
    ASM., ROLL CAGE, ZN (INCL. ROLL CAGE, SPRING WIRE FOR H-CLIP)
  • 9
    3235262 ASM., ROLL CAGE, ALUM (HIGH PERFORMANCE ACCESSORY W/CLIP SET)
    ASM., ROLL CAGE, ALUM (HIGH PERFORMANCE ACCESSORY W/CLIP SET)
  • 10
    3235440 KIT, GEARCASE ASM. (INCL. HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG, DRAIN PLUG)
    KIT, GEARCASE ASM. (INCL. HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG, DRAIN PLUG)
  • 11
    2203738 PLUG, DRAIN
    PLUG, DRAIN
  • 12
    2203739 PLUG, FILL
    PLUG, FILL
  • 13
    3235441 KIT, RING AND PINION (INCL. RING GEAR ASM., PINION, BEARING, INTERNAL RING, SHAFT RING)
    KIT, RING AND PINION (INCL. RING GEAR ASM., PINION, BEARING, INTERNAL RING, SHAFT RING)
  • 14
    3234908 KIT, SPRING (INCL. TORSION SPRING AND SPRINT RETAINER ASM.)
    KIT, SPRING (INCL. TORSION SPRING AND SPRINT RETAINER ASM.)
