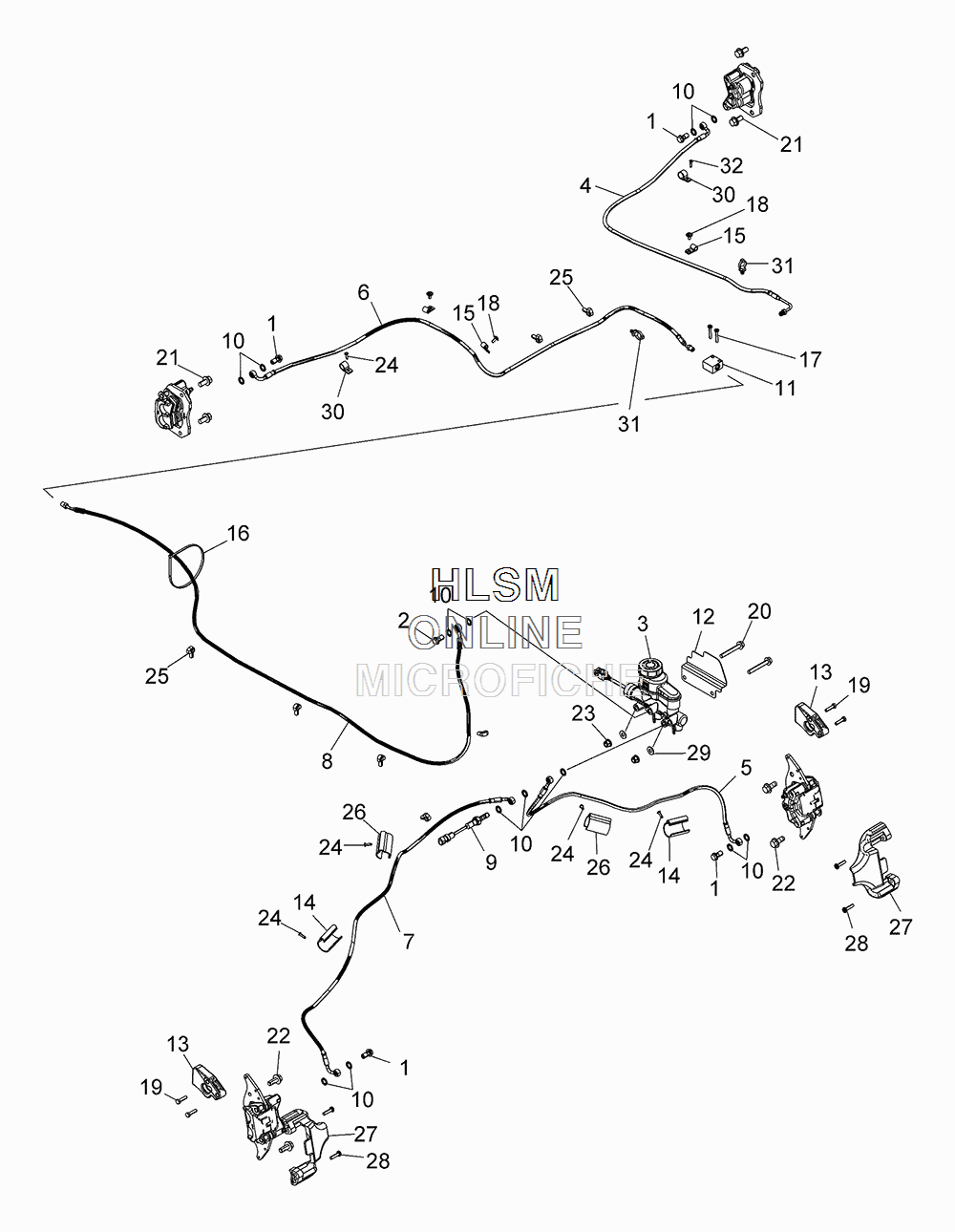

MASTER CYLINDER AND BRAKE LINES для Polaris RZR S 900 EPS BLUE FIRE [Z16VBE87LB] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1910499 BOLT, BANJO
    BOLT, BANJO
  • 2
    1910958 BOLT, BANJO
    BOLT, BANJO
  • 3
    1911982 ASM., TANDEM MASTER CYLINDER
    ASM., TANDEM MASTER CYLINDER
  • 4
    1912258 LINE, BRAKE, REAR LEFT
    LINE, BRAKE, REAR LEFT
  • 5
    1912259 LINE, BRAKE, FRONT LEFT
    LINE, BRAKE, FRONT LEFT
  • 6
    1912257 LINE, BRAKE, REAR RIGHT
    LINE, BRAKE, REAR RIGHT
  • 7
    1912260 LINE, BRAKE, FRONT RIGHT
    LINE, BRAKE, FRONT RIGHT
  • 8
    1912252 LINE, BRAKE, MCT
    LINE, BRAKE, MCT
  • 9
    4014225 SWITCH, BRAKE, DOUBLE, SEALED
    SWITCH, BRAKE, DOUBLE, SEALED
  • 10
    5413212 SEAL
    SEAL
  • 11
    7052293 FITTING, TEE, BRAKE
    FITTING, TEE, BRAKE
  • 12
    5259049 SHIELD, MASTER CYLINDER
    SHIELD, MASTER CYLINDER
  • 13
    5438948 SCRAPER, BRAKE, FRONT
    SCRAPER, BRAKE, FRONT
  • 14
    5451488 CLIP, BRAKE LINE, OUTER
    CLIP, BRAKE LINE, OUTER
  • 15
    7080683 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    7080761 CABLE TIE, 14''
    CABLE TIE, 14''
  • 17
    7512025 SCREW
    SCREW
  • 18
    7512084 SCREW
    SCREW
  • 19
    7516823 SCREW
    SCREW
  • 20
    7519298 SCREW
    SCREW
  • 21
    7518558 BOLT, HEX FLANGE
    BOLT, HEX FLANGE
  • 22
    7518760 BOLT, HEX FLANGE W/PATCH
    BOLT, HEX FLANGE W/PATCH
  • 23
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 24
    7621323 RIVET
    RIVET
  • 25
    7670102 CLIP
    CLIP
  • 26
    5451487 CLIP, BRAKE LINE, INNER
    CLIP, BRAKE LINE, INNER
  • 27
    5451375-070 SHIELD, CV, FRONT, BLACK
    SHIELD, CV, FRONT, BLACK
  • 28
    7519248 SCREW
    SCREW
  • 29
    7555954 WASHER
    WASHER
  • 30
    7080880 CLAMP, CABLE
    CLAMP, CABLE
  • 31
    7081496 CLIP, ROUTING
    CLIP, ROUTING
  • 32
    7621472 RIVET
    RIVET
