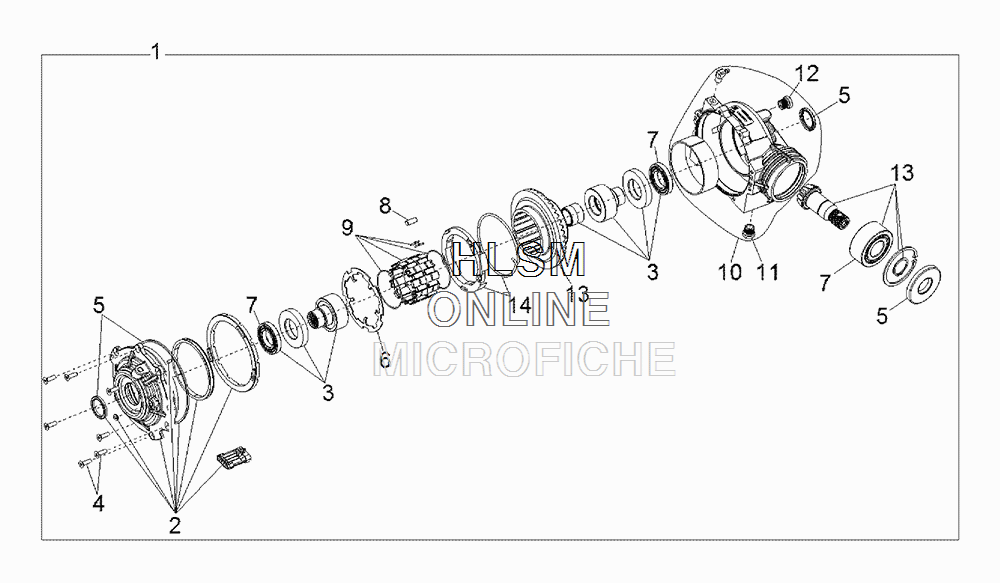

GEARCASE - INTERNAL COMPONENTS - FRONT для Polaris RZR 900 WHITE LIGHTNING [Z16VAA87A2] - 2016 года выпуска

№

Артикул

Название
1

1333104 ASM., FRONT GEARCASE (INCL. 2-13)

ASM., FRONT GEARCASE (INCL. 2-13)
2

3235168 ASM., COVER OUTPUT (INCL. OPRING, DOWEL PIN, OIL SEAL, COVER, CONNECTOR ASM., BACKLASH SPACER, 4WD COIL, GROMMET, HEAT SHRINK TUBING)

ASM., COVER OUTPUT (INCL. OPRING, DOWEL PIN, OIL SEAL, COVER, CONNECTOR ASM., BACKLASH SPACER, 4WD COIL, GROMMET, HEAT SHRINK TUBING)
3

3235169 KIT, HUB ASSEMBLY (INCL. BUSHING, HUB SUB. ASM., NYLON SPACER)

KIT, HUB ASSEMBLY (INCL. BUSHING, HUB SUB. ASM., NYLON SPACER)
4

3235170 KIT, FASTENER (INCL. ALL FASTNERS)

KIT, FASTENER (INCL. ALL FASTNERS)
5

3235171 KIT, SEAL REPAIR (INCL. ALL SEALS)

KIT, SEAL REPAIR (INCL. ALL SEALS)
6

3234407 PLATE, ARMATURE

PLATE, ARMATURE
7

3235174 BEARING, PINION (INCL. ALL BEARINGS)

BEARING, PINION (INCL. ALL BEARINGS)
8

3234393 KIT, ROLLER (INCL. COMPLETE SET OF ROLLERS)

KIT, ROLLER (INCL. COMPLETE SET OF ROLLERS)
9

3235262 ASM., ROLL CAGE, ALUMINUM (HIGH PERFORMANCE ACCESSORY W/CLIP SET)

ASM., ROLL CAGE, ALUMINUM (HIGH PERFORMANCE ACCESSORY W/CLIP SET)
9

3235261 ASM., ROLL CAGE, ZN (INCL. ROLL CAGE, SPRING WIRE FOR H-CLIP)

ASM., ROLL CAGE, ZN (INCL. ROLL CAGE, SPRING WIRE FOR H-CLIP)
10

3235440 KIT, GEARCASE ASM. (INCL. HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG, DRAIN PLUG)

KIT, GEARCASE ASM. (INCL. HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG, DRAIN PLUG)
11

2203738 PLUG, DRAIN

PLUG, DRAIN
12

2203739 PLUG, FILL

PLUG, FILL
13

3235441 KIT, RING AND PINION (INCL. RING GEAR ASM., PINION, BEARING, INTERNAL RING, SHAFT RING)

KIT, RING AND PINION (INCL. RING GEAR ASM., PINION, BEARING, INTERNAL RING, SHAFT RING)
14

3234908 KIT, SPRING (INCL. TORSION SPRING, SPRINT RETAINER ASM.)

KIT, SPRING (INCL. TORSION SPRING, SPRINT RETAINER ASM.)
