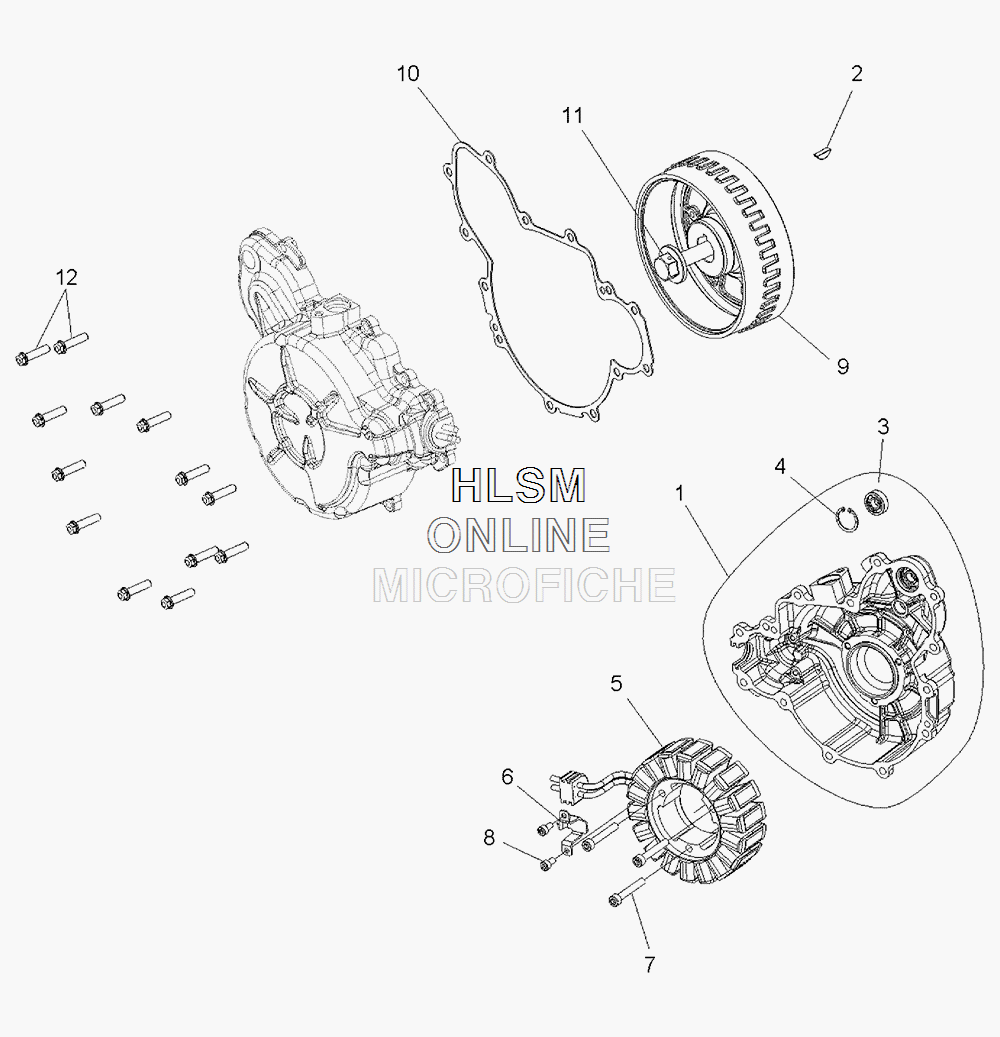

IGNITION SYSTEM - FLYWHEEL для Polaris RZR 4 900 EPS HAVASU RED PEARL [Z16VCE87AR] - 2016 года выпуска
-
№АртикулНазвание
-
11204518 ASM., IGNITION COVER, STARTER BEARING (INCL. 3,4)ASM., IGNITION COVER, STARTER BEARING (INCL. 3,4)
-
27721122 KEY, WOODRUFFKEY, WOODRUFF
-
33514717 BEARING, BALLBEARING, BALL
-
47710654 RING, SNAPRING, SNAP
-
54014406 STATORSTATOR
-
65255473 BRACKET, RETAINER, WIREBRACKET, RETAINER, WIRE
-
77510005 SCREWSCREW
-
87517847 SCREWSCREW
-
94014404 FLYWHEELFLYWHEEL
-
105814160 GASKET, IGNITION COVERGASKET, IGNITION COVER
-
117519170 SCREWSCREW
-
127519297 SCREWSCREW
