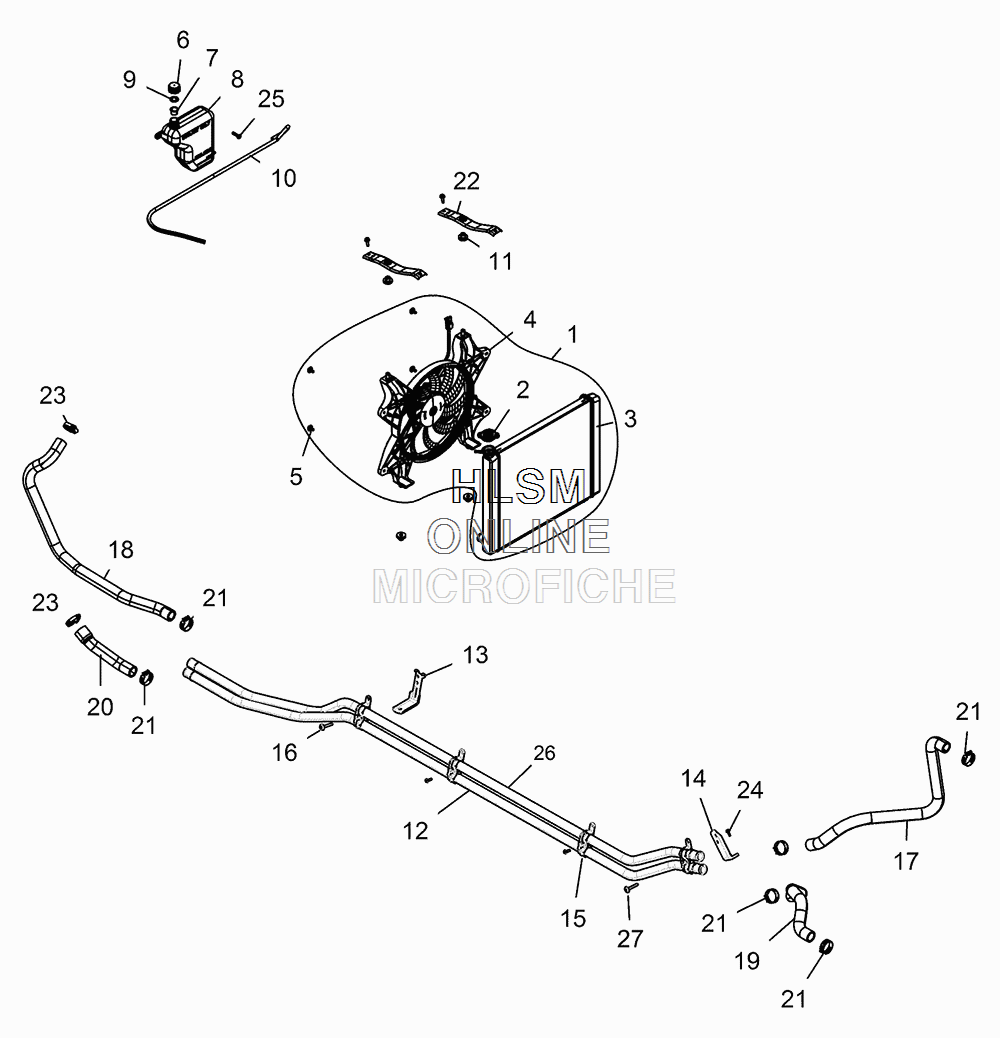

COOLING SYSTEM для Polaris RZR 4 900 EPS BLUE FIRE [Z16VCE87AB] - 2016 года выпуска`
-
№АртикулНазвание
-
11240712 ASM., RADIATOR (INCL. 2-5)ASM., RADIATOR (INCL. 2-5)
-
21240694 CAPCAP
-
31240745 ASM., RADIATOR, COREASM., RADIATOR, CORE
-
42412447 FAN, ASM.FAN, ASM.
-
57519585 BOLTBOLT
-
65430743 CAP, OVER FLOW BOTTLE, DRILLEDCAP, OVER FLOW BOTTLE, DRILLED
-
75433774 PLUG, CAPPLUG, CAP
-
85439202 TANK, SURGETANK, SURGE
-
95810279 GASKET, OVERFLOW CAPGASKET, OVERFLOW CAP
-
108450003-1525 LINE, FUELLINE, FUEL
-
117052028 GROMMET, FLANGEDGROMMET, FLANGED
-
125139911 TUBE, COOLANTTUBE, COOLANT
-
135259433-329 BRACKET, COOLANT TUBE, BLACKBRACKET, COOLANT TUBE, BLACK
-
145260766-329 BRACKET, COOLANT TUBE, BLACKBRACKET, COOLANT TUBE, BLACK
-
155451221 BRACKET, COOLANT TUBEBRACKET, COOLANT TUBE
-
167519001 SCREWSCREW
-
175414528 HOSE, UPPER, RADIATORHOSE, UPPER, RADIATOR
-
185415451 HOSE, ENGINE OUTLET, REARHOSE, ENGINE OUTLET, REAR
-
195414532 HOSE, LOWER, RADIATOR, LONGHOSE, LOWER, RADIATOR, LONG
-
205414533 HOSE, ENGINE INLET, REARHOSE, ENGINE INLET, REAR
-
217080844 SPRINGBAND, CLAMPSPRINGBAND, CLAMP
-
225256879-329 BRACKET, UPPER RADIATOR MOUNT, BLACKBRACKET, UPPER RADIATOR MOUNT, BLACK
-
237081192 CLAMP, HOSECLAMP, HOSE
-
247518529 SCREWSCREW
-
257518158 SCREWSCREW
-
265139910 TUBE, COOLANTTUBE, COOLANT
-
277512026 SCREWSCREW
